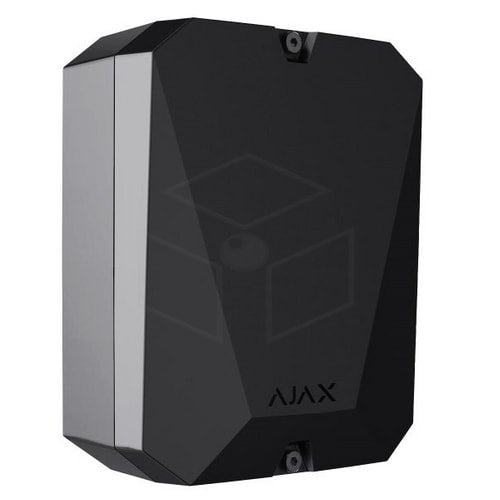

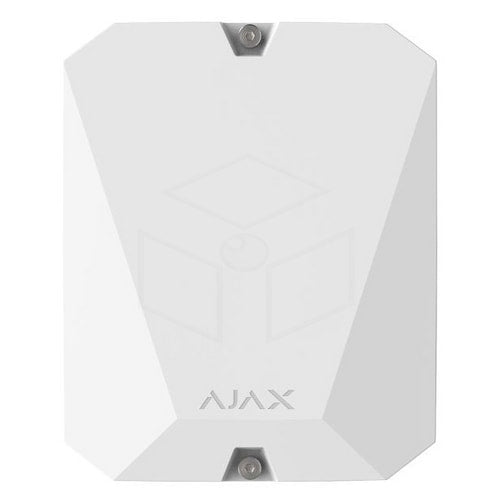

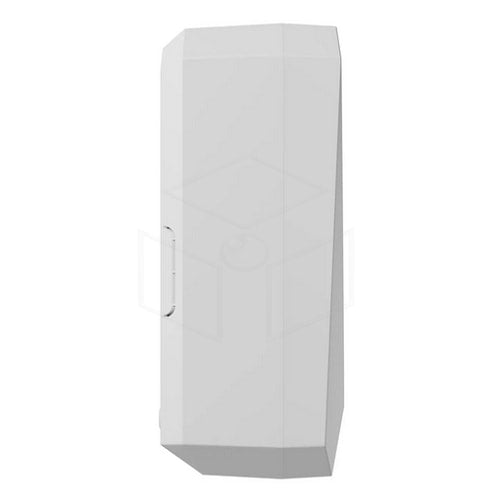

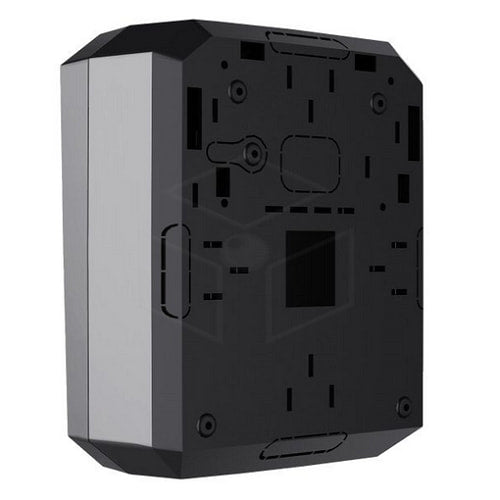

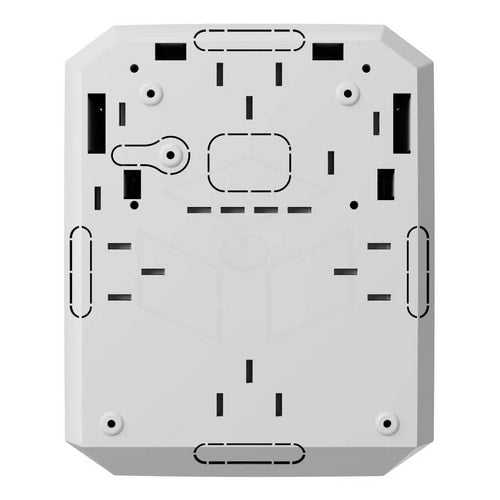

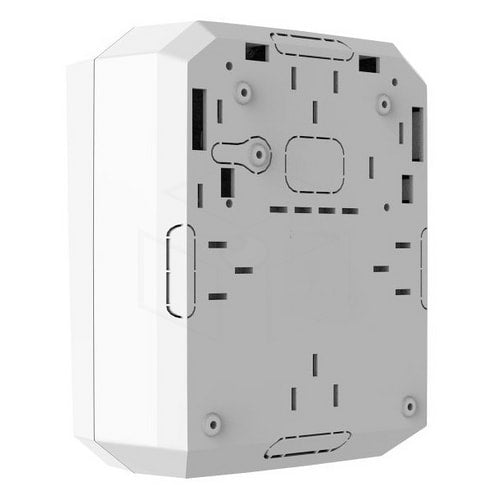

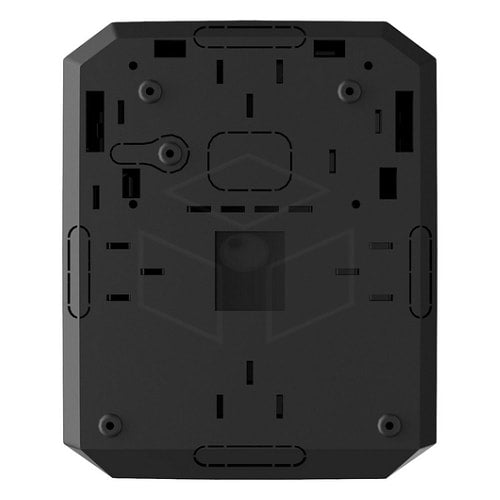

Ajax integration module with 18 wired zones 3EOL
Product Description
The new version supports 2EOL and 3EOL connections, more alarm types and a wider range of EOL resistance value.

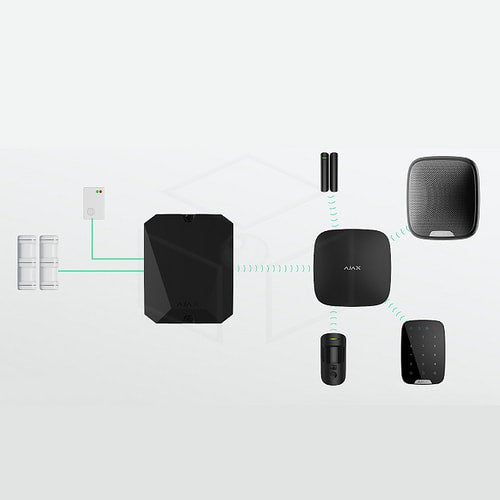

MultiTransmitter is designed to integrate wired detectors and third-party devices into an Ajax security system. The integration module receives information about alarms, events and faults from detectors and devices via a wired connection. Then, the integration module transmits the event to the hub using the Jeweller wireless communication protocol. The hub sends notifications to users and the Central Monitoring Station (CMS) of the security company.
MultiTransmitter can be used to connect alarm and medical alert buttons, indoor and outdoor motion detectors, as well as detectors that monitor opening, vibration, glass break, fire, gas and water leakage, etc.
The device type is indicated in the zone settings to which the wired detector or device is connected. The selected type determines the text of notifications about alarms and events from the connected device, as well as event codes sent to the CMS.

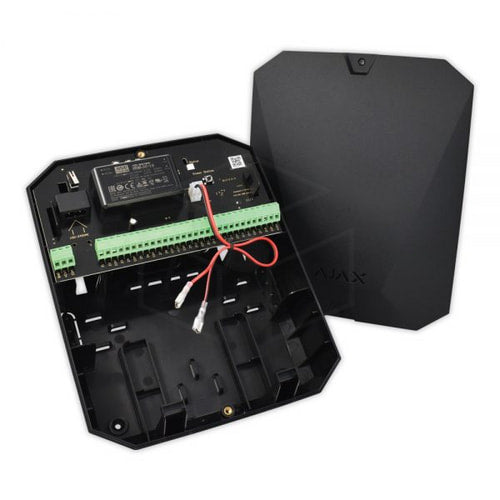

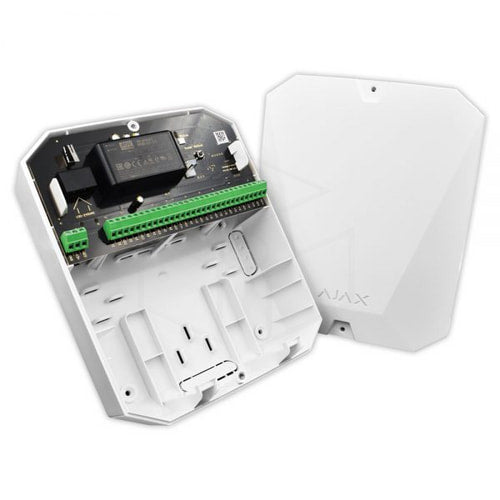

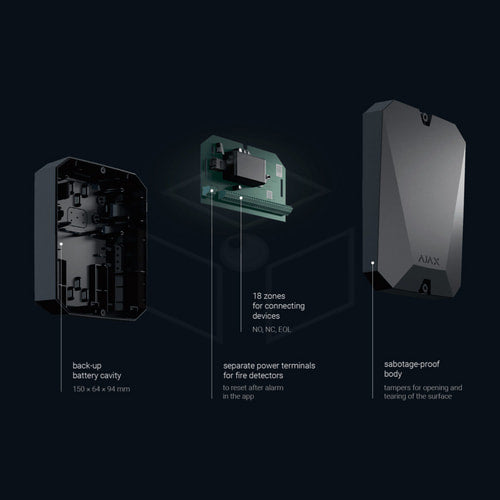

MultiTransmitter has 18 wired zones. It is recommended to connect one device to one zone. The number of connected devices depends on their current consumption. The maximum consumption of all devices or detectors connected to all zones is 1 A.
The integration module has four 10.5-15 V⎓ power lines: one for fire detectors and three for other devices.
Supported connection types:
- NO (normally open).
- NC (normally closed).
- EOL (one resistor connection).
- 2EOL (connection with two resistors).
- 3EOL (three resistor connection).
* This is a corded Fibra product line device. To purchase, install and manage this type of devices, you must be an accredited partner, undergo training and gain access.
Specifications
| Compatibility | |
| Compatible hub models | All Ajax hubs |
| The Hub control panel does not support 2EOL and 3EOL connection types. Other hub models require OS Malevich firmware version 2.13 or later to support such connection types. | |
| Compatible range extenders | All Ajax radio signal range extenders |
| Jeweler communication technology | |
| Patented wireless communication technology to transmit alarms and events. | •Two-way communication. |
| • Advanced anti-sabotage. | |
| • Block encryption with a dynamic key. | |
| • Direct notifications. | |
| • Remote configuration via the Ajax apps. | |
| • Two-way communication. | |
| Frequency bands Depending on the sales region |
866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz – 921.0 – 922.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio signal modulation | GFSK |
| Radio communication range Between an integration module and a hub/range extender in an open space. | up to 2,000 m |
| Encrypted communication | All stored and transmitted data is protected by block encryption with a dynamic key. |
| Radio frequency hopping | To prevent interception and jamming. |
| Connection to wired devices | |
| Number of zones | 18 wired zones |
| Multiple devices can be connected to one zone. The number of connected devices depends on their power consumption. | |
| Connection type |
NC, NO, EOL MultiTransmitter with firmware version lower than 2.13 |
|
NC, NO, EOL, 2EOL, 3EOL MultiTransmitter with firmware version 2.13 and later. The Hub control panel does not support 2EOL and 3EOL connection types. Other hub models require OS Malevich firmware version 2.13 or later to support such connection types. |
|
|
EOL resistance from 1 kΩ to 7.5 kΩ with an increment of 100 Ω MultiTransmitter with firmware version lower than 2.13. EOL resistance is automatically measured in Ajax PRO apps. from 1 kΩ to 15 kΩ for each resistor, up to 30 kΩ total resistance MultiTransmitter with firmware version 2.13 and higher. Resistance is automatically measured for each EOL resistance in Ajax PRO apps. |
|
| Cable length | up to 400 m When using a signal cable with a 0.22 mm² copper-clad aluminum conductor. |
| Mode of operation | pulse, bistable Adjusted by a PRO or user with administrator rights in the Ajax app. |
| Event type | 9 types of events for each wired zone •Impact •Fire •Medical assistance •Panic button •Gas alarm •Sabotage alarm •Fault Leakage •Habit Modified by a PRO or user with administrator rights in the Ajax app |
| Recommendations | The device is powered by the 110-240 V~ mains and is designed for indoor use only. |
| Anti-sabotage protection | |
| Sabotage alarm | Two tampers to detect the opening of the MultiTransmitter housing and warn of detachment from the wall. |
| Protection against spoofing | with the authentication integration module |
| Communication loss detection | within 36 seconds Between a hub or range extender and MultiTransmitter. The detection time depends on the settings of the Jeweler or Jeweler/Fibra. |
| Instant detection of wired connection loss, short circuits and faults | when using EOL/2EOL/3EOL connection type Depending on the connection type. |
| Power supply | |
| MultiTransmitter power supply | 100–240 V~, 50/60 Hz |
| MultiTransmitter backup power supply | 12 V⎓, up to 7 Ah capacity with a full charge cycle of up to 30 hours The backup battery is not included in the set. |
| Power supply to connected devices | 10.5–15 V⎓, up to 1 A of total maximum current consumption Four high-voltage lines powered by MultiTransmitter: one for fire detectors and three for other devices. |
| Housing | |
| Dimensions | 192 × 238 × 100 mm |
| Weight | 805 gr |
| Operating temperature range | from −10°C to +40°C |
| Operating humidity | up to 75% |
| Protection class | Ip40 |
| To colour | White / Black |
