Product description
Keep all recordings from Ajax video devices and third-party cameras in view with Ajax network video recorders. The NVR H-series offers an even more flexible video surveillance experience – comfortably from your desk or on the go. Thanks to the HDMI output, NVRs can display live and archived footage directly on a connected screen, even without an internet connection on-site. Built with proprietary technologies and industry best practices, these devices guarantee a smooth and secure video management experience at all times.
More features
Video surveillance – exactly as intended

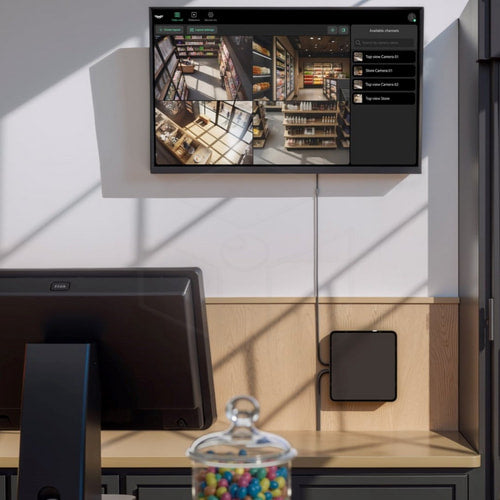

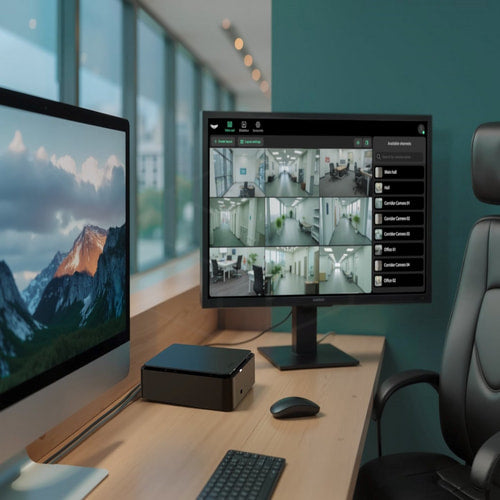

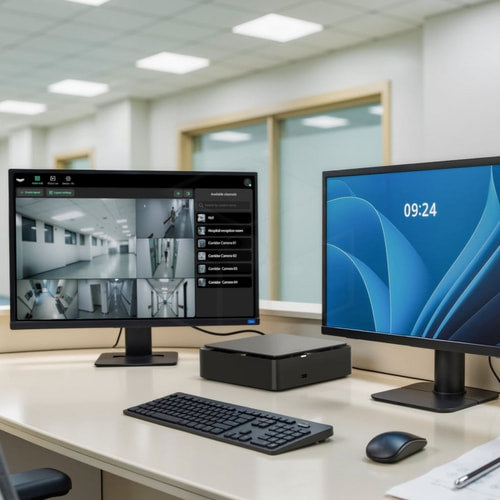

The NVR H-series makes video surveillance simple and flexible: whether on-site at the workstation or remotely via an Ajax app. With HDMI and two USB ports, users can transform their NVR into a full-fledged control room by connecting a monitor and input devices. Once initial setup is complete, on-site video surveillance continues to work even without an internet connection. With Ajax's mobile and desktop apps, users have access to footage, can adjust settings, and manage access anytime, anywhere.
Customizable video wall for simultaneous monitoring
Streamline monitoring with a video wall that displays integrated video streams from all connected devices. Keep an eye on every corner of the building, whether on an HDMI-connected screen or via Ajax mobile and desktop apps. Change the layout as needed to keep the most important images in focus.
Smooth archive navigation
Respond to any event in seconds with a streamlined archive search function. No more tedious scrolling through hours of footage: simply click on an event in the notification log to view the corresponding camera recording with the exact timestamp. Use convenient filters to view only footage with detected motion or AI-recognized objects, or jump directly to a specific day and time with the built-in calendar search function. Export the desired clip in just a few steps in an Ajax app.
Fast and encrypted data transmission
JetSparrow is the heart and brain of Ajax video transmission, storage, and management. We developed this video transmission technology to provide an ultra-fast VMS experience. With JetSparrow, navigating the local archive feels just as smooth as browsing cloud storage. This makes browsing the archive remarkably efficient and allows live viewing to start without any delay.
Easy integration via ONVIF and RTSP
Upgrade and modernize existing installations with Ajax video solutions. Integrate Ajax video devices with third-party systems via ONVIF and RTSP protocols, directly in Ajax apps without workarounds or additional steps. A built-in wizard simplifies configuration by automatically retrieving all necessary network data. Bring an Ajax-level video management experience to any system, complete in just a few minutes.
Instant video verification of alarm notifications
No more searching through piles of footage for a specific moment. Ajax video devices are fully synchronized with the system. Notifications in Ajax apps direct users straight to the relevant incident recording.
Set scenarios for cameras to start recording as soon as specific Ajax detectors are triggered. Configure video settings to receive instant high-resolution visual verification of alarms.
Built-in motion detection
Save storage space and simplify viewing of footage by setting up pixel-based motion detection. Define specific zones where motion triggers video recordings, ensuring only relevant events are captured. This saves HDD space and makes archive navigation even faster and more efficient.
Verified evidence without any effort
Ajax offers secure video export with digital signature verification. Every exported recording is provided with a built-in digital signature. Ajax Media Player automatically checks the integrity and authenticity of the file. If someone attempts to modify the video file, the digital signature validation fails and Ajax Media Player rejects the file with a clear explanation.
A device without a hidden agenda
All system data is securely stored within the European Union and is fully compliant with European data protection standards.
The NVR H-series complies with the NDAA standard, with every component sourced from manufacturers trusted and approved by the US government. Furthermore, the devices have successfully passed independent cybersecurity tests, confirming the safety and reliability of the device.
Ajax Cloud Storage: backup archive for enhanced security
Important footage won't be lost: Ajax offers a secure cloud storage option for saving recordings from DoorBell and IndoorCam. Ajax Cloud Storage keeps event-based footage protected and accessible, even if local storage is compromised. Enable the service for a reliable backup of the content that matters most.
Specifications
| Video | |
| Video input | 16 channels |
| Recording resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| HDMI output resolution | 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720 px |
| Live view/ playback resolution |
8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding | H.265, H.264, JetSparrow |
| Format | H.265 H.264 |
| Performance | 1 × channel at 8MP 3 × channel at 5MP 4 × channel at 4MP 4 × channel at 1080p 10 × channel at 720p 16 × channel at 1024 × 576 px |
| Live view window layout | templates: 1, 4, 9, 16, 5+1, 7+1 views custom: up to 10×10 views |
| Synchronous playback | 16 channels |
| Intelligent video analysis | |
| Motion detection | Ajax camera: 16 channels NVR: 16 channels NVR HAC features built-in software to detect motion in the frame. It is possible to switch between image analysis by NVR HAC or camera algorithms in an Ajax app. |
| AI object detection | Ajax camera: 16 channels |
| Interface | |
| Hard drive | 1 × SATA: supports hard drives with a capacity up to 16 TB (3.5” form factor) |
| Network | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| USB | rear panel: 1 × USB 2.0 (Type-A) side panel: 1 × USB 2.0 (Type-A) |
| Network | |
| Bandwidth | incoming: up to 80 Mbps outgoing: up to 40 Mbps |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| Interoperability | ONVIF |
| Built-in video management system |
Integrated video wall interface with live camera feeds. Smart event filters for quick access to relevant footage. Interactive timeline with preview navigation for efficient playback and incident review. |
| Visual verification of Ajax system alarms | NVR HAC supports a scenario where events triggered by Ajax detectors automatically highlight the corresponding camera feed on the video wall. This allows for instant verification of intruders by the operator. |
| Privacy | Advanced privacy controls ensure a high level of personal data protection. All access rights – including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop – can be fully configured by the device owner. This ensures that only authorized parties have access to video streams, event history, or device settings, in accordance with the owner's preferences. |
| Power supply | |
| Power | 110–240 V, 50/60 Hz, 0.6 A |
| Power consumption | up to 24 W |
| Backup | CR2032 battery, 3 V Only to power the system clock. |
| Housing | |
| Dimensions | 212 × 212 × 64 mm |
| Weight | 782 grams |
| Operating temperature range | from 0 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP20 |
| Colors | White / Black |
| Complete set | NVR HAC 16-channel SmartBracket mounting panel Terminal adapter Ethernet cable Installation kit Quick start guide |
