Ajax ocBridge Plus universal integration module
Product Description

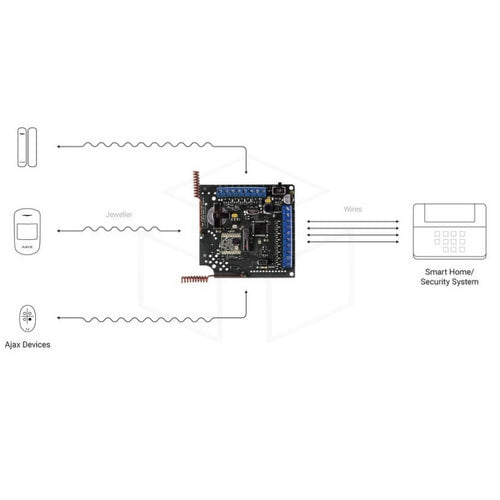

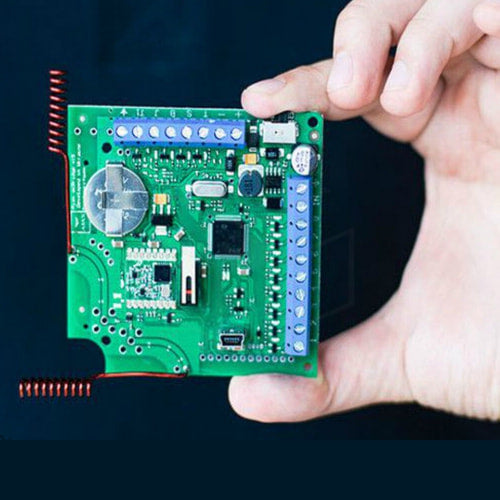

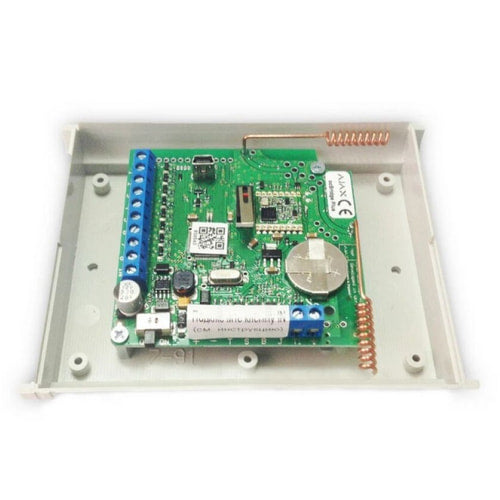

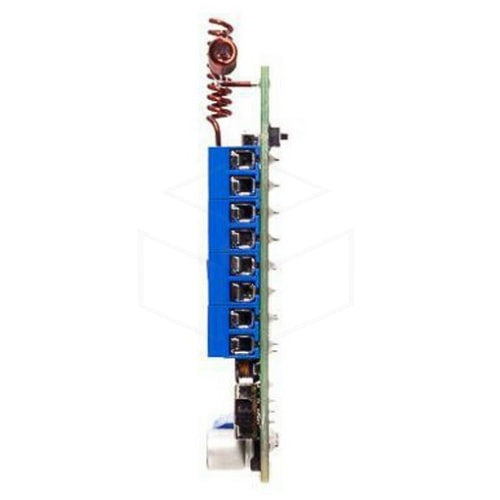

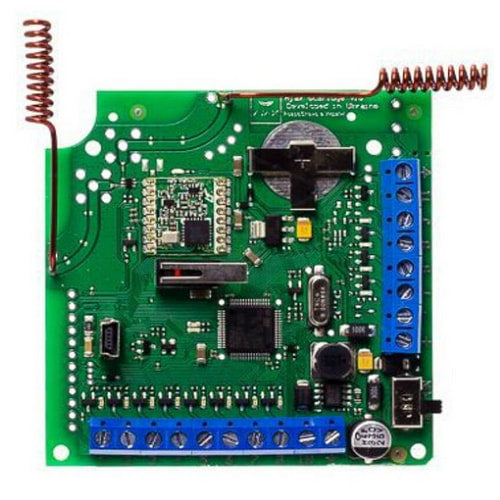

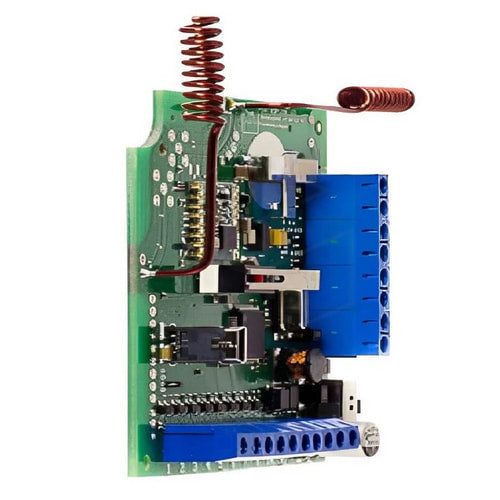

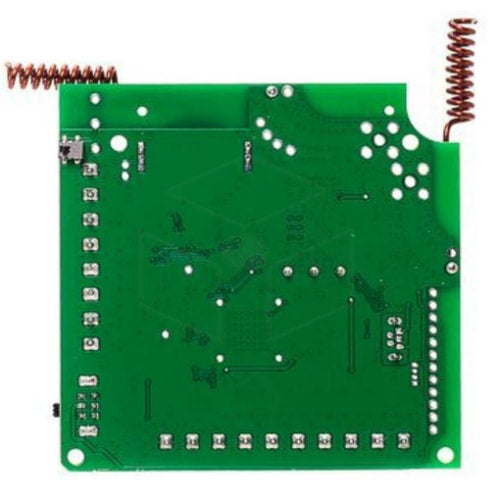

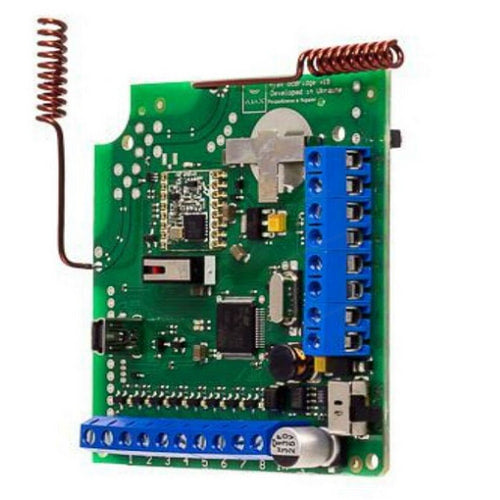

The AJ-OCBRIDGEPLUS device is an integration module for Ajax devices (motion detectors, magnetic links, remote controls, etc.) with wired central panels of other devices. It is possible to add up to 100 Ajax devices to this module wirelessly thanks to the radio protocol Jeweller 868 MHz. For communication with the wired central panel, the module has 8 different zones in which 100 different devices are grouped and sent to the wired system via the information from the Ajax devices.
Communication between the AJ-OCBRIDGEPLUS module and Ajax devices has a range of up to 2 kilometers in open field without obstacles. To prevent manipulation of the module, it is equipped with a front and rear tamper anti-opening.
The integration module is responsible for communicating the status of Ajax devices to the central panel via their 8 configured zones. In addition, it includes 5 additional service areas that inform about rear manipulation, front manipulation, connection loss, braking attempt and low battery.
To add various Ajax devices to the module, use the specific software 'Ajax OcBridge Configurator', for configuration it is connected to the PC via USB and for its operation you need between 8 and 14 V DC power supply.
Specifications
| Type | Wireless |
| Used | Inside |
| Effective radiated power | 8.01 dBm / 6.32 mW (limit 25 mW) |
| Radio communication protocol with Ajax devices and detectors | Jeweler |
| Radio frequency band | 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depending on the region of sale. |
| Maximum distance between wireless sensor and receiver ocBridge Plus | 2000 m (open area) (6552 ft) |
| Maximum number of connected devices | 99 |
| Radio channel interference detection | Available |
| Sensor efficiency control | Available |
| Alert and Event Logs | Available |
| External antenna connection | Available |
| Firmware update | Available |
| Protection against manipulation | Available (open + release) |
| Number of wireless inputs/outputs | 13 (8+4+1)/1 |
| Power supply | USB (for system settings only); (digital input) +/ground |
| Supply voltage | DC 8 – 14V; USB 5V (for system settings only) |
| Operating temperature range | From -20°С to +50°С |
| How humidity works | Up to 90% |
| Dimensions | 95 × 92 × 18 mm (with antennas) |
| Lifespan | 10 years |
