Ajax SiteGuard Security Tower
Product Description

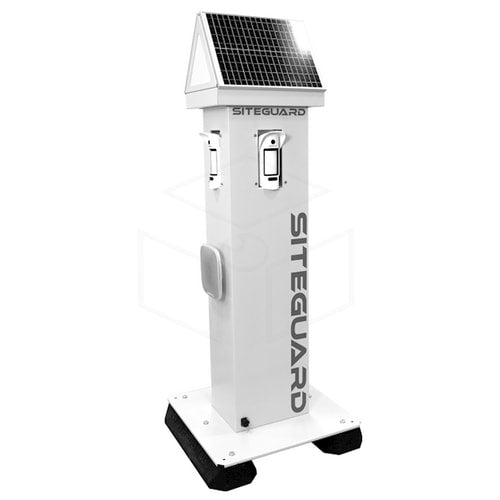

The SiteGuard Tower features a built-in battery and solar panel, making Ajax intrusion protection devices the perfect solution for off-grid locations. The tower is easy to deploy and transport, providing complete protection for a construction site, farm, vacant building, storage space or event venue.
A MotionCam Outdoor (PhOD) Jeweller is installed on each side of the SiteGuard tower, providing 360-degree coverage at a distance of up to 30 m and alarms can be verified by photos in 9 seconds. A user can also request the image in real time via the Ajax apps. In case of intrusion detection, the StreetSiren Jeweller activates a 113 dB sound and flashing LEDs for 3 minutes to warn intruders that they have been detected.
The Hub 2 (2G) Jeweller or Hub 2 Plus Jeweller control panel allows a user to receive instant informative push notifications about alarms via the Ajax apps. The hub also enables remote management, battery status monitoring, and execution of automation scenarios to arm or disarm the system based on the location's opening hours. Using the 12-24V PSU for Hub 2/ReX 2 power supply unit, the control panel is connected to an external battery, which is charged by a solar panel. For indoor or storage use, the SiteGuard tower is equipped with a power outlet.
The hub and PSU are safely concealed in an IP-rated weatherproof enclosure and protected with DoorProtect Plus Jeweller. With tilt and shock sensors, the device detects and alerts a user to any attempts to open the enclosure, unauthorized movement, or interference with the SiteGuard tower. Additionally, MotionCam Outdoor (PhOD) Jeweller’s anti-masking technology alerts you to any accidental or malicious blocking of the sensors, even when the system is powered down.
The robust design of SiteGuard is developed for harsh environments such as a construction site. It is made of galvanized steel, is weatherproof, and can withstand transportation. The tower is equipped with a special base that protects against the impact of vibrations and noise from the machines on the construction site.
Specifications
- Mobile Security Tower with Ajax components
- Perimeter protection tower
- 12V solar panel and MPPT controller
- Includes IP65 enclosure to protect the MPPT controller and alarm panel
- Prepared for installation of the Ajax burglar alarm system

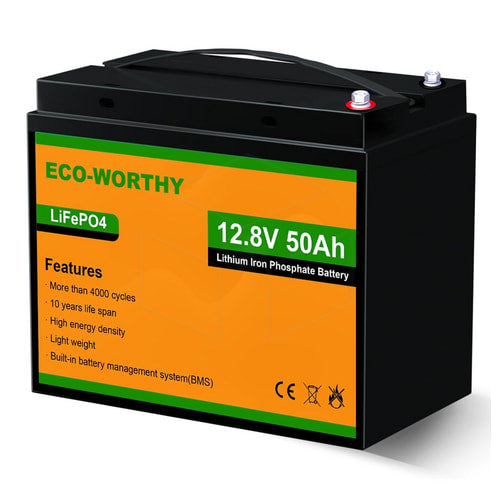

- Wiring for connecting a 12V backup battery (up to 85 Ah)
- 2 anti-vibration blocks bolted to the tower base
- Fully equipped with AJAX components
- Backup battery not included
Features:
- Use Perimeter Protection Tower 360º with instant photo verification
- Including equipment Solar panel
- MPPT controller
- Dimensions: base 68 x 68 cm, height 138 cm
AJAX Components:
- 1 x Ajax Hub2 2 x 4G and LAN including 12V print

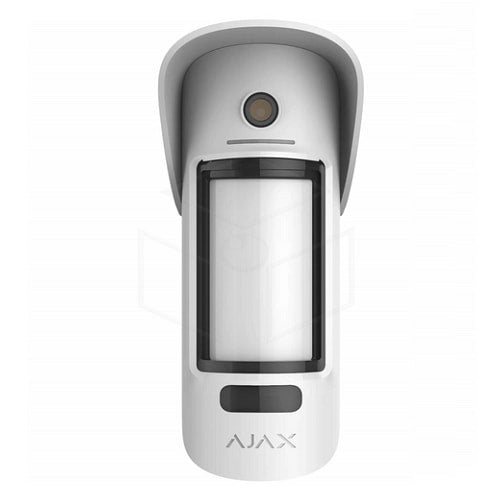

- 4 x Ajax MotionCam Outdoor Photo On Demand, white

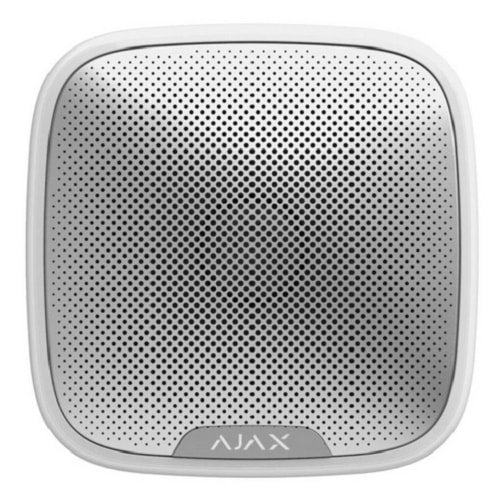

- 2 x Ajax StreetSiren, white, wireless outdoor siren with LED
- 1 x Ajax DoorProtect Plus, white, MC with tilt and vibration sensor
- 1 x Ajax Dry contact relay
Our Mobile Security Tower is delivered fully operational, ready-to-use and free of charge to any address in the Netherlands and Belgium (excl. Wadden Islands).
This item is ordered especially for you and therefore cannot be returned.
