Ajax Smart Socket Wireless
Regular price
€84,99
Tax included.
Shipping calculated at checkout.
Product Description

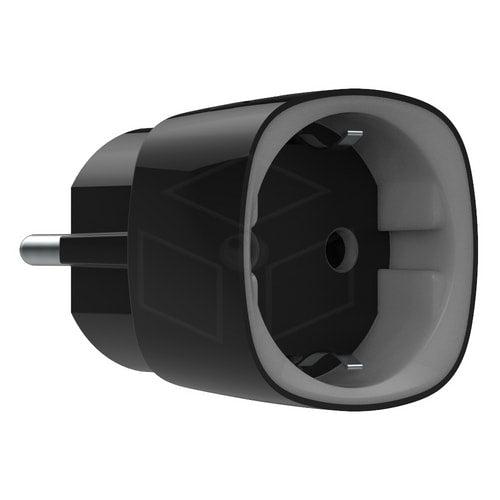

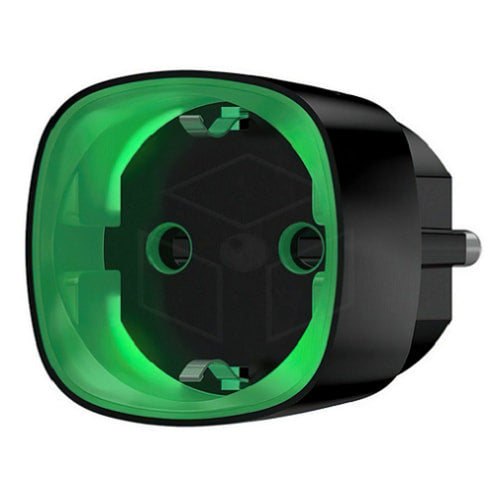

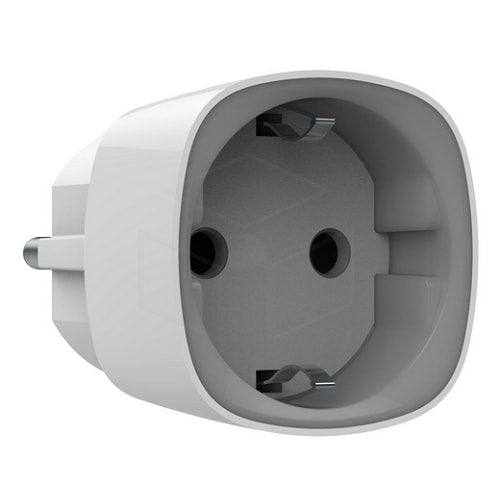

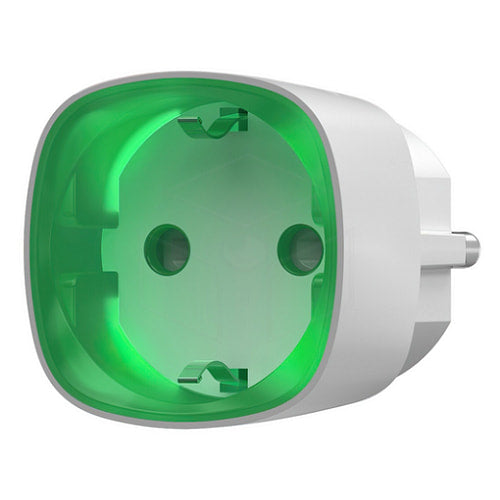

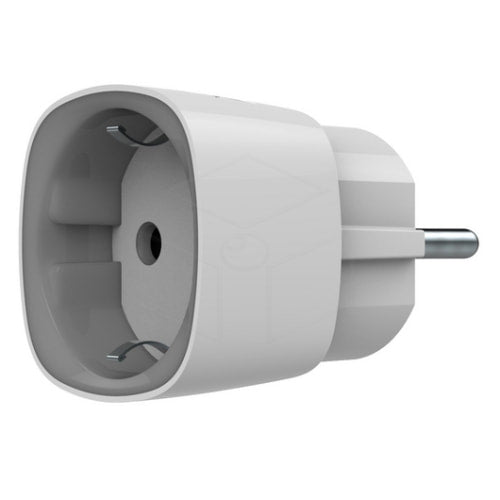

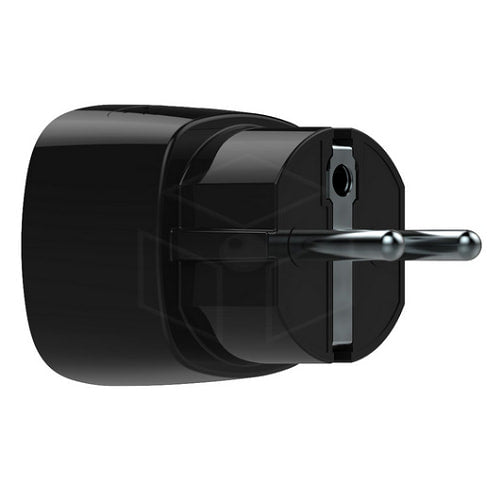

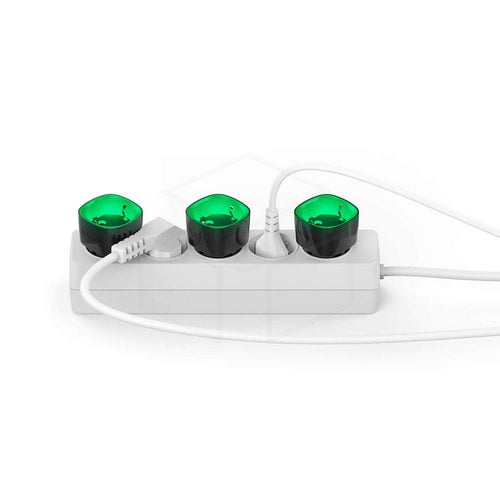

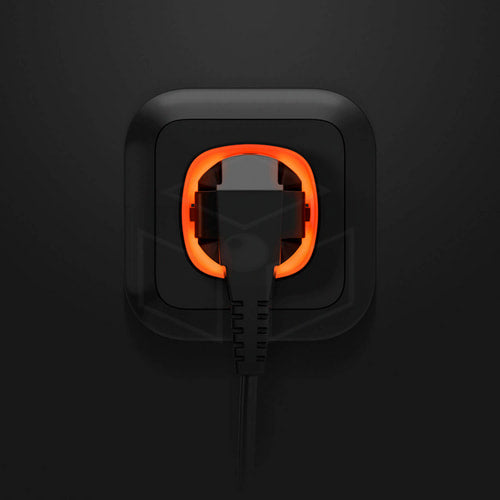

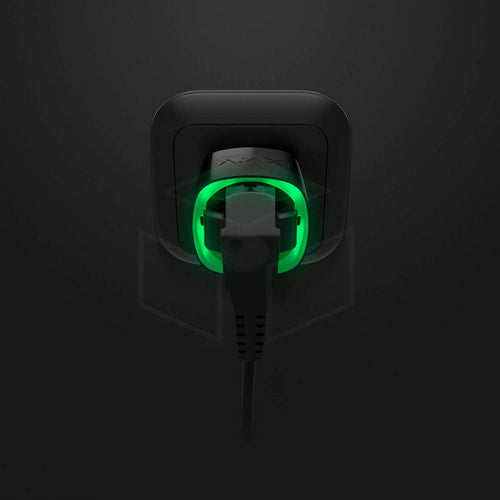

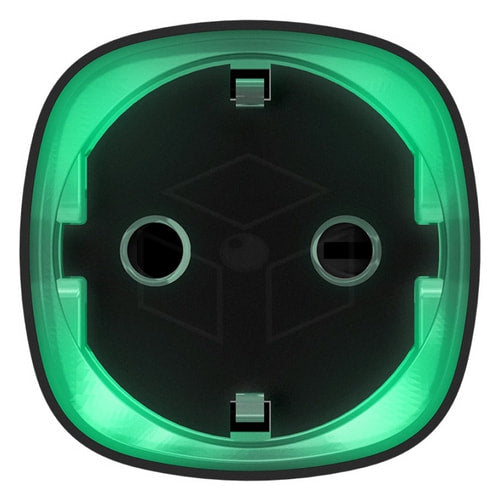

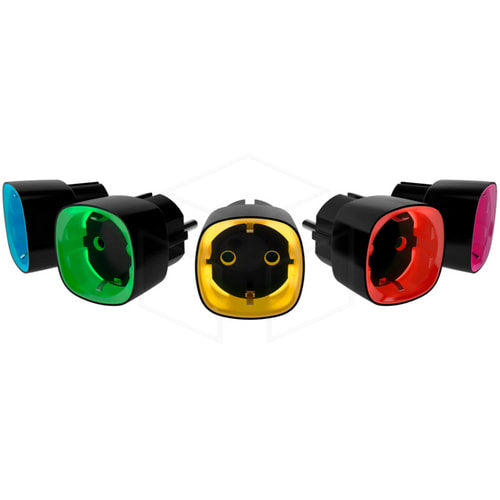

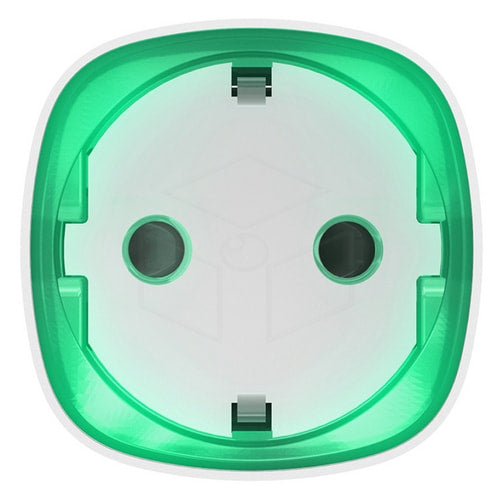

Socket is a wireless smart indoor plug with a power consumption meter for indoor use. Socket is designed as a European plug adapter (Schuko type F) and regulates the power supply of electrical appliances with a load of up to 2.5 kW. Socket indicates the load level and is protected against overload. Connecting to the Ajax security system via a secured Juwelier radio protocol, the device supports communication at a distance of up to 1,000 m in line of sight.
Use scenarios to control actions of automation devices (Relay, Wall Switch or Socket) in response to an alarm, Button press or a schedule. A scenario can be created remotely in the Ajax app.
The Ajax security system can be connected to a central control room of a security company.
Specifications
| Control element | Electromagnetic relay |
| Lifespan | At least 200,000 switches |
| Voltage and type of external power supply | 110–230 V, 50/60 Hz |
| Voltage protection for 230 V mains voltage | Yes, 184–253 V |
| Maximum charging current | 11 A (continuous), 13A (up to 5 s) |
| Operating modes | Pulse and bistable (firmware version is 5.54.1.0 or later. Production date of March 4, 2020) Bistable only (firmware version below 5.54.1.0) |
| Pulse duration | 0.5 to 255 seconds (firmware version is 5.54.1.0 or later) |
| Maximum current protection | Yes, 11A when protection is enabled, up to 13A when protection is disabled |
| Protection against maximum temperature | Yes, +85°С. The socket will automatically turn off if the temperature is exceeded |
| Electric shock protection class | Class I (with earth terminal) |
| Control of energy consumption parameters | Yes (current, voltage, power consumption) |
| Charge indicator | Yes |
| Output power (resistive load at 230 V) | Up to 2.5 kW |
| Average energy consumption of the appliance in standby mode | Less than 1 W⋅h |
| Radio communication protocol | Jeweler |
| Radio frequency band | 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depending on the region of sale. |
| Compatibility | Works with all Ajax hubs radio signal range extenders |
| Maximum radio signal power | 8.97 mW (maximum 25 mW) |
| Modulation of radio signals | GFSK |
| Range of radio signals | Up to 1000 m (when there are no obstacles) |
| Installation method | In socket |
| Operating temperature range | From 0°С to +40°С |
| Operating humidity | up to 75% |
| Protection class | IP20 |
| General dimensions | 65.5 × 45 × 45 mm (with plug) |
| Weight | 58 gr |
| Lifespan | 10 years |
