Product description

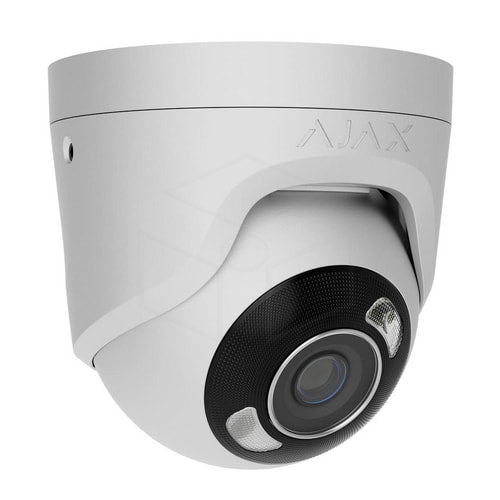

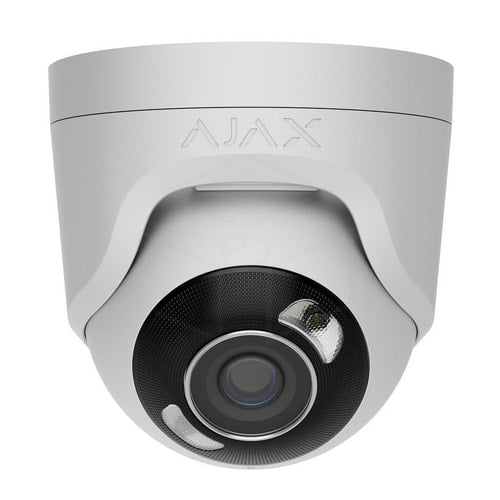

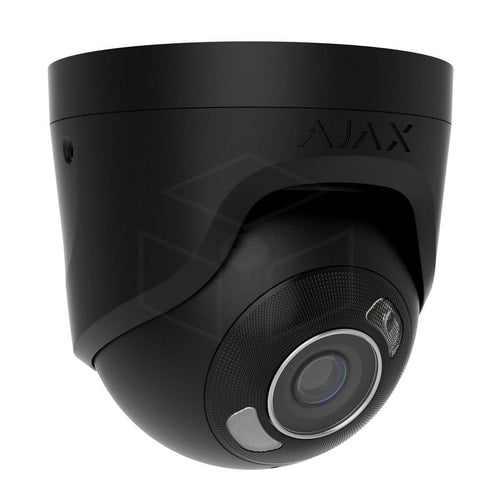

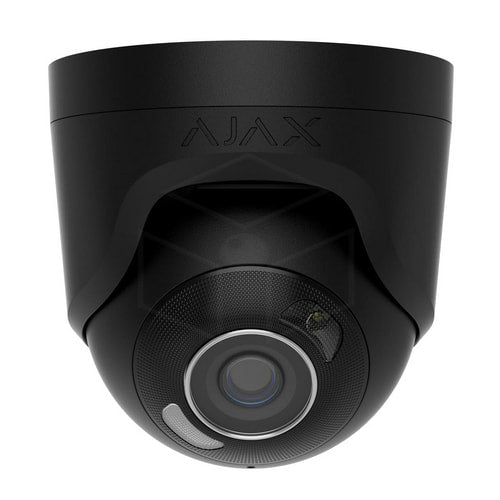

TurretCam HL redefines video surveillance with precise motion detection and AI-powered recognition of humans, vehicles, and animals. Its hybrid lighting technology adapts to conditions, switching from infrared to white light to capture clear, full-color images even in the dark. When the white light is activated, it also acts as an active deterrent. The camera works seamlessly with intrusion, fire, and automation devices when part of the Ajax system. Everything can be managed via a single Ajax app, ensuring secure access and data protection.
More features
Clear colors, even in the dark
The hybrid lighting in TurretCam HL cameras automatically switches between infrared and white light based on object recognition or motion detection. This ensures high image quality even in low light and at night. The feature provides colorful images that help identify clothing, vehicles, or other critical details. The sudden white light can also act as a deterrent, letting intruders know they have been detected.
Customized lens for every scene
Choose from various lenses to meet your installation needs. Use wide-angle lenses for open areas such as the perimeter of a building, or choose a narrower field of view for hallways and compact spaces. A higher resolution provides better coverage and details over large areas, while a lower resolution is ideal for confined spaces where extreme detail is not a priority.
Uniform lighting in every frame
Every Ajax camera adapts easily to changing lighting thanks to True WDR. This smart technology with hardware and software restores uneven lighting in complex zones, frame by frame, in real time. True WDR offers excellent video quality with clear details and can be configured in Ajax apps. The process is simple and immediately improves video quality.
An AI-powered camera
Ajax cameras offer AI-powered object recognition for efficiently recording and storing events. Users can configure recording based on their needs. A camera can record continuously, or when triggered by motion or the built-in AI. The settings help capture critical events, such as a vehicle entering a parking lot or a person entering a restricted area. This reduces unnecessary footage and makes it easier to review recordings.
AI processing takes place directly in the camera, eliminating the need for additional equipment or subscriptions.
Users and security personnel can easily monitor areas via a smartphone and receive instant notifications when motion is detected. No specialized security training is required.
Precise video recording with built-in motion detection
Optimize your video archive with intelligent motion detection. Configure motion recording within specific zones at the pixel level, so that only relevant activity is recorded when motion occurs in the selected area. Strictly filtering events saves storage space and makes navigating the archive much smoother.
Customizable video wall for simultaneous monitoring
The cameras can be managed locally and remotely via Ajax mobile and desktop apps or a local video management system (VMS). All visual data is available in a streamlined virtual video wall. The Video Wall tab combines the latest images from the cameras and provides a complete overview of the monitored area. Users can rearrange tiles to suit their monitoring needs.
A device with no hidden agenda
All system data is stored securely within the European Union and fully complies with European data protection standards.
The Ajax TurretCam HL is NDAA-compliant, meaning every component is sourced from manufacturers trusted and approved by the US government. Furthermore, TurretCam HL has successfully passed independent cybersecurity tests, proving the device's security and reliability.
Specifications
| Camera | |
| Image sensor | 8 MP CMOS, type 1/2.7" |
| Lens focal length | 2.8 mm |
| Maximum aperture | f/1.6 |
| Iris type | Fixed |
| Lens focus type | Fixed |
| Field of view | Horizontal: 110° Vertical: 56° Diagonal: 126° |
| Maximum illumination distance | White LED: up to 50 m IR LED: up to 50 m |
| Video | |
| Resolution | 8 MP (3840 × 2160) 6 MP (3072 × 1728) 5 MP (2944 × 1656) 5 MP (2880 × 1620) 5 MP (2592 × 1944) 4 MP (2560 × 1440) 3 MP (2304 × 1296) 2 MP (1920 × 1080) 0.6 MP (1024 × 576) |
| Frame rate | 20 fps |
| Image rotation | 0°, 180° |
| Video codec | H.265, H.264 |
| Dynamic range | True WDR |
| Storage | MicroSD Ajax NVR |
| Audio | |
| Built-in digital microphone | Yes |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
| Intelligent video analysis | |
| Motion detection | Yes |
| AI object detection | Humans Pets Vehicles |
| Network | |
| Port | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS |
| Interoperability | ONVIF (Profile S/T*) |
| Main features | |
| Video protocol | JetSparrow |
| Visual verification of Ajax alarms | The system allows you to configure a scenario where Ajax detectors trigger specific cameras to start recording. The recorded event is instantly displayed in the mobile or desktop monitoring app. |
| Privacy | Advanced privacy controls provide a high level of protection for your personal data. All access rights, including those for mobile app users, installers, and security company operators via Ajax PRO Desktop, can be fully configured by the device owner. This ensures that only authorized persons have access to video streams, history, or device settings, exactly as the owner intends. |
| Tamper protection | |
| mTLS | Support |
| Authentication | Ajax Cloud |
| Secure Boot | Support |
| OTA signature verification | Secure automatic firmware update. |
| Power supply | |
| PoE standard | 802.3at/af |
| PoE power consumption | Maximum: up to 8.3 W Average: up to 7.7 W |
| Power supply unit | 12 V ± 20% ⎓, 1 А |
| 12 V DC power consumption | Maximum: up to 7.1 W Average: up to 6.6 W |
| Housing | |
| Dimensions | 103 × 98 × 98 mm |
| Weight | 475 g |
| Operating temperature range | -30 to +60 °C |
| Operating humidity | up to 90% |
| Protection class | IP65 |

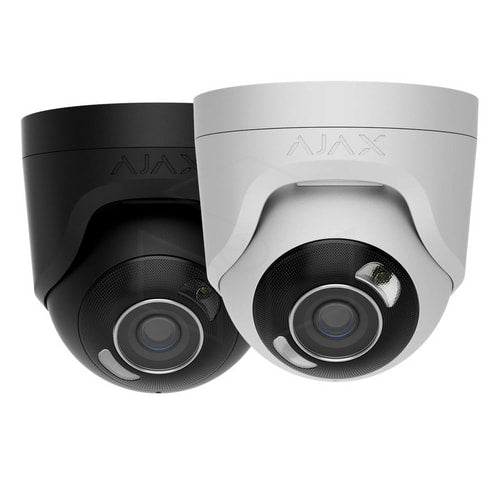

| Color | White, Black |
| Complete set | TurretCam HL (8 MP/2.8 mm) Installation template Installation kit Quick start guide |
![Ajax TurretCam HL (8 Mp/4 mm) Kleur: Wit Camera’s [kleur:wit]](http://www.benji-security.nl/cdn/shop/files/ajax-turretcam-hl-8-mp-2-mm-kleur-wit-cameras-514.jpg?v=1766099750&width=1445)
![Ajax TurretCam HL (8 Mp/4 mm) Camera’s [kleur:overslaan]](http://www.benji-security.nl/cdn/shop/files/ajax-turretcam-hl-8-mp-2-mm-cameras-244.jpg?v=1766099746&width=1445)
![Ajax TurretCam HL (8 Mp/4 mm) Camera’s [kleur:wit]](http://www.benji-security.nl/cdn/shop/files/ajax-turretcam-hl-8-mp-2-mm-cameras-744.jpg?v=1766099753&width=1445)

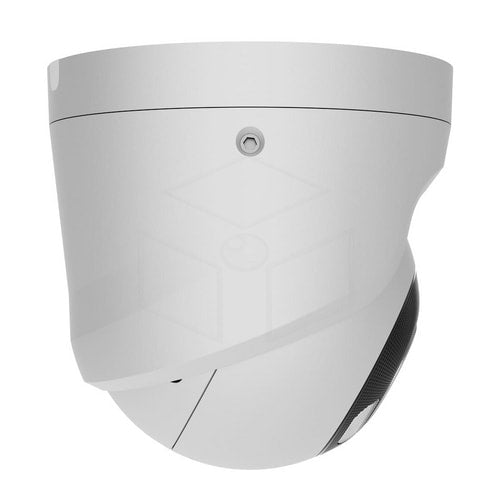

![Ajax TurretCam HL (8 Mp/4 mm) Camera’s [kleur:wit]](http://www.benji-security.nl/cdn/shop/files/ajax-turretcam-hl-8-mp-2-mm-cameras-695.jpg?v=1766099756&width=1445)
![Ajax TurretCam HL (8 Mp/4 mm) Camera’s [kleur:wit]](http://www.benji-security.nl/cdn/shop/files/ajax-turretcam-hl-8-mp-2-mm-cameras-952.jpg?v=1766099759&width=1445)
![Ajax TurretCam HL (8 Mp/4 mm) Camera’s [kleur:wit]](http://www.benji-security.nl/cdn/shop/files/ajax-turretcam-hl-8-mp-2-mm-cameras-599.jpg?v=1766099762&width=1445)
![Ajax TurretCam HL (8 Mp/4 mm) Camera’s [kleur:wit]](http://www.benji-security.nl/cdn/shop/files/ajax-turretcam-hl-8-mp-2-mm-cameras-601.jpg?v=1766099766&width=1445)
![Ajax TurretCam HL (8 Mp/4 mm) Camera’s [kleur:zwart]](http://www.benji-security.nl/cdn/shop/files/ajax-turretcam-hl-8-mp-2-mm-cameras-921.jpg?v=1766099769&width=1445)

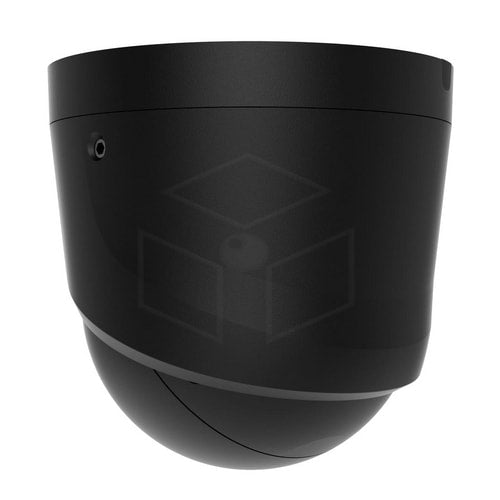

![Ajax TurretCam HL (8 Mp/4 mm) Camera’s [kleur:zwart]](http://www.benji-security.nl/cdn/shop/files/ajax-turretcam-hl-8-mp-2-mm-cameras-660.jpg?v=1766099772&width=1445)
![Ajax TurretCam HL (8 Mp/4 mm) Camera’s [kleur:zwart]](http://www.benji-security.nl/cdn/shop/files/ajax-turretcam-hl-8-mp-2-mm-cameras-858.jpg?v=1766099775&width=1445)

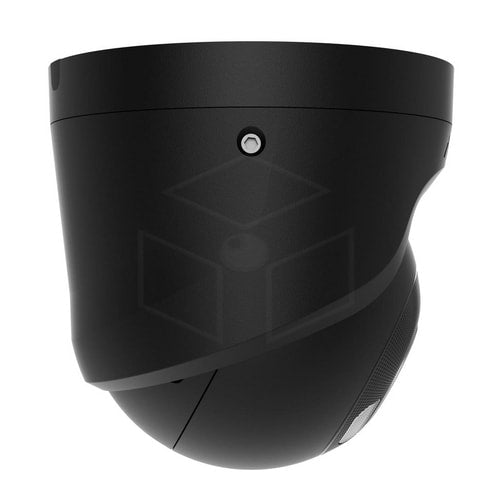

![Ajax TurretCam HL (8 Mp/4 mm) Camera’s [kleur:zwart]](http://www.benji-security.nl/cdn/shop/files/ajax-turretcam-hl-8-mp-2-mm-cameras-415.jpg?v=1766099778&width=1445)
