Cat6 to HDMI splitter/converter/extender

Product Description

Cat6 to HDMI splitter/converter/extender

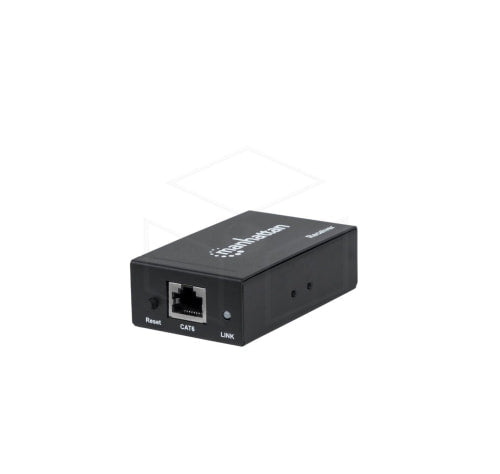

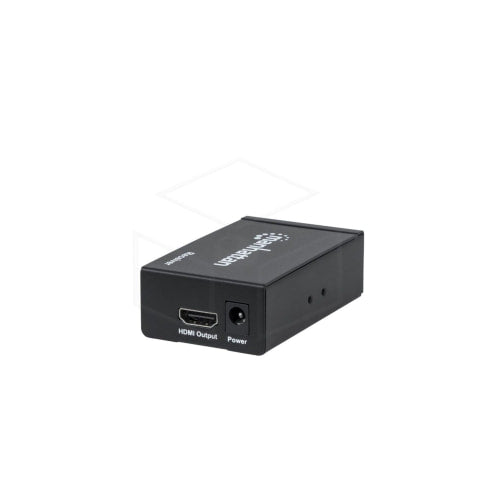

The 185353 is a receiver that is equipped with a Cat6 and an HDMI output port. This device extends the signal by 50 meters to 1080P without any problems. The receiver can be combined with various products from Manhattan, such as the 185352. This combination of products makes it possible to send an HDMI signal over a UTP cable. It is therefore advisable to purchase them together. It is possible to connect 4 of these units to 1 transmitting unit, so that the signal can be split over 4 monitors.

Specifications

HDMI signal converter (Receiving Unit) over UTP
Input Video Signal: 400-600 mV
Input DDC signal: 5 V pp (TTL)
Maximum single-link range: 1.65 Gbps and 1080p resolution
Outgoing video: HDMI 1.3, HDCP 1.4a
Frequency: 1.65 Gbps / 165 MHz
Supported resolutions: DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p
Power supply: 5 VDC / 1 A
Dimensions: 100 x 65 x 25 mm
5V power adapter included
Weight: 120 g
