Dahua 2MP Villa outdoor station, IP and 2-wire, 160 degrees

Product Description

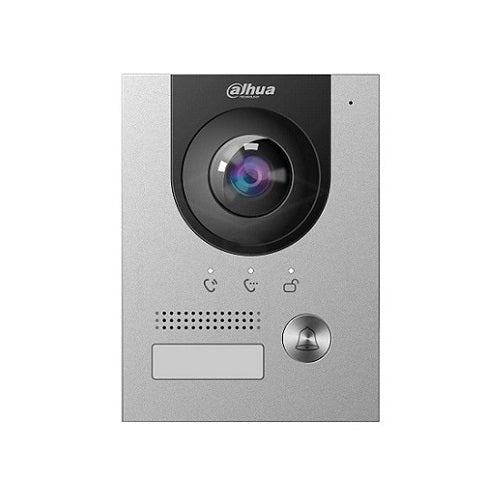

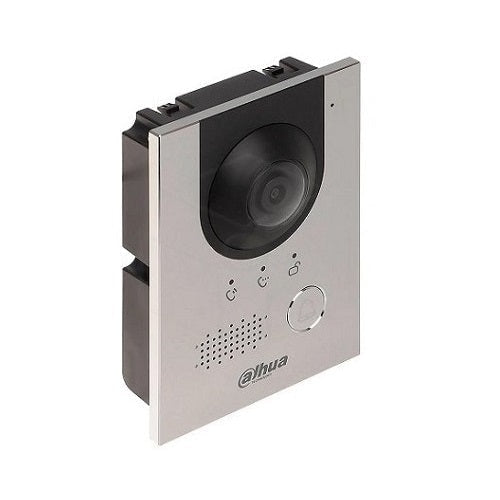

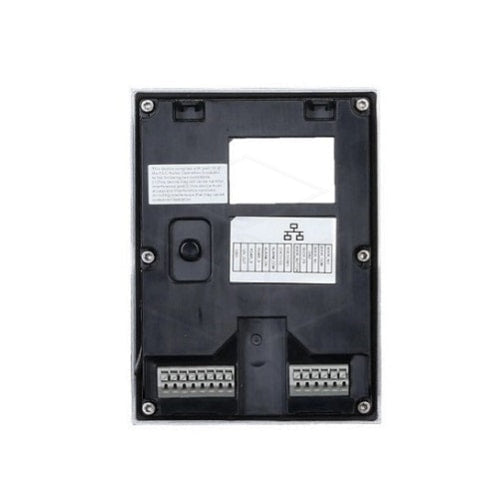

VTO2202F-P-S2 is a modern Dahua Technology door station, which is designed to implement access control in single-family houses. The presented door panel is equipped with a 2Mpx (Full HD 1080p) camera with a 160 ° fisheye lens and automatic IR backlight, a two-way audio system with noise and echo cancellation function and a call button. The device has a relay output (NC/NO) to control the lock, 1 alarm output, the ability to connect an exit button and a reed switch. In addition, it is possible to connect the DEE1010B module via the RS485 port. The aesthetic appearance of the housing, emphasized by the modern design of the front panel, guarantees easy adaptation of the device to the existing architectural style of the target installation site.

The modern Dahua camera is equipped with an intuitive Web Service 2.0 configuration service. The solution not only provides a quick and easy personalization of system settings from the level of a web browser, but also the possibility to secure the archiving process of files with additional storage facilities. Using the intuitive menu of the program it is possible not only to test the cameras, but it is also possible to set the basic and advanced parameters of the device.

The Dahua video intercom system is a complete solution for quick and easy implementation of video access control structures. The devices available in the manufacturer's range make it possible to both single-subscriber and multi-family video intercom systems make those works in TCP/IP, SIP, 2-wire technology.

Dahua video intercoms allow the use of an internal intercom and direct conversations with other monitor units located in a common installation. The devices also allow a quick display of the image of gate stations, automatic archiving of the image of visitors, independent assignment of access to the premises, remote view of IP CCTV cameras, as well as expansion of the installation with the properties of other security system devices possible. Control of the video intercom can be done from the monitor, as well as the application environment installed on the computer and mobile phone.

Key Features

• Anodized aluminum front panel
• CMOS low illumination 2MP HD colorful 160° fisheye camera
• Video intercom function
• Access control function supporting two locks
• Mobile phone app, talk to the visitor or unlock the door remotely on
• Compatible with 2-wire interface & RJ45 interface
• IK07&IP65
• Support H.265
• Support surface and recessed mounting
• PoE

Download

Datasheet: Click  here for download
