Product Description
This camera is part of the WizSense product series, an AI technology with deep learning algorithms designed to recognize humans and vehicles, as well as to predict certain events. Thanks to WizSense technology, a target/intruder can be quickly detected after an event, using Active Deterrence.

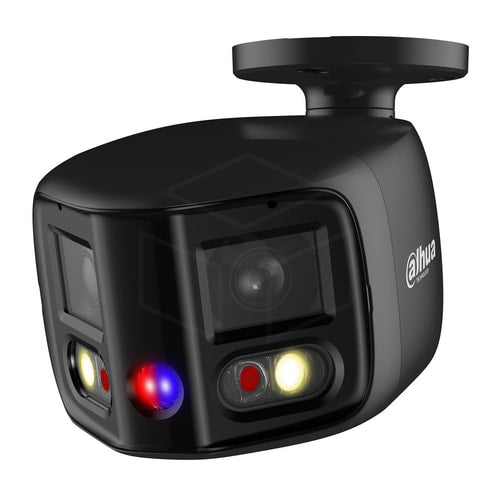

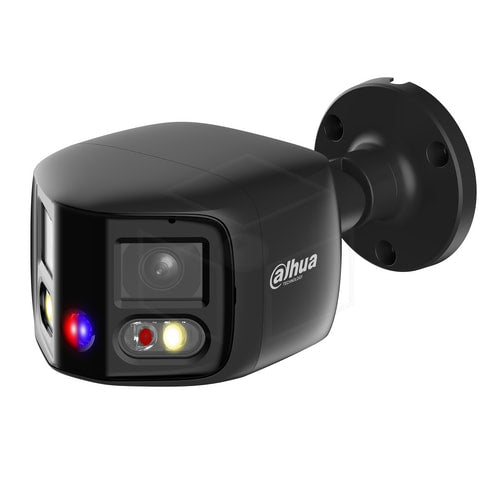

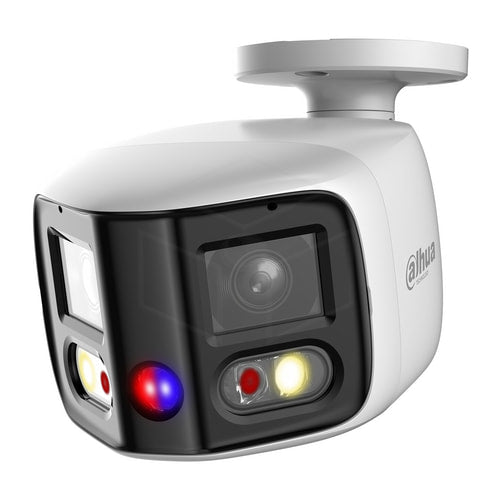

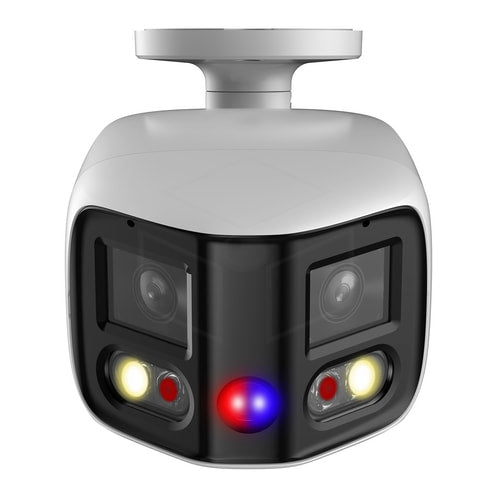

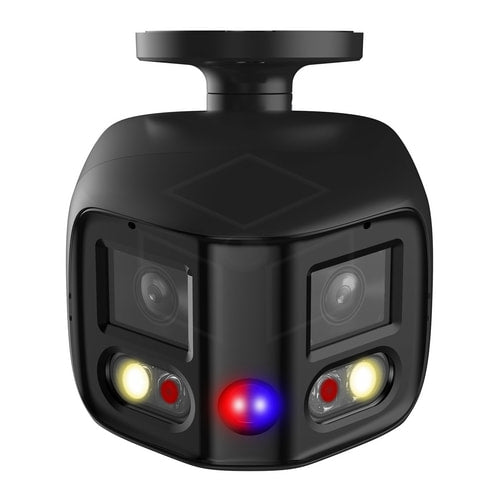

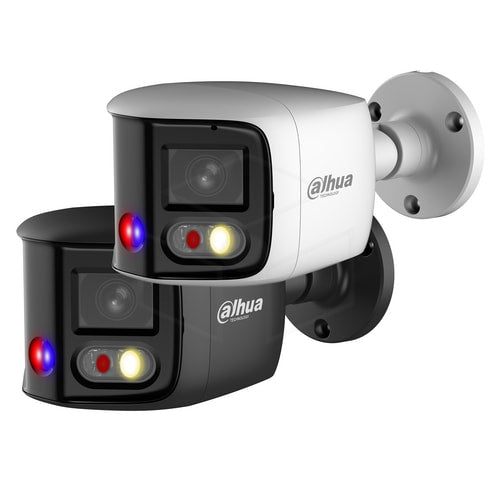

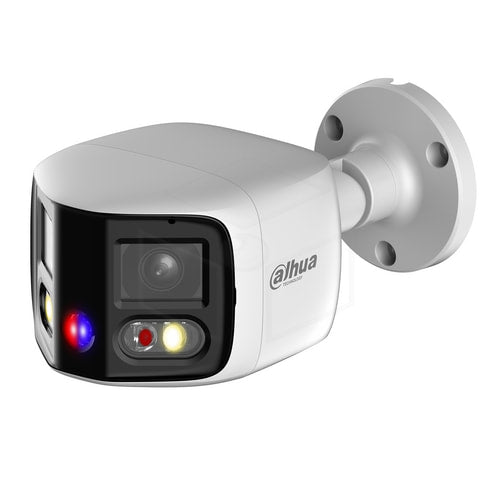

The IPC-PFW3849S-A180-AS-PV IP surveillance camera is equipped with dual lenses, providing a resolution of up to 2x4MP and a panoramic view thanks to the 180° wide viewing angle.
The camera also features Smart Dual Illuminators, allowing you to film in full color even at night without light pollution. When no motion is detected, the camera records black-and-white images at a distance of 25 meters using IR. When a target is detected, the white LED automatically turns on, recording color images at a distance of 20 meters. As soon as the target leaves the monitored frame, the camera switches off the white light and continues filming with IR.
Thanks to intelligent algorithms, the camera can detect and classify the movements of both humans and vehicles, significantly reducing false alarms. If a target is detected, the camera quickly sends a notification to your mobile phone via the DMSS app so that you can be alerted immediately. This allows you to stay informed of all events in the monitored area and view live footage from anywhere, directly via the app.
This camera also features EPTZ, which allows it to zoom in and track multiple targets simultaneously when an alarm is triggered. Thanks to this function, you can view images with great detail, and distant objects are displayed more clearly.
The device is equipped with a built-in microphone and speaker and can emit an acoustic and light alarm when motion is detected, deterring potential intruders.
The IPC-PFW3849S-A180-AS-PV camera supports both a classic 12V power supply and a PoE network cable. The cable simplifies installation and can be used for both power supply and data transmission.
The camera housing is made of metal and has an IP67 rating, which guarantees protection against external factors such as water or dust. This makes the device extra robust and long-lasting.
Specifications
| Camera | |
| Image Sensor | Dual 1/2.7" CMOS |
| Max. Resolution | 4096 (H) × 1860 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 25 m (82.02 ft) (IR LED) Up to 20 m (65.62 ft) (Warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–77° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Field of View | Horizontal: 180°; Vertical: 86° |
| Max. Aperture | F1.4 |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), loitering detection, loitering detection |
| SMD | SMD 4.0 |
| Quick Pick | With AI NVR, you can quickly detect the human/vehicle targets that users are interested in via SMD events. |
| Smart Search | Work with Smart NVR to perform refined intelligent search, event extraction and merging to event videos. |
| EPTZ | Enlarge and track the targets of intelligent alarms |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (supported by sub stream only) |
| AI Coding | AI H.265; AI H.264 *Including smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 4096 × 1860@(1–20 fps) Sub stream: 1200 × 530@(1–20 fps) Third stream: 1920 × 860@(1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 8M (4096×1860); 6M (3632×1632); 4M (3040×1368); 1200 × 530; 1920 × 860; 960 × 432; D1 (704 × 576/704 × 480) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 6 kbps –16384 kbps H.265: 6 kbps –16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Privacy Masking | 4 areas |
| Defog | Yes |
| Audio | |
| Built-in Mic | Yes, built-in dual mic |
| Built-in Speaker | Yes, built-in speaker Max. power consumption: 2 W; max. sound level at 10 cm: 110 dB * Laboratory test results |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; loitering detection; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Browser | IE: IE 8 and later Chrome Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3 V–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Power Consumption | Basic: 3.4 W (12 VDC); 3.8 W (PoE) Max. (H.265+WDR+ warm light+siren and light active deterrence+intelligence on): 9 W (12 VDC); 10.3 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Casing | Metal |
| Product Dimensions | 183.1 mm × 99.0 mm × 78.0 mm (7.20" × 3.90" × 3.07") (L × W × H) |
| Net Weight | 695 g (1.53 lb) |
| Gross Weight | 870 g (1.92 lb) |
