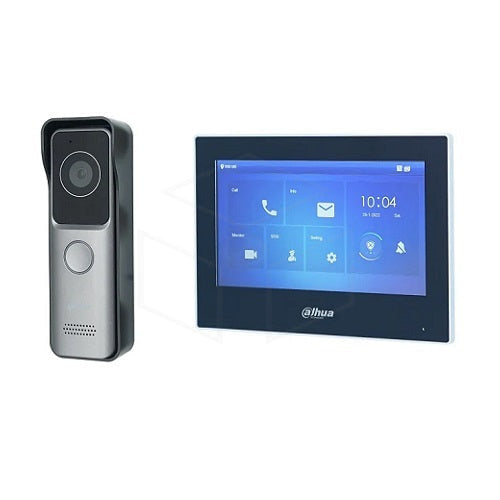

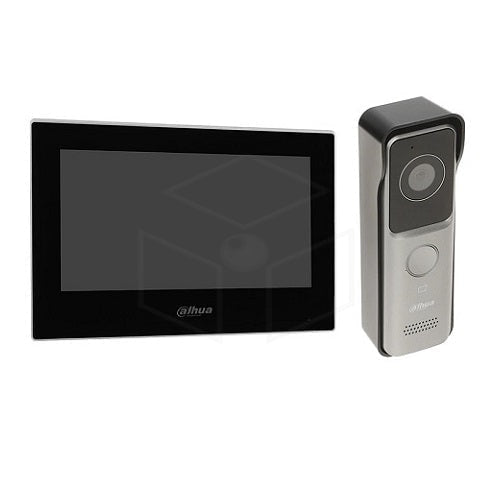

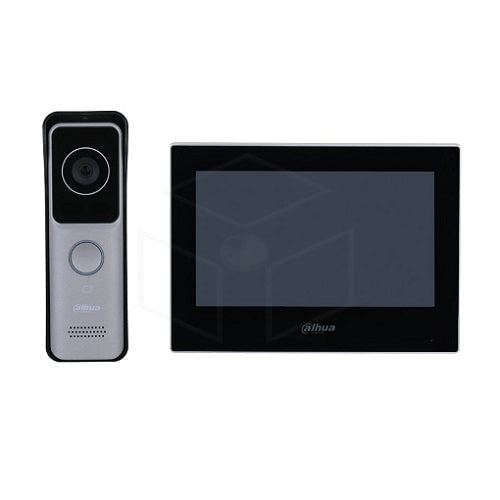

Dahua DHI-KTW02 Wi-Fi Villa Door Station & IP Indoor Monitor

Product Description

The outdoor station in the Dahua IP video intercom kit is equipped with a 2 MP lens and can display clear images in FullHD 1080p resolution.

With the Dahua IP KTW02 video intercom, you can grant access to your garden or office. This action can be performed from the screen of the indoor station, or directly from the mobile device, using the DMSS application (available for Android and iOS). Even if you are in a different location, you will receive notifications directly on your mobile phone and you can only grant access after identifying the person. You also have the possibility to communicate audio directly from the phone, and not only to visualize in real time.

Both the outdoor station and the indoor station in the Dahua IP KTW02 video intercom kit can be powered via a data cable (PoE power supply). This kit includes 2 12V 2Ah power supplies. A PoE switch is also required for the PoE power supply.

The outdoor station is equipped with a MicroSD card slot with a capacity of up to 256 GB. It offers the possibility for the outdoor station to capture images and store them locally on the card. (card not included).

The Dahua IP video intercom kit can connect to the Internet via a wireless router, operating on the 2.4 GHz frequency. The maximum communication distance in open spaces, without obstacles or interference, is up to 50 meters. It is important to note that the presence of obstacles such as trees or walls between the router and the video intercom can affect the effective communication distance.

Key Features

Wi-Fi Villa Door Station

• Ultra slim design
• PC and ABS material make it ideal for indoor and outdoor use
• 1/2.8" 2-MP HD CMOS camera
• Provides two-way video calling with indoor monitors
• Video and voice messages from visitors can be checked on the indoor monitor
• Video calling and unlocking via app
• IR illumination and automatic WDR
• Wi-Fi connection
• IP65 rating
• H.264 and H.265
• Unlock with IC card
• PoE power supply

Indoor IP monitor

• 7" TFT capacitive touchscreen, 1024 × 600
• 6-channel alarm input and 1-channel alarm output
• Wi-Fi connection
• Standard PoE
• Outdoor station and IPC monitor
• H.265 and H.264 video decoding
• High performance and cost effective

Download

Datasheet: Click here to download
