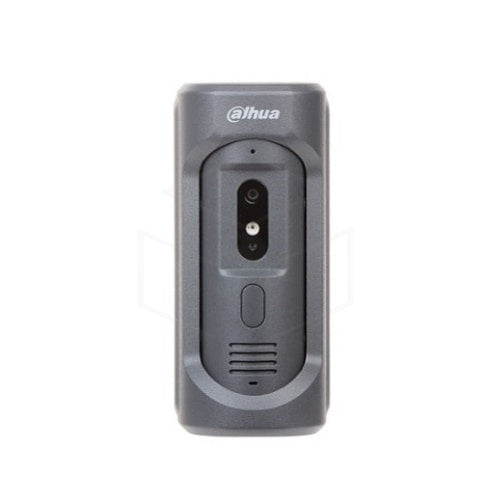

Dahua VTO2101E-P-S2 IP Villa Outdoor Station IP65 & IK10

Product Description

The Dahua VTO2101E-P-S2 is a vandal-proof doorbell camera with mobile app or can be used as an outdoor station in a Dahua intercom system with one or more indoor monitors. The Dahua VTO2101E-P features IR night vision, SIP protocol, a rotatable viewing direction of the lens and the option to power via the network cable with PoE.

The device works with video door phones and other panels operating in the DAHUA IP/SIP standard.

The intercom requires a SIP server, but it can be a SIP server for itself. After you configure the SIP server, the P2P option is available in the panel. The use of a special firmware version in VTH monitors is required.

NOTE! The device does not support Dahua analog system.

Key Features

• Can only work with the mobile application, without the VTH monitor
• The monitoring function with the possibility of opening the door can be performed by a smartphone, tablet or internal panel VTH1 / VTH2 / VTH5
• Doorbell button,
• Locking,
• Two-way communication,
• Built-in microphone,
• Built-in speaker,
• Noise and echo reduction
• Tamper detection - removal of mounting surface
• RS-485 interface
• Alarm inputs - 1 unit
• PUSH Video Messages
• Voice message
• WDR - 120 dB - Wide dynamic lighting range
• 2D-DNR, 3D-DNR - Digital noise reduction in the image
• Day/night mode (color/black and white/auto)
• ICR - Mechanical infrared filter

Specifications

Compatibility:	DAHUA
Sensor:	1/2.8", 2.1 Mpx CMOS
Objective:	3.6mm
Viewing angle:	80 °
Image compression method:	H.265 / H.264
LED lighting:
IR lighting:
UTP Category:	UTP Category 5e
Mobile access:	Port: 37777 or cloud access Android: Free DMSS App iOS (iPhone): Free DMSS Application
Power supply:	PoE (802.3af), 12 V DC / 1 A, - DAHUA
Power consumption:	≤ 5 W (operation) ≤ 2.5 W (standby mode)
Supported languages:	English
Case:	Metal - Zinc Alloy, Waterproof - IK10
Colour:	Graphite
Protection level:	Ip65
Operating temperature:	-40 °C ... 60 °C
Weight:	0.67 kg

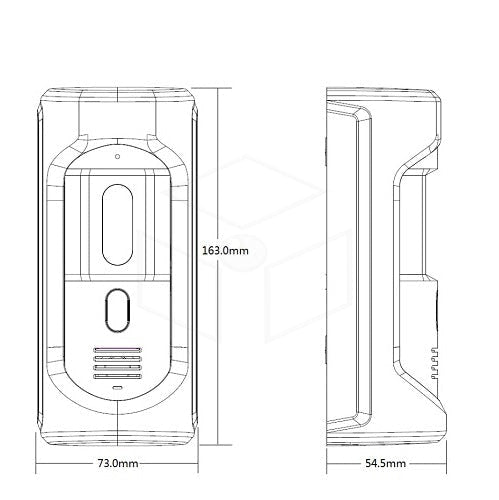

Dimensions:	73 x 163 x 55 mm
Manufacturer / Brand:	DAHUA
