Dahua LR1002-1ET Single-Port Long Reach Ethernet over Coax Transmitter
Product Description
Dahua has released an innovative device DH-LR1002-1ET to transmit video signal to external devices through IP coaxial line, which, thanks to the latest technologies, is capable of secure Ethernet data transmission using IEEE802.3, IEEE802.3u or IEEE802.3x protocols, and for power supply PoE protocols IEEE802.3af and IEEE802.3at. When establishing a network, RG59 coaxial cable is used, which uses MDI/MDIX self-diagnosis.
The Dahua DH-LR1002-1ET transmitter is designed to convert a signal from a BNC interface to an RJ45 interface.

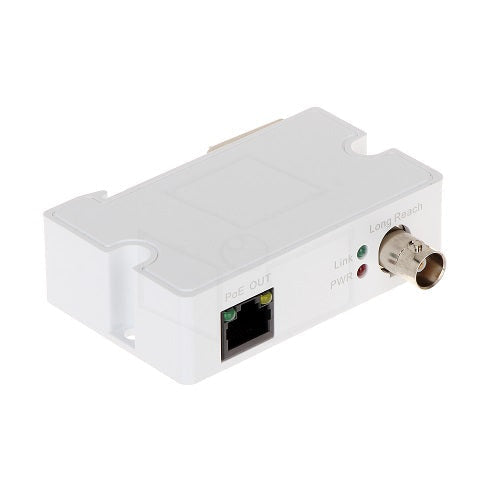

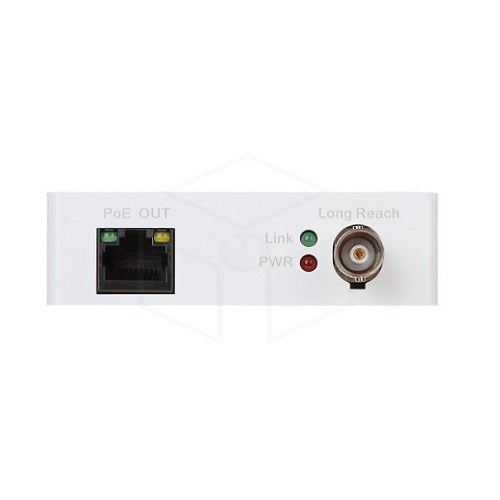

Quality video travels from transmitter to receiver with minimal distortion over a considerable distance of 1000 meters at 10 Mbps or 400 meters at 100 Mbps. This model features a BNC connector on the output and an RJ45 Base-TX connector on the input. The RJ45 connector has dual yellow and green indicators, and there are Link and PWR indicators near the BNC port.
The device is easy to install and maintain. The industrial design of white plastic housing ensures high reliability at the working temperature of -30℃ to +65℃ with relative humidity of 5% ~ 95%. The model consumes power ≤2W. The receiver and transmitter are identical and equipped with lightning protection.
Specifications
Datasheet: Click here to download
