Dahua PFS3110-8ET, 8-Port PoE Switch 96W
Product description

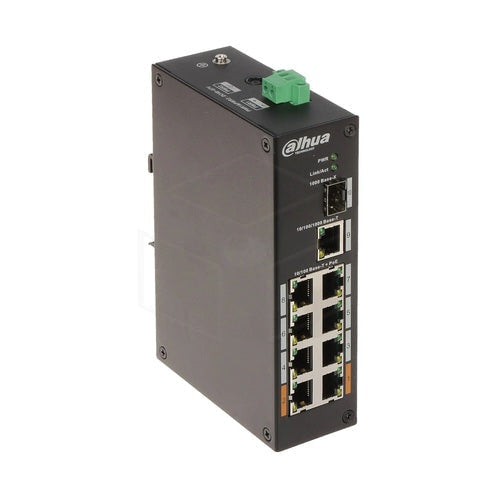

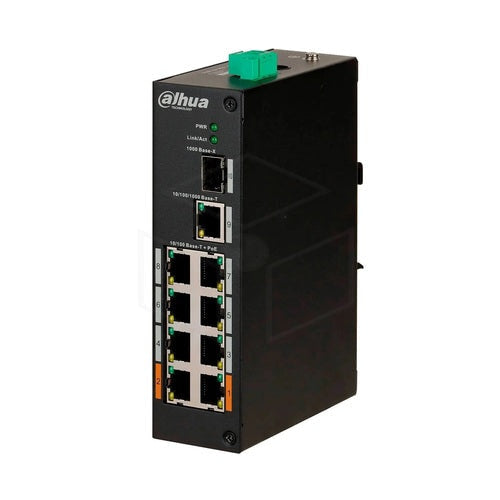

The Dahua DH-PFS3110-8ET-96 is an 8-port unmanaged layer 2 switch. The primary task of this switch is to transmit data and power using PoE technology.

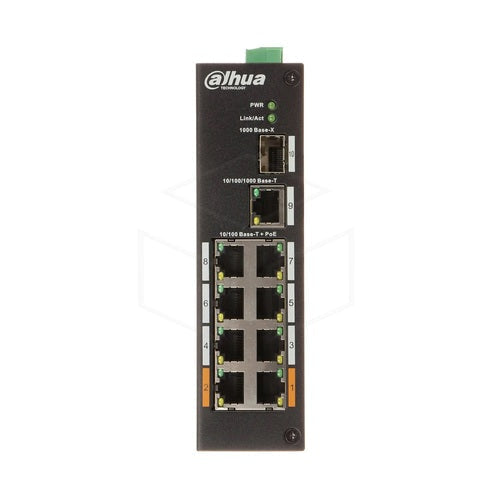

The switch has 8 Ethernet ports with PoE 10/100 Base-T support, one Gigabit Ethernet port, and one SFP port. The maximum bandwidth of the switch is 7.6 Gbit/s. The packet forwarding rate is 4.17 Mpps.
The device features 1 MB of buffer memory. The MAC address table size is 8K. PoE contact pin assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-).

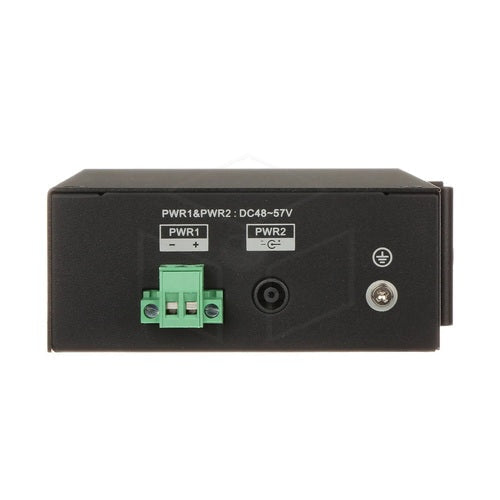

A DC 48V-57V power source is required. Additionally, the switch features lightning protection: 6 kV in common mode, 4 kV in differential mode. Power: ports 1-2 ≤60W; ports 3-8: ≤30W. The total power consumption is a maximum of 96W.
The Dahua DH-PFS3110-8ET-96 switch is designed to create a surveillance system from a network of cameras, with data transmission and power provided via PoE 802.3af/802.3at/Hi-PoE technology.
Furthermore, it serves to provide protection against lightning discharges and voltage and potential differences between devices.

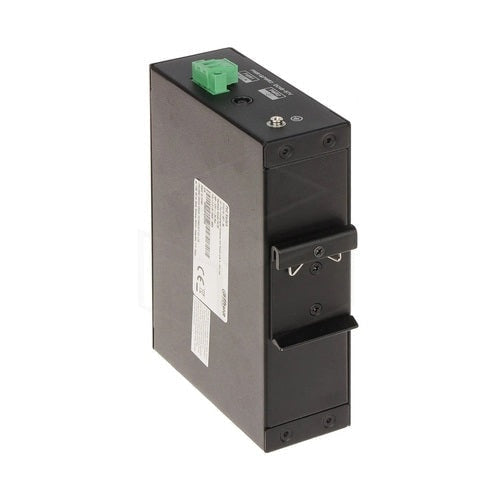

The switch measures 150x100x42 mm, is enclosed in a black metal housing, and is suitable for both indoor and outdoor use in temperatures ranging from -30°C to +65°C.
It supports Plug-and-Play technology, allowing connected devices to function without additional configuration.
Downloads
Datasheet: Click here to download
