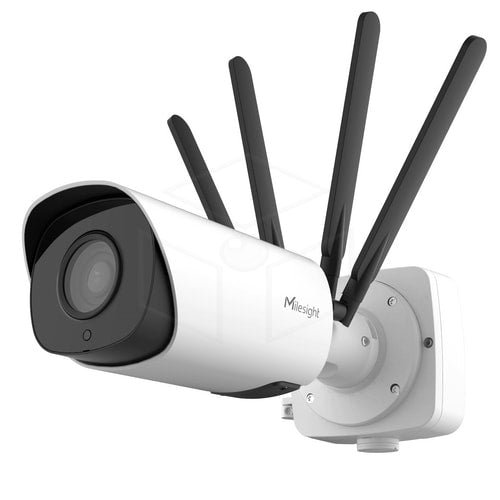

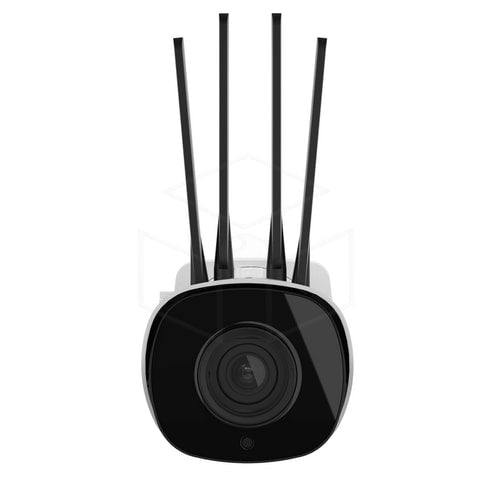

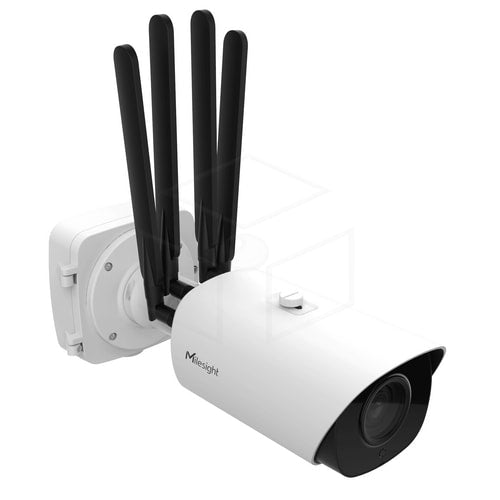

Milesight 2MP 5G AI 12X Pro Bullet Plus Camera (MS-C2966-X12ROPC)
Product description
This professional Milesight IP camera combines sharp 2MP image quality with powerful zoom, high frame rates, and IoT integration. Thanks to its motorized 5.3–64 mm autofocus lens, 50 FPS, and IR range of up to 180 meters, the camera is suitable for situations where both an overview and detail are important.
More features
AI + IoT in one camera
Thanks to AI deep learning, the camera analyzes data in real-time and can automatically generate alerts via various alarm actions. Think of the AI as the brain and the IoT sensors as the senses: together, they form a complete and intelligent security platform.
Powerful LoRaWAN connectivity
The camera features the latest Semtech LoRa chip and a powerful 64-bit quad-core CPU. This allows up to 8 LoRaWAN end devices to provide data simultaneously.
With a range of up to approximately 15 km in open areas, the camera is perfectly suited for large sites, industrial locations, and other applications where reliable wireless IoT connectivity is essential.
Global LoRaWAN support
The camera supports the standard LoRaWAN protocol and encrypted data transmission. Thanks to support for multiple global frequency plans, the solution is widely deployable:
CN470 / RU864 / IN865 / EU868 / AU915 / US915 / KR920 / AS923
Built-in LoRaWAN Network Server
A major advantage is the integrated LoRaWAN Network Server. This allows data to be processed locally between the gateway and the network server, without the need for an external network server. This ensures:
- Less data traffic
- Faster local communication
- Better interoperability
- Simpler IoT integration
- Less dependence on external systems
For connection with existing software and platforms, the camera also supports MQTT, HTTP, and HTTPS APIs.
Specifications
| Model | MS-C2966-X12ROPC |
| Camera | |
| Image sensor | 1/2,8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR (Super WDR Pro is optional for the T series) |
| Shutter speed | 1/100000s-1s |
| Day/night mode | Day/Night/Car/ Adjust/Schedule |
| IR distance | Up to 180 m |
| S/N | >55dB |
| Lens | |
| Lens | 5.3-64mm, 12x optical zoom |
| Field of view | H61 degree -H5 degrees/ D69 degrees -D5 degrees/ V36 degrees-V2 degrees |
| Mounting | diameter |
| Focus control | Auto/Manual |
| Diaphragm | F1.6-F2.8 |
| Iris control | Auto |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Frame rate | 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz:50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary flow | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video compression | H.265+/H.265(HEVC)/ H.264+/H.264/MJPEG |
| Video bitrate | 16Kbps-16Mbps (CBR/VBR adjustable) |
| Privacy masking | Up to 28 areas (24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image settings | Saturation/Brightness/ Contrast/Sharpness |
| Web access | Support IE/Firefox/ Chrome/Safari browser |
| Audio & Interface | |
| Audio compression | G.711/AAC/G.722/G.726 |
| Audio sampling rate | 16/8/32/44 |
| Audio bitrate | 16-256kbps |
| Two-way audio | Support |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio-I/O | 1/1 |
| Alarm-I/O | 1/1 |
| LoRaWAN | |
| Antenna | 1*50ohmSMA-Female External antenna connector |
| Channel | 8 channels simultaneously |
| Demodulation | 1Mhz |
| Frequency band | CN470/IN865/EU868/ RU864/US915/AU915/ KR920/AS923 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output power | 27dBm Max |
| Protocol | V1.0 Class A/Class B/Class C EN v1.0.2 Class A/Class B/Class C |
| Communication range | 15 km |
| Network and intelligent analytics | |
| Network Storage | NAS (NFS, SMB/CIFS support), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Video analysis | Region entry, region exit, Advanced motion detection, Tamper detection, line crossing, Hanging, object left, Object deleted |
| Face detection | Detect and capture faces, get real-time snapshots |
| Counting and reporting people | Count the number of people entering or leaving, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local storage, up to 256G |
| Advanced Feature | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-Flicker, Corridor Mode, Blur, Watermark |
| SIP/VoIP support | Yes, voice and video over IP |
| Event Trigger | Motion detection, network connection, External input, audio alarm, etc. |
| Event Action | FTP upload, SMTP upload, SD card recording, remote output, SIP phone, HTTP notification, etc. |
| System Compatibility | ONVIF profile G & Q & S & T, API |
| General | |
| Working temperature | -40 C to 60 C |
| Working humidity | 0-90% (non-condensing) |
| Power supply | PoE (802.3at) / DC 12V +/- 10% |
| Power consumption | 9W MAX, 15W MAX (with IR on) |
| Surge protection | 4KV |
| Weatherproof | Up to IP67 rating for Weatherproof performance (For camera body only) |
| Dimensions | 320mmX134mmX126mm, 320mmX134mmX292mm (sets 5G-antennas) |
| Weight | 1608g |
