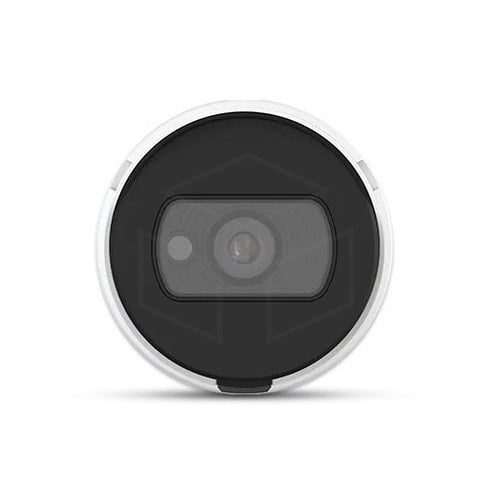

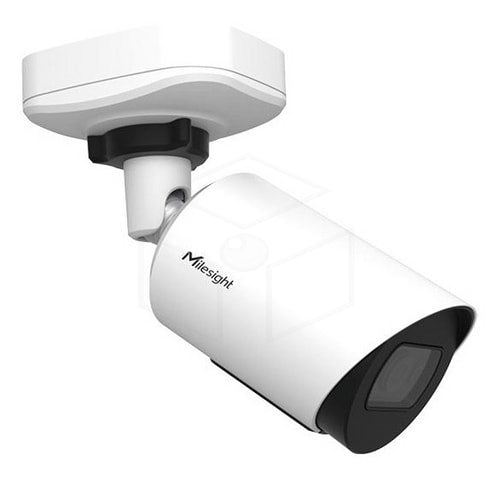

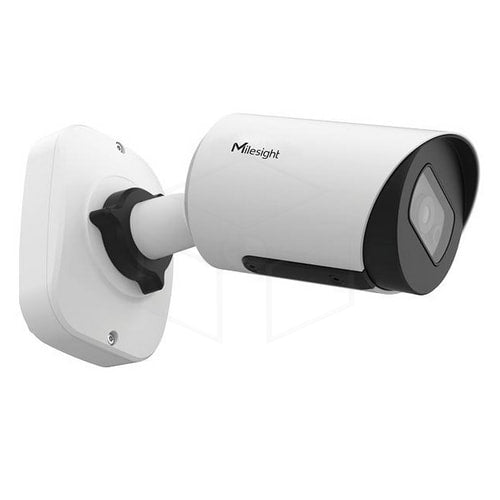

Milesight 2MP Vandal-proof Mini Bullet Camera (MS-C2964-PB)
Product description
The Milesight MS-C2964-PB is a compact and versatile 2MP bullet camera for reliable security, both day and night. Thanks to its fixed 3.6 mm lens, the camera offers a wide 90° field of view, allowing a large area to be monitored with a single camera.
More features
2MP image quality with a wide field of view
The MS-C2964-PB delivers sharp 2MP images and combines this with a fixed 3.6 mm lens. The wide 90° field of view provides an excellent overview, making it ideal for entrances, hallways, shops, commercial premises and other spaces where broad coverage is important.
Excellent images in low light
The camera continues to produce clear images even in low-light conditions. When it gets dark, the integrated IR illumination provides night vision up to 30 metres. This ensures reliable security footage is available day and night.
Flexible storage: NVR or microSD
Camera footage can easily be recorded and played back via an NVR/recorder. Prefer to work without a recorder? The MS-C2964-PB can also be used standalone with a microSD card for local storage.
Specifications
| Model | MS-C2964-PB |
| Camera | |
| Image sensor | 1/2,8" Progressive Scan CMOS |
| Min. Lighting | Color: 0.002 Lux @F1.2, B/W: 0 Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter speed | 1/100000s-1s |
| Day/Night mode | ICR Filter Auto Switch |
| Lens | |
| Lens | 3.6 mm F2.2 |
| Field of vision | H90 degrees/ D105 degrees V48 degrees |
| IR distance | up to 30m |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Frame rate | 30fps@(1920x1080, 1280x960, 1280x720, 704x576), |
| Secondary stream | 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary stream | 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x176) |
| Video compression | H.265+/H.265(HEVC)/ H.264+/H.264/MJPEG |
| Video bitrate | 16Kbps-16Mbps (CBR/VBR configurable) |
| Image settings | Saturation/Brightness/ Contrast/Sharpness |
| Web access | Support for IE/Firefox/ Chrome/Safari browsers |
| Audio & Interface | |
| Audio | Yes, Voice & Video-over-IP |
| Two-way audio | Support |
| Ethernet | 1*RJ45 10M/100M Ethernet port |
| Network and intelligent analysis | |
| Network storage | NAS (support NFS, SMB/CIFS), ANR |
| Network protocols | IPv4/IPv6,TCP,UDP,RTP,RTSP,RTCP, HTTP,HTTPS,DNS,DDNS,DHCP, FTP,NTP,SMTP,SNMP, UPnP, SIP,PPPoE,VLAN,802.1x,QoS,IGMP,ICMP,SSL |
| Video analysis | Region entry, region exit, Advanced motion detection, Tamper detection, line crossing, Hovering, object left, Object removed |
| Face detection | Poeple Counter |
| System | |
| Storage | Supports microSD/SDHC/SDXC card local storage, up to 128G |
| Advanced feature | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP address filtering, AGC, anti-flicker, gang mode, Fading, watermark |
| SIP/VoIP support | Yes, voice and video over IP |
| Event trigger | Motion detection, network connection, etc. |
| Event action | FTP upload, SMTP upload, SD card recording, SIP phone, |
| System compatibility | ONVIF profile S & G |
| General | |
| Operating temperature | -40 C to 60 C |
| Operating humidity | 0-90% (non-condensing) |
| Power supply | PoE (802.3at) |
| Power consumption | 3W MAX, 5W MAX (with IR on) |
| Weatherproof | Up to IP67 rating for weather-resistant performance |
| Housing | Vandalism-resistant IK10-classified metal housing |
| Weight | 450g |
