Milesight VS132 AI WORKPLACE 3D TOF LORAWAN SENSOR FOR PEOPLE COUNTING

Product Description

The Milesight VS132-868M is an advanced LoRaWAN 3D ToF people counting sensor for accurately counting individuals entering and exiting a room. Thanks to Time-of-Flight technology, the sensor processes only 3D depth data rather than camera footage. This ensures the privacy of visitors remains fully protected while achieving a detection accuracy of up to 99.5%.

More features

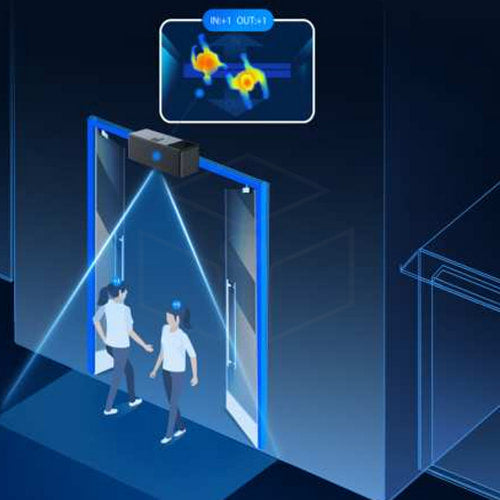

3D ToF technology for high-precision counting
The sensor measures the time required for near-infrared light to reach an object and return. Based on this information, an accurate 3D depth image is constructed.

The result: a reliable people counter with an accuracy of up to 99.5%.

100% anonymous and GDPR-compliant
Privacy is paramount. The VS132-868M processes only 3D depth information and does not record any personally identifiable images. Combined with LoRaWAN communication, this offers a privacy-friendly solution for counting visitors.

Ideal for locations where insight into visitor flows is important, without compromising visitor privacy.

Large detection area
Thanks to a horizontal viewing angle of 92.5°, a vertical viewing angle of 67°, and a detection range of up to 3 meters, the VS132 can monitor an area of up to approximately 25 m².

Smart U-turn detection
The intelligent U-turn detection prevents individuals walking back or wandering around an entrance from being incorrectly registered multiple times.

This allows the sensor to better distinguish between actual entrances and exits and limits false-positive counts.

Reliable day and night
Because the VS132-868M uses its own near-infrared light source, the sensor is independent of ambient light. People can therefore be detected even in complete darkness.

Local data storage
The sensor features local storage for up to 1 million data records. This ensures that statistics remain available, even when there is temporarily no network connection.
