Milesight 5MP AI Vandal-proof Mini Bullet Camera (MS-C5364-PC)

Regular price €138,- €0,- Unit price per
Tax included. Shipping calculated at checkout.

Op werkdagen vóór 14:00 uur besteld?
Verwachte levering binnen 1–2 werkdagen.

Product description

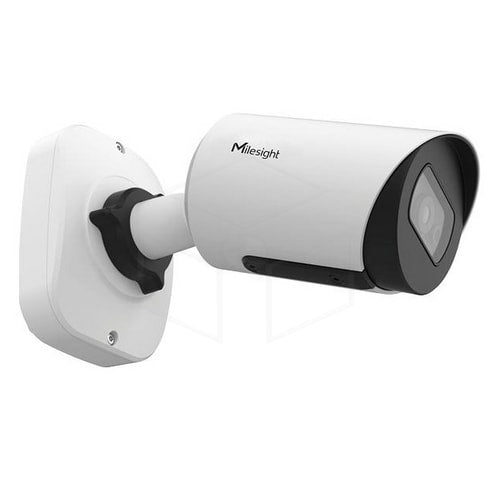

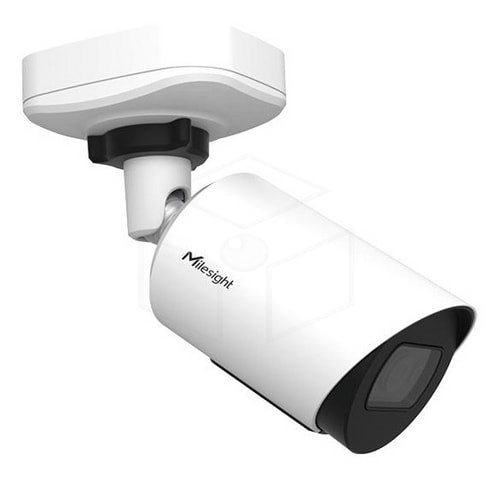

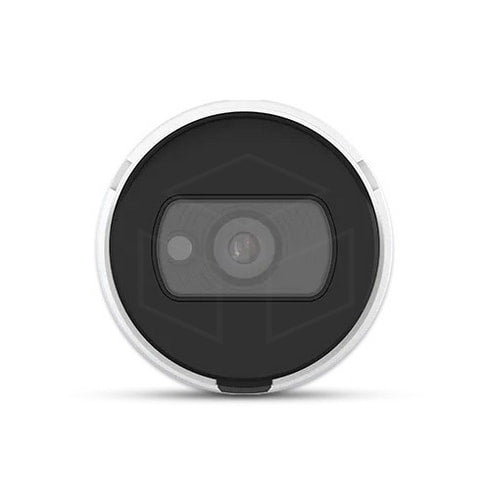

The Milesight MS-C5364-PC is a compact, rugged bullet camera from the AI series, designed for professional indoor and outdoor security. With its 5MP resolution, fixed 2.8mm lens and wide 105° field of view, it provides a clear, expansive view of the area being monitored.

More features

5MP image quality with a wide field of view
With a 5-megapixel resolution, the MS-C5364-PC delivers sharp, detailed images. The fixed 2.8mm lens offers a wide 105° field of view, ideal for entrances, business premises, parking lots and other locations where a broad view is desired.

Excellent image quality in low light
The camera is designed to deliver clear images even in minimal light. When it gets dark, the integrated night vision provides a range of up to 30 metres, ensuring reliable visibility at night too.

Flexible storage
Footage can be stored centrally and reviewed via an NVR/recorder. Prefer a standalone installation? The MS-C5364-PC supports microSD storage, so a recorder is not required.

Suitable for indoor and outdoor use
Thanks to its robust, vandal-resistant housing, this bullet camera is suitable for both indoor and outdoor applications. A reliable choice for professional security where durability matters.

Smart PoE mounting box
The camera comes standard with a mounting box featuring an internal PoE port. The network cable connects directly to the circuit board. This avoids unnecessary cable clutter and keeps the installation compact, tidy and professional.

Specifications

Model MS-C5364-PC
Camera
Name 5MP AI Vandal-proof Mini Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.008Lux @F1.6
B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 2.8mm @F1.6
Mount M12
Field of View H105°/D131°/V78°(2.8mm)
H86°/D108°/V63°(4mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/
Schedule
IR Distance Up to 30m
S/N >55dB
Video
Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)

50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)

50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)

50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/
H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/
Sharpness
Interface
Ethernet 1*RJ45 10M/100M Ethernet Port
Network
Network Storage NAS (Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP,
Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting &Report Count the number of people entering or exiting
Face Detection Detect and capture faces, getreal-time snapshots
System
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2DDNR, 3DDNR, Defog, AWB, EIS, IPAddress Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General
Working Temperature -40℃∼60℃
Working Humidity 0∼90% (Non-condensing)
Power Supply PoE(802.3af)
Power Consumption 5W MAX, 7W MAX (With IR on)
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Weight Approx. 610g (Junction Box Version) / Approx. 450g (Cable Out Version)
Dimensions 97mmX74mmX180mm(Junction Box Version) / 64mmX64mmX160mm(Cable Out Version)
