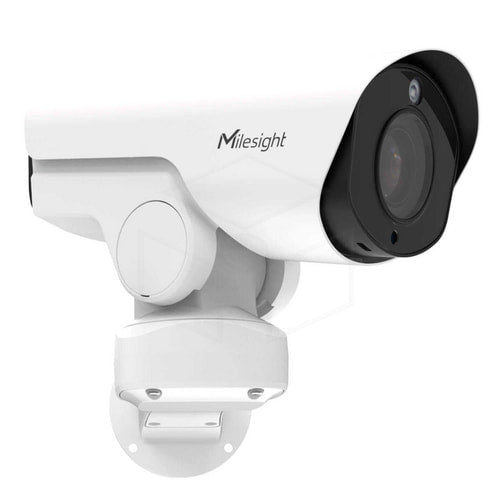

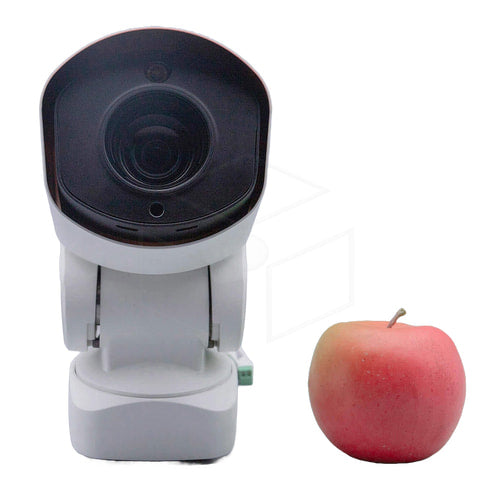

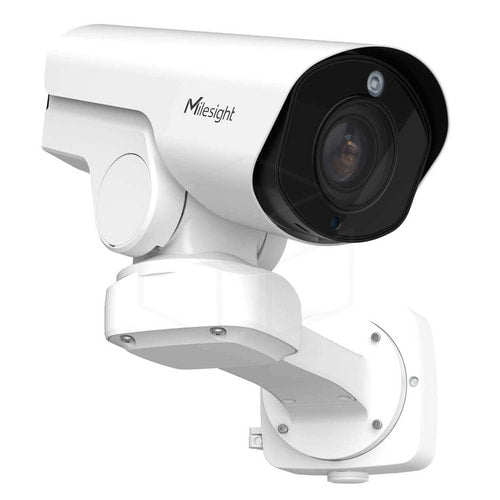

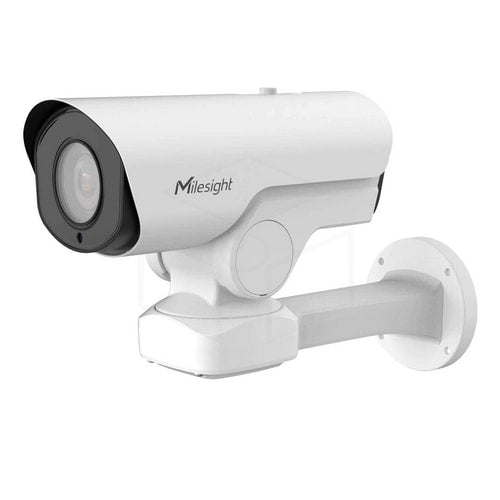

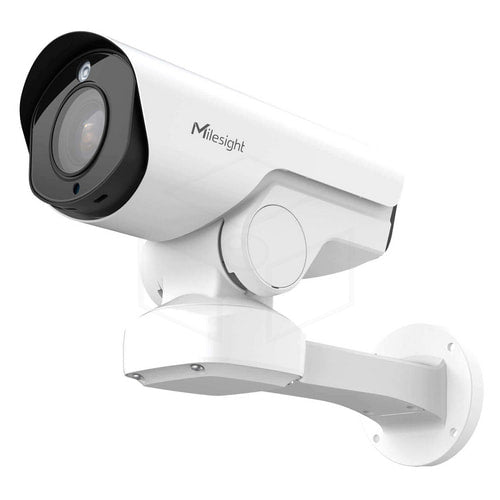

Milesight 8MP 20x Mini PTZ Bullet camera (MS-C8267-X20PE)
Product Description
The Milesight AI PTZ Bullet Plus is an advanced PTZ security camera for professional video surveillance of large grounds, access points, gates, and locations where the camera is positioned at a greater distance from the area being monitored. Thanks to the updated rotating mechanism, 360° rotation, a tilt angle of -45° to 30°, and an impressive 20x optical zoom, large areas can be monitored accurately from a distance.
The powerful combination of PTZ functionality, intelligent AI detection, and advanced night illumination makes this camera suitable for situations where both a wide range and detailed image analysis are important.
More features
20x optical zoom and flexible PTZ control
With the 20x optical zoom, objects and people at a greater distance can be captured in detail without losing the image quality of digital zoom. The camera can be rotated horizontally 360° remotely and tilted vertically from -45° to 30°.
Thanks to this PTZ functionality, the user can quickly select a specific part of a site and aim the camera precisely. This makes the Milesight AI PTZ Bullet Plus particularly suitable for applications such as access gates, business premises, parking lots, and other large outdoor locations.
Powerful night vision up to 180 meters
For surveillance in the dark, the camera is equipped with powerful IR illumination with a range of up to 180 meters. This allows clear images to be captured even at a great distance when there is little or no ambient light present.
In addition, the camera features a white LED light. This can be used to actively illuminate an area, but also as a visual deterrent when unwanted activity is detected.
Intelligent AI detection
The built-in AI technology ensures that the camera can better distinguish relevant events from unimportant movements. The AI can separately detect people, vehicles, and faces, among other things. Background noises can also be intelligently recognized.
This intelligent analysis significantly reduces the number of unnecessary alarm notifications. Furthermore, it becomes easier to find and assess relevant camera footage, allowing security personnel to work more efficiently.
Preset positions and automatic patrol
The Milesight AI PTZ Bullet Plus supports preset PTZ positions. This allows the camera to be quickly directed to important observation points.
With the patrol function, the camera can also automatically cycle through various preset positions. This is ideal for continuous monitoring of multiple zones within a large site without the need to operate the camera manually.
Ideal for gates, grounds, and large outdoor locations
The combination of a long optical zoom, wide rotation range, powerful night lighting, and AI detection makes the Milesight AI PTZ Bullet Plus a versatile solution for professional security.
- The camera is suitable for:
- Monitoring of access gates and entrances
- Business premises and industrial sites
- Large parking areas
- Perimeters and access roads
- Grounds where objects need to be monitored at a greater distance
- Locations where automatic patrols are desired
- Professional outdoor security with intelligent AI detection
Specifications
| Model | MS-C8267-X20PE |
| Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination |
Color: 0.009Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| DORI Distance |
D: 152~2670m O: 59.5~1050m R: 30~526m l: 15~263m |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 6.4~128mm, 20X Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) |
| Field of View | H60°~H3.7°/D67°~D4.2°/V37°~V2.1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/2000mm (Wide/Tele) |
| Aperture | F1.6~F4.0 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream |
60Hz: 30fps@(3840x2160,3072x2048, 2592x1944,2592x1520, 2048x1536,1920x1080, 1280x960,1280x720, 704x576) 50Hz: 25fps@(3840x2160,3072x2048, 2592x1944,2592x1520, 2048x1536,1920x1080, 1280x960,1280x720, 704x576) |
| Secondary Stream |
60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream |
60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Standard) |
| Alarm I/O | 1/1 (Standard) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction |
Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report |
Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, External Input, External Output, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption |
Min.: 12.5W (DC 12V), 15W(PoE) Max.: 21W (DC 12V), 25W(PoE) |
| Weight | Approx. 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP66 |
