Milesight MS-C8165-PA AI 180° Panoramic Mini Bullet 4K
Product description

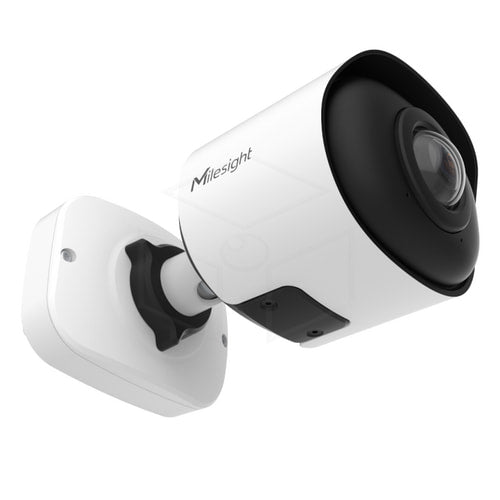

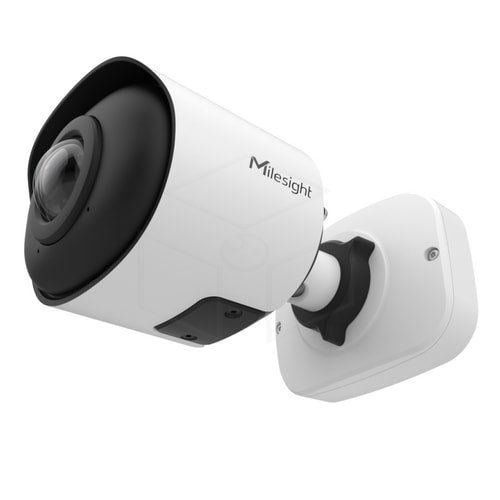

The Milesight MS-C8165-PA combines a compact, stylish design with powerful panoramic imaging technology. With its 8MP resolution and 180° field of view, this mini bullet camera can monitor almost an entire room on its own. Ideal for situations where a wide viewing angle and razor-sharp detail are essential.
More features
8MP Ultra HD with 180° panoramic view
The integrated 8MP panoramic camera delivers detailed, clear images. Its 180° horizontal coverage provides an extremely wide overview, enabling large spaces to be monitored efficiently while reducing the number of cameras required.
Smart IR – reliable night vision up to 15 metres
Security remains active even in complete darkness. Smart IR illumination switches on automatically and provides night vision up to 15 metres, keeping people and objects clearly visible at night.
Flexible storage and installation
Footage can be recorded via an NVR/recorder, but the MS-C8165-PA can also operate completely independently thanks to support for a microSD card. This makes the camera suitable for a wide range of security installations.
For indoor and outdoor use
Thanks to its robust, vandal-resistant design, the MS-C8165-PA is suitable for both indoor and outdoor applications. Its compact housing also makes it easy to integrate into different environments.
Specifications
| Model | MS-C8165-PA |
| Camera | |
| Name | 4K AI 180° Panoramic Mini Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.012Lux@F2.0, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 1.68mm @F2.0 |
| Mount | M12 |
| Field of View | H180°/V86° |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 15m |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz/50Hz: 25fps@(3840x2160,3440x1936,3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz/50Hz:25fps@(704x576, 640x480, 640x360） |
| Tertiary Stream | 60Hz/50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas |
| ROI | Up to 8 Areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio Interface | Built-in Microphone |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB,IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE(802.3af)/DC 12V±10% |
| Power Consumption | 6W MAX 9W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Dimensions | 95.8mmX74mmX158.5mm |
| Weight | 630g |
