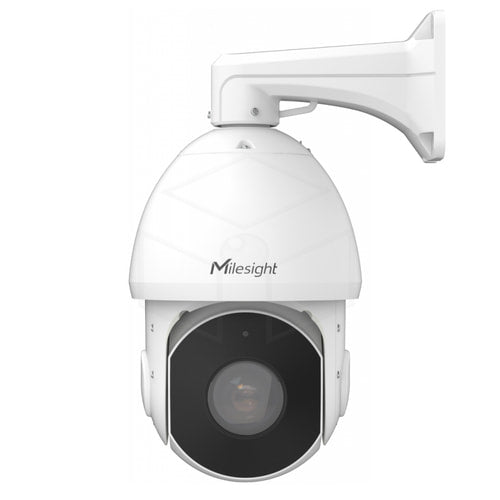

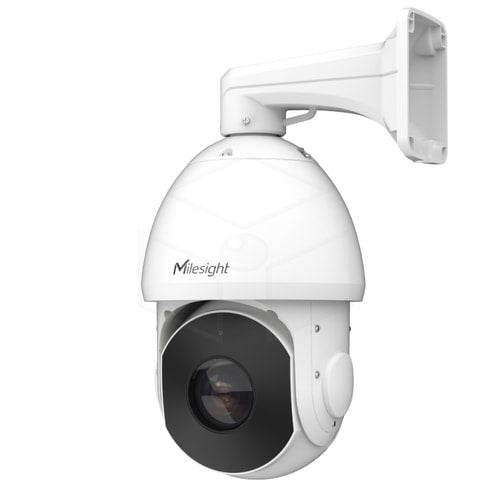

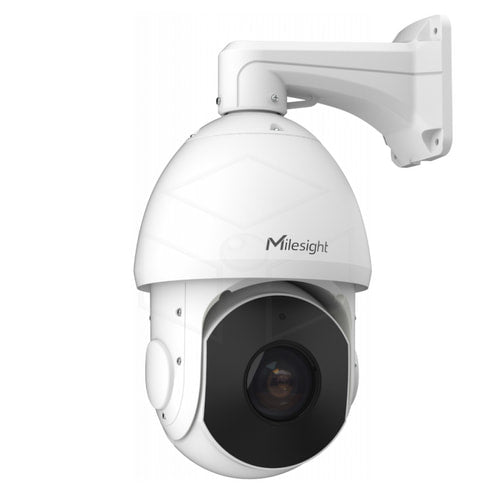

Milesight MS-C8241-X36PE 4K AI 36X Speed Dome Camera
Product Description
Are you looking for a professional PTZ camera for site surveillance? This powerful 8 MP speed dome network camera combines high image resolution with 36× optical zoom, intelligent image analysis, and advanced night vision technology. Thanks to the 360° PTZ monitoring, a large area can be effectively monitored from a single camera.
More Features
8 MP camera with powerful 36× optical zoom
With a resolution of 8 MP, this IP camera delivers detailed images, while the 36× optical zoom makes it possible to view subjects at a great distance with precision. Unlike digital zoom, image quality remains optimally preserved when zooming in optically.
The PTZ function makes it possible to move the camera horizontally and vertically, allowing you to quickly switch between different parts of the site.
Excellent image quality in low light
The advanced lens is designed to maintain color images for as long as possible, even in very low ambient light. This makes key details more recognizable when traditional security cameras have already switched to black and white.
Thanks to 120 dB Super WDR Pro, both dark and very bright parts of the image are rendered better. This is particularly practical in situations with strong backlighting, such as at entrances, parking lots, and outdoor sites.
Night vision up to 300 meters
For reliable security in the dark, the camera is equipped with Smart IR II. The infrared illumination offers a range of up to 300 meters, allowing large outdoor sites to also be effectively monitored at night.
Intelligent AI and automatic PTZ tracking
The built-in AI technology for image analysis helps to recognize and analyze events. In combination with intelligent motion detection, the camera can respond specifically to relevant movements.
With automatic PTZ tracking, the camera follows moving objects quickly and accurately. Thanks to 3D positioning, it is also easy to direct the camera precisely to a specific point in the image.
Simple installation thanks to PoE
The camera supports Power over Ethernet (PoE). This allows network communication and power supply to be handled via a single network cable. This makes the installation cleaner and can limit the amount of cabling.
Ideal for professional security
This 8 MP PTZ IP camera with 36× zoom is suitable for diverse applications, including:
- Professional site surveillance
- Business parks and industrial sites
- Parking lots
- Logistics centers and storage areas
- Ports and large outdoor areas
- Security for access roads and perimeters
- Situations where tracking and long-distance surveillance are important
Specifications
| Model | MS-C8241-X36PE |
| Camera | |
| Name | 4K 36X AI Speed Dome Network Camera |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.009Lux @F1.55, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| DORI Distance |
D: 151~4240m O: 59.5~1670m R: 30~835m l: 15~417m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Digital Zoom | 16X |
| Lens | |
| Focal Length | 5.7∼205.2mm, 36X Optical Zoom |
| Zoom Speed | Approx 7s(Wide-Tele) |
| Field of View | H65°~H2.3°/D72°~D2.6°/ V40°~V1.3° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1500/1500mm (Wide/Tele) |
| Aperture | F1.55∼F4.8 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼250°/s, Pan Preset Speed: 250°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.5°∼160°/s, Tilt Preset Speed: 160°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| IR | |
| Irradiation Distance | Up to 300m |
| Irradiation Angle | Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream |
60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream |
60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream |
60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression |
H.265+/H.265(HEVC)/H.264+/H.264/ MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings |
Saturation/Brightness/Contrast/ Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Standard) |
| Alarm I/O | 4/2 (Standard) |
| RS485 | Standard |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction |
Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report |
Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, External Output, External Input, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, Snapshot, SMTP Upload Record, SD Card Record, SIP Phone, Play Audio , PTZ Motion, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ AC 24V/ DC 24V/ 3A ±10% |
| Power Consumption |
Min.: 11.5W (DC 24V / AC 24V), 14.5W(PoE) Max.: 24.5W (DC 24V / AC 24V), 28.4W(PoE) |
| Heater | Support |
| Wiper (Optional) | Support |
