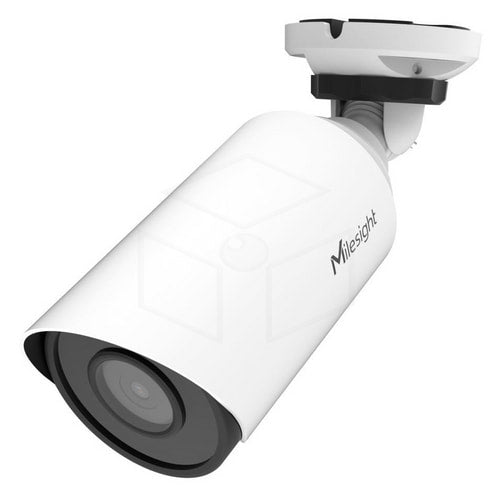

Milesight MS-C8163-PE 8MP AI Weatherproof Mini Bullet Camera
Product Description
The Milesight 4K AI weather-proof mini network camera offers a powerful combination of 4K image quality, excellent low-light performance, efficient H.265+ compression, and intelligent AI analysis. This makes this compact 4K IP camera an excellent choice for professional security, access management, site monitoring, and applications where reliable image analysis is essential.
The Milesight 4K AI mini network camera combines high-quality 4K image quality with advanced AI technology in a compact and weather-proof housing. With a resolution of 3840 × 2160 pixels, this IP camera delivers up to four times more detail than Full HD. Thanks to a frame rate of 30 fps, moving images are also displayed smoothly and sharply.
This compact 4K security camera is suitable for a wide range of applications where reliable video surveillance, excellent image quality, and intelligent analysis are important.
More features
Excellent image quality, even in low light
The Milesight mini network camera stands out for its excellent performance in very low ambient light. Even at light levels down to 0.01 lux, the camera can continue to capture color images. While many traditional cameras switch to black and white in such conditions, this camera retains as much color and detail as possible.
The camera also provides reliable surveillance in total darkness. With infrared illumination, images can be captured at distances up to 50 meters, allowing larger sites and poorly lit locations to be monitored effectively.
4K Ultra HD at 30 fps
With a 4K Ultra HD resolution of 3840 × 2160 pixels, this Milesight camera delivers highly detailed video images. The 30 fps frame rate ensures smooth images, even when people, vehicles, or other objects are moving quickly through the frame.
The high resolution also makes it easier to recognize important details and analyze images more accurately afterwards.
Efficient H.265+ video compression
The camera uses advanced H.265+ compression technology. This allows video images to be stored more efficiently, requiring less storage space and bandwidth without compromising the high image quality.
This makes the Milesight 4K AI network camera particularly suitable for professional video surveillance systems where large amounts of camera footage are stored.
Intelligent AI video surveillance
Thanks to the integrated AI chip, this camera goes beyond traditional video surveillance. The built-in intelligent functions support, among other things, VCA (Video Content Analysis) and people counting.
This allows camera footage to be automatically analyzed and relevant information to be extracted from video images. People counting, for example, is interesting for access management, visitor analysis, and optimizing business processes.
Compact and weather-proof
Despite its compact size, the Milesight 4K AI mini network camera is designed for reliable use in various conditions. The weather-proof design makes the camera suitable for applications where both indoor and outdoor surveillance are required.
Thanks to the combination of a compact design, 4K resolution, excellent low-light performance, and intelligent AI functionalities, this camera is a versatile solution for modern security systems.
Specifications
| Model | MS-C8163-PE |
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.012Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s-1s |
| IR Distance | Up to 50 m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | 2.8mm |
| P-Iris | Yes |
| Field of View | H110°/D126°/V60° |
| Mount | Φ12 |
| Focus Control | Auto/Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/ H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/ Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Multi-interfaceVersion) |
| Alarm I/O | 1/1 (Multi-interfaceVersion) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition |
Detect and capture faces,get real-time snapshots; The attributes include Age,Gender,Glasses,Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc |
| Event Action | FTP upload, SMTP upload, SD card recording, external output, SIP phone, HTTP notification, etc. |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| Working Temperature | -40℃-60℃ |
| Working Humidity | 0~95% (non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V ± 10% |
| Power Consumption | 7W MAX 10W MAX (With IR on) |
| Housing | Vandal-proof metal housing with IK10 rating / Up to IP67 rating for weather-proof performance |
| Weight | 750 grams |
| Dimensions | Φ76mmX214.5mm |
