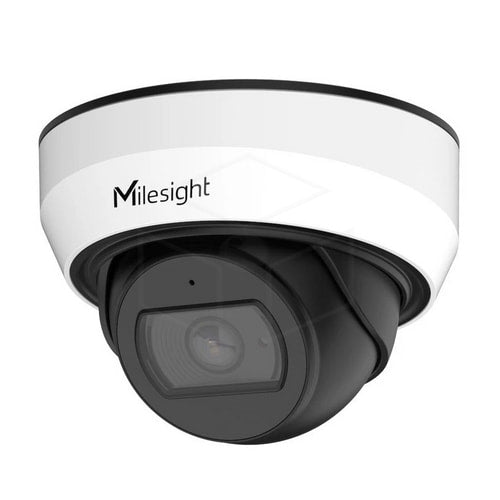

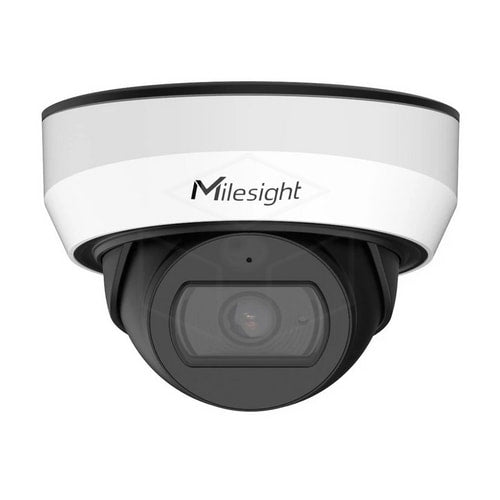

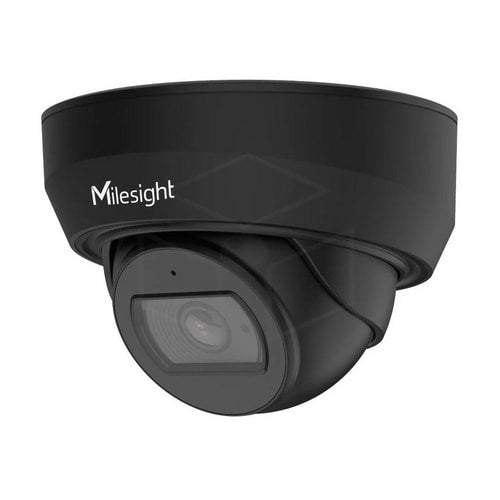

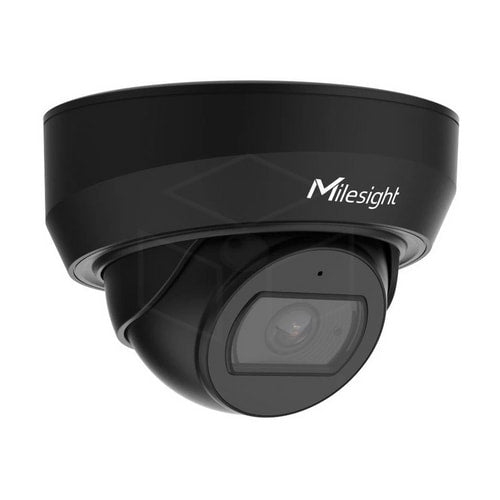

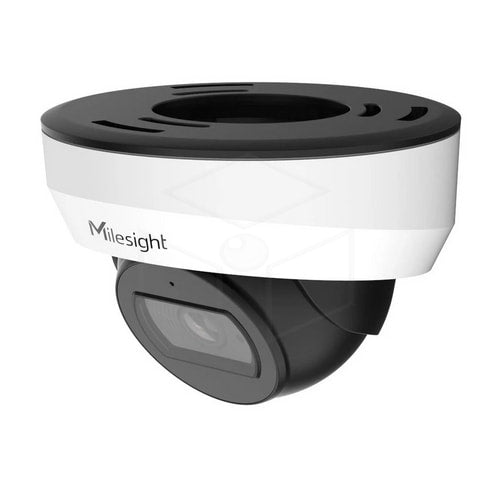

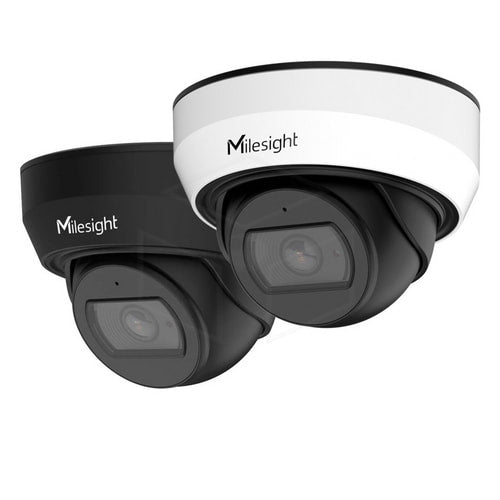

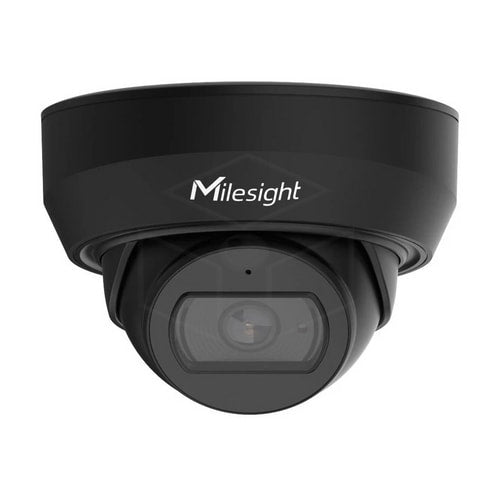

Milesight MS-C8175-PD AI Weatherproof Mini Dome 8MP (4K)
Product description
The Milesight MS-C8175-PD is a powerful AI mini-dome IP camera for professional video surveillance. Thanks to the combination of 8MP Ultra HD/4K, advanced AI analysis, and a weatherproof housing, this security camera offers reliable monitoring for both indoor and outdoor applications.
Choose the Milesight MS-C8175-PD today and give your security system the power of intelligent AI video surveillance.
More features
Intelligent AI security camera
The built-in AI technology enables accurate human and vehicle detection. This allows relevant events to be recognized faster and reduces unnecessary motion notifications.
The MS-C8175-PD supports, among other things:
- Human detection
- Vehicle detection
- Advanced motion detection
- Region entrance and exiting detection
- Loitering detection
8MP 4K image quality
With 8MP Ultra HD/4K resolution, this Milesight IP camera delivers sharp and detailed images. Super WDR and 3D noise reduction provide better image quality in difficult lighting conditions.
The large 1/1.8" image sensor contributes to excellent image reproduction and high detail recognition, both day and night.
IP67 weatherproof dome camera
The robust IP67-rated housing protects the camera against dust and water. This makes the MS-C8175-PD suitable for reliable security in various conditions, including professional outdoor applications.
The compact mini-dome design also ensures discreet installation.
Simple installation with PoE
Thanks to Power over Ethernet (PoE), power and network data are supplied via a single cable. This makes installation easier and more organized, without the need for a separate power cable.
Specifications
| Model | MS-C8175-PD |
| Camera | |
| Name | 4K AI Weather-proof Mini Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination |
Color: 0.012Lux @F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 2.8mm/4mm @F1.6 |
| Mount | M12 |
| Field of View |
H110°/D126°/V60°(2.8mm) H91°/D106°/V50°(4mm) |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Distance | Up to 25m |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576), 20fps@(3840x2160)(Optional for S Series) |
| Secondary Stream |
60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288) |
| Tertiary Stream |
60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) |
| Video Compression |
H.265+/H.265(HEVC)/H.264+/ H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Settings |
Saturation/Brightness/Contrast/ Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR,Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Network | |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Build-in Microphone | Support |
| Intelligent Analytics | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting &Report | Count the number of people entering or exiting |
| Basic Event | |
| Event Trigger | Motion Detection, Tamper Detection, Audio Alarm |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, SIP Phone, HTTP Notification |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| System Compatibility | ONVIF Profile G & S & T & M, API |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90% (Non-condensing) |
| Power Supply | PoE(802.3af) |
| Power Consumption | 4.6W MAX, 6.6W MAX (With IR on) |
| Housing | Vandal-proof IK10-rated metal housing / Up to IP67-rated for weather-resistant performance |
| Weight | Approx. 600g(Junction Box Version) / Approx. 410g(Cable Out Version) |
| Dimensions | Φ108mmX96.5mm(Junction Box Version) / Φ106mmX76.5mm(Cable Out Version) |
