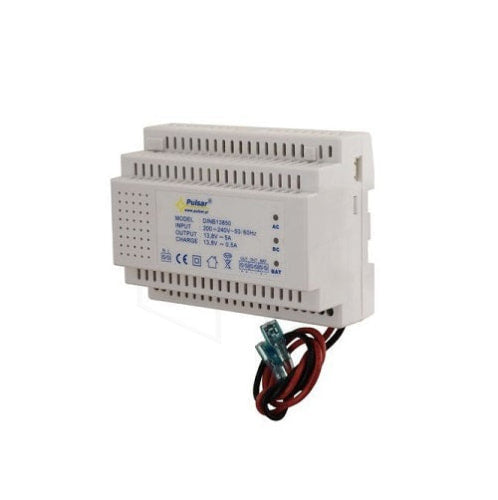

Pulsar DINB 13.8V/5A backup sources on DIN rail - DINB13850

Product Description

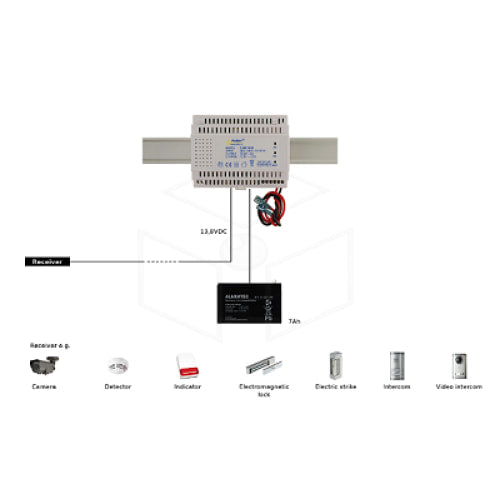

The buffer power supply is designed for uninterrupted power supply of devices that require a stabilized voltage of 12V.
Direct current (+/-15%). The PSU delivers a voltage of 13.8V DC with a current efficiency of I = 5A + 0.5A battery charging*.
In the event of a power failure, the device immediately switches to battery power. The PSU is equipped with short
circuit protection and overload. The power supply unit is housed in a plastic housing designed for DIN TH35
rail mounting (35 mm wide).

During normal operation, the total current drawn by the device must not exceed I=5A. The maximum
Battery charging current is 0.5A. Total current of receivers + battery is max. 5.5A*.

More features

• DC 13.8V/5A* uninterrupted power supply + 0.5A battery charging current
• universal power supply voltage range AC 176÷264V
• high efficiency 85%
• battery charging and maintenance check
• protection against deep discharge (UVP)
• battery output protection against short circuit and reverse polarity connection
• DIN rail mounting
• LED optical indication
• protection type:
• short circuit protection SCP
• surge protection
• overload protection OLP
