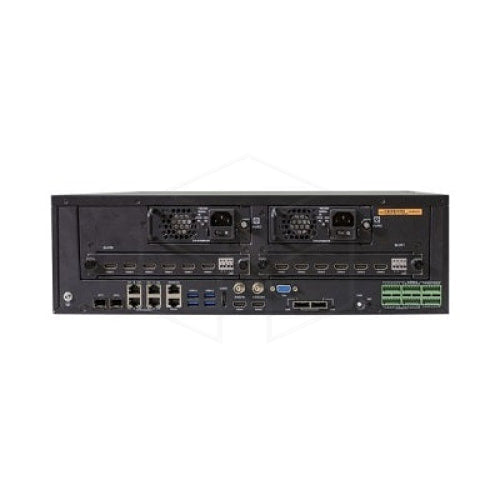

UNIView 128 Channel NVR (NVR516-128)

Product Description

The NVR516-128 is a powerful 128-channel recorder for recording security images. The recorder supports a resolution of up to 12MP on a maximum of 128 channels. The recorder is supplied in a 19" housing, making it easy to place in a patch cabinet.

Due to the size of the housing, it is possible to place up to 16 hard drives (3.5 inch). Each drive may have a maximum size of 10Tb, allowing a maximum storage capacity of up to 160Tb. The recorder supports hot-swap for the hard drives and can be set according to a RAID 0, 1, 5, 6 or 10 configuration.

In addition to connecting UNV and TPV cameras, this recorder can also connect other brands using an ONVIF protocol. The recorder supports ONVIF cameras with an S, G and T standard. In addition, the model also supports ANR and DEWARPING functions.

UNV 516 Series NVRs have many VCA detection and search capabilities for IP cameras with a wide range of smart functions. For example, face recognition, intrusion detection, scene change, crossing line detection, audio exception, defocus detection.

The recorder is equipped with 5 network connections, 1 for connection to a router and 4 to build a network by means of (PoE) switches. The built-in DHCP lease function ensures that cameras will automatically obtain an IP address. There are also 2 SFP ports that can be equipped with a fiber optic converter to provide fast data transfer.

The recorder is equipped with 1 VGA and 2 HDMI outputs as standard. The HDMI outputs can be programmed separately, allowing two different image displays to be set. Optionally, 2 expansion cards can be installed so that the recorder is provided with 6 or 12 extra HDMI outputs. It is also possible to provide the recorder with a second power supply, making the recorder redundant.

Specifications
