Product description
Keep intruders away from your property with our most compact active deterrence camera yet. Uniview's IPC2128SB-ADF28KMC-I0 is a compact and attractive Tri-Guard bullet camera with a fixed lens featuring sharp 4K Ultra HD resolution, 30' IR range, IP67 weather resistance, and more.
With active deterrence features, you can sound an alarm or flash the built-in spotlights to let potential intruders know that you are recording their every move. This is great for many situations where you want your security cameras to really stand out and actively deter potential crime.
With deep learning artificial intelligence, this IP security camera can distinguish between human movement, vehicle movement, and irrelevant types of movement. This makes your active deterrence camera much more reliable. You don't have to worry about the lights flashing or the alarm going off when a stray cat walks across your parking lot.
The IPC2128SB-ADF28KMC-I0 is powerful and reliable and makes a perfect addition to your video surveillance system. With its microSD card slot, which can hold up to 512 GB of storage, you can also set it up as a standalone camera. So don't wait any longer. Make your deterrence even more active today with Uniview's active deterrence bullet security camera.
More features
4K ULTRA HD Resolution
The IPC2128SB-ADF28KMC-I0 captures video at a resolution of up to 4K @ 20 FPS, which is 3840x2160 pixels. Every pixel added to your camera's image gives you higher image quality and more details. So with 4K, you get a sharper, cleaner, and more detailed image.
2.8 MM Fixed Lens
The IPC2128SB-ADF28KMC-I0 has a 2.8mm Fixed Lens. This means it is fixed at one length; It cannot optically zoom in and out. The longer the focal length on a fixed lens camera, the more zoomed in it is and the more close-up details you can see. But the shorter the focal length, the wider the field of view and the larger the area your surveillance will cover.
The IPC2128SB-ADF28KMC-I0 has a horizontal field of view of 112.4°.
2-way audio
The IPC2128SB-ADF28KMC-I0 has a built-in microphone and speaker with which you can easily communicate with family members, pets, colleagues, or even intruders. The clear, crisp 2-way audio makes this camera perfect for access points to your home or business, baby or pet phones, and much more!
Complies with NDAA Guidelines
This model complies with the NDAA (National Defense Authorization Act), which means it is safe to use and install on U.S. government property. It is built with trusted and reliable technology at its core.
P67 Weather Resistance Rating
This camera has an Ingress Protection (IP) rating of 67. This means the camera is fully protected against dust and other solid particles. It is also resistant to immersion in 3 feet of water for up to 30 minutes.
You can be sure that when you install this camera outdoors, it will have no problem withstanding the heaviest storms.
UP TO 30m IR NIGHT VISION RANGE
When the sun goes down or the lights go out, this camera turns on its built-in infrared LED lights. These lights, which are invisible to the human eye, ensure that the camera can continue to operate 24/7 and record video, day and night. And since the IR range covers up to 30 meters, you won't miss anything happening on your camera feeds, even if it happens in pitch-black darkness.
Plug & Play
If you are creating a new system with our Uniview cameras, installation is incredibly easy with our Uniview line of POE NVRs. Simply connect the camera to the back of the Uniview NVR and you will immediately have video on the recorder's HDMI interface. You can also view and manage the NVR via free desktop and mobile apps, such as EZView and EZStation.
ONVIF Compatibility
If you want to add this camera to an already set up security system, that is no problem. This camera complies with the protocols established by the Open Network Video Interface Forum (ONVIF). This means that as long as your current recorder is ONVIF-compatible, you can set up this camera with your current system.
Remote Access
The IPC3638SB-ADZK-I0 is part of our Uniview product line. As such, it is packed with features that would please a power user, but it is simple enough to operate for a beginner. Easily view and manage your cameras and recorders anywhere in the world with the free mobile and desktop applications. For the experienced user, these apps give you the ability to directly adjust advanced settings. For the beginner, you can use the apps to easily view live feeds and play back recorded video. Whatever you need to achieve, it is all within reach.
Specifications
| Camera | |
| Model | IPC2128SB-ADF28KMC-I0 |
| Maximum resolution | 8 MP |
| Sensor | 1/2.7" CMOS |
| Minimum illumination | Color: 0.0025 Lux (F1.6, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with automatic switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | >52 dB |
| WDR | 120 dB |
| Lens | |
| Focal length | 2.8 mm |
| Iris type | Fixed |
| Iris | F1.6 |
| Field of view (H) | 112.4° |
| Field of view (V) | 60.1° |
| Field of view (D) | 146.1° |
| Lens type | Fixed |
| DORI | |
| DORI distance (lens) | 2.8 mm |
| DORI distance (detection) | 84.0 m (275.6 ft.) |
| DORI distance (observation) | 33.6 m (110.2 ft.) |
| DORI distance (recognition) | 16.8 m (55.1 ft.) |
| DORI distance (identification) | 8.4 m (27.6 ft.) |
| Illuminator | |
| Supplementary lighting | Dual lighting |
| Illumination distance (IR) | 30 m (98.4 ft) |
| Illumination distance (white light) | 30 m (98.4 ft) |
| Light on/off switch | Auto/Manual |
| Wavelength | 850 nm |
| Video | |
| Video compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 profile | Baseline profile, Main profile, High profile |
| Frame rate | Main stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; Substream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Video bitrate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy mask | Maximum 4 areas |
| ROI | Support |
| Video stream | Triple streams |
| Image | |
| White balance | Auto, Outdoor, Fine-tune, Sodium lamp, Locked, Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Vertical flip, Horizontal flip, 180°, 90° clockwise, 90° counter-clockwise |
| De-warping | Not applicable |
| HLC | Support |
| BLC | Support |
| Dewarmer | Digital dewarmer |
| Intelligent | |
| Smart intrusion prevention | Line crossing detection, intrusion detection, area entry detection, area exit detection (supports false alarm filtering and classification of persons, non-motorized vehicles, and vehicles) |
| Statistical analysis | Not applicable |
| People counting | Support for crowd counting and crowd density detection. |
| Events | |
| Basic detection | Motion detection, ultra-fast motion detection, tampering alarm, sound detection |
| General function | Watermark, IP address filtering, access policy, ARP security, RTSP authentication, user authentication, HTTP authentication |
| Audio | |
| Audio compression | G.711U, G.711A |
| Audio bitrate | 64 Kbps |
| Two-way audio | Support |
| Suppression | Support |
| Sampling frequency | 8 kHz |
| Storage | |
| Edge Storage | MicroSD card up to 512 GB |
| Network storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE |
| Compatible integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Maximum 32 users. 3 user levels: administrator, regular user, and operator. |
| Security | Password protection, strong password, HTTPS encryption, export of operational logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF |
| Client | EZStation, app |
| Web browser | Live view requires a plug-in: IE 10+, Chrome 45+, Firefox 52+, Edge 79+. Live view without a plug-in: Chrome 57+, Firefox 58+, Edge 16+. |
| Interface | |
| Built-in microphone | Support |
| Built-in speaker | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR Part 15 B) |
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power consumption | Max. 11.5 W |
| Power interface | Ø5.5 mm coaxial power connector |
| Dimensions | 191 mm × 75 mm × 74 mm (7.5" × 2.9" × 2.9") (L × W × H) |
| Weight | 0.50 kg (1.10 lb) |
| Material | Metal |
| Operating environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge protection | 4 kV |
| Reset button | Support |
| Web client language | 20 languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |

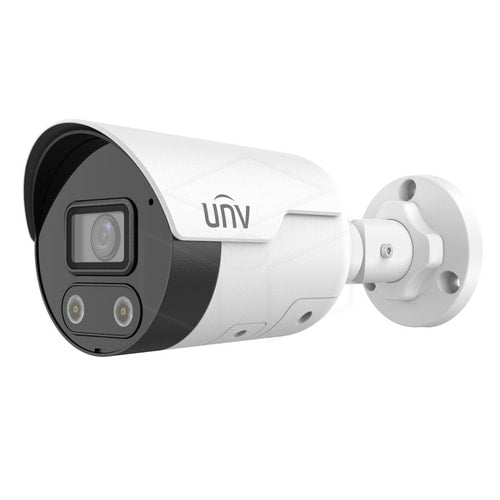

![Uniview 4K UltraHD Tri-Guard Bullet Camera (IPC2128SB-ADF28KMC-I0) Kleur: Wit Camera’s [kleur:wit]](http://www.benji-security.nl/cdn/shop/files/uniview-4k-ultrahd-tri-guard-bullet-camera-ipc2128sb-adf28kmc-i0-kleur-wit-cameras-150.jpg?v=1751897008&width=1445)

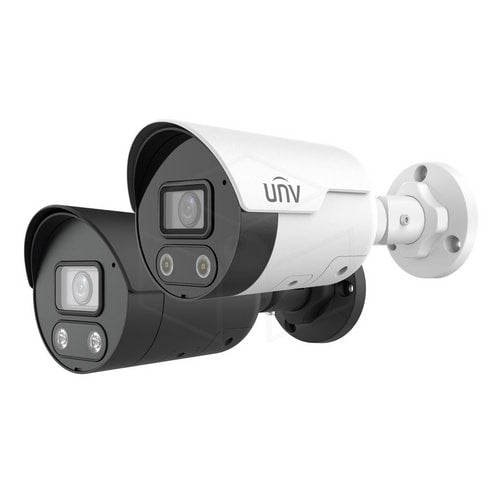

![Uniview 4K UltraHD Tri-Guard Bullet Camera (IPC2128SB-ADF28KMC-I0) - Camera’s [kleur:overslaan]](http://www.benji-security.nl/cdn/shop/files/uniview-4k-ultrahd-tri-guard-bullet-camera-ipc2128sb-adf28kmc-i0-cameras-581.jpg?v=1777564257&width=1445)
![Uniview 4K UltraHD Tri-Guard Bullet Camera (IPC2128SB-ADF28KMC-I0) Camera’s [kleur:wit]](http://www.benji-security.nl/cdn/shop/files/uniview-4k-ultrahd-tri-guard-bullet-camera-ipc2128sb-adf28kmc-i0-cameras-405.jpg?v=1751897015&width=1445)

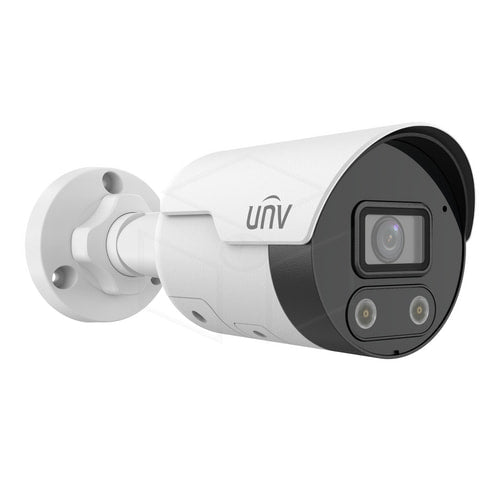

![Uniview 4K UltraHD Tri-Guard Bullet Camera (IPC2128SB-ADF28KMC-I0) Camera’s [kleur:wit]](http://www.benji-security.nl/cdn/shop/files/uniview-4k-ultrahd-tri-guard-bullet-camera-ipc2128sb-adf28kmc-i0-cameras-965.jpg?v=1751897022&width=1445)
![Uniview 4K UltraHD Tri-Guard Bullet Camera (IPC2128SB-ADF28KMC-I0) Camera’s [kleur:wit]](http://www.benji-security.nl/cdn/shop/files/uniview-4k-ultrahd-tri-guard-bullet-camera-ipc2128sb-adf28kmc-i0-cameras-787.jpg?v=1751897025&width=1445)
![Uniview 4K UltraHD Tri-Guard Bullet Camera (IPC2128SB-ADF28KMC-I0) Camera’s [kleur:wit]](http://www.benji-security.nl/cdn/shop/files/uniview-4k-ultrahd-tri-guard-bullet-camera-ipc2128sb-adf28kmc-i0-cameras-504.jpg?v=1751897028&width=1445)

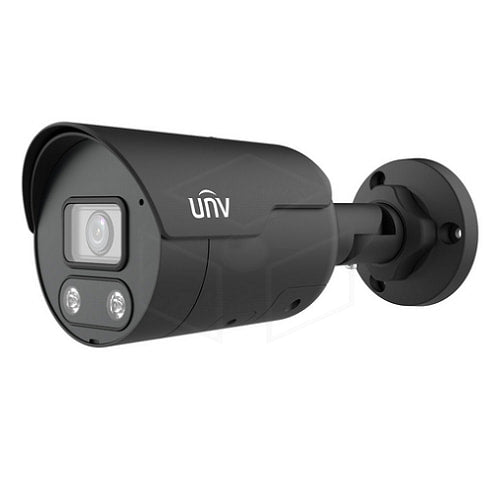

![Uniview 4K UltraHD Tri-Guard Bullet Camera (IPC2128SB-ADF28KMC-I0) Kleur: Zwart Camera’s [kleur:zwart]](http://www.benji-security.nl/cdn/shop/files/uniview-4k-ultrahd-tri-guard-bullet-camera-ipc2128sb-adf28kmc-i0-kleur-zwart-cameras-785.jpg?v=1751897012&width=1445)

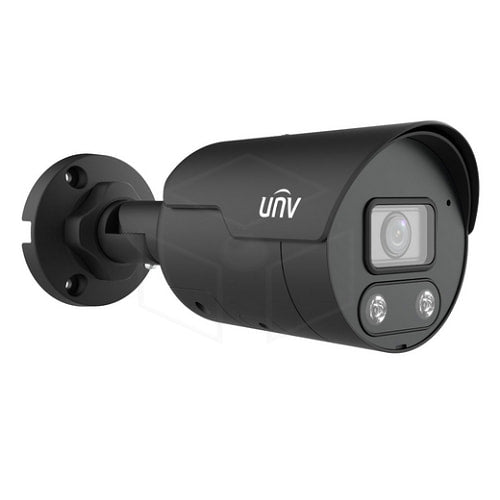

![Uniview 4K UltraHD Tri-Guard Bullet Camera (IPC2128SB-ADF28KMC-I0) Camera’s [kleur:zwart]](http://www.benji-security.nl/cdn/shop/files/uniview-4k-ultrahd-tri-guard-bullet-camera-ipc2128sb-adf28kmc-i0-cameras-302.jpg?v=1751897018&width=1445)
