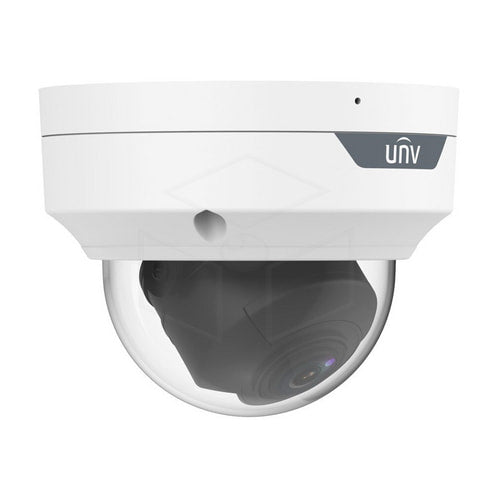

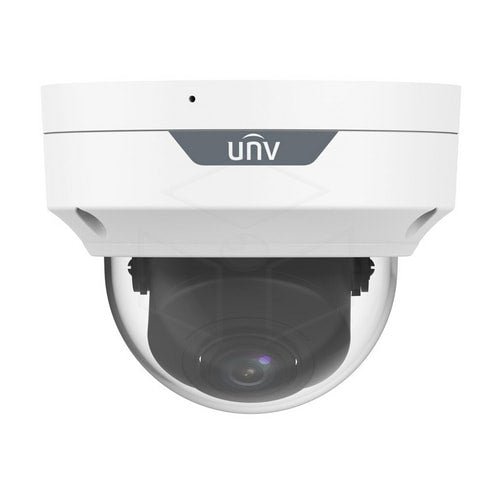

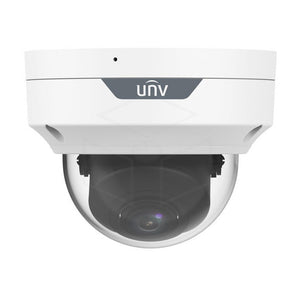

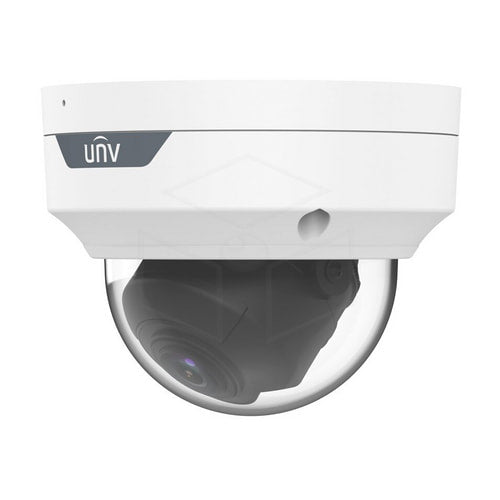

Uniview 5MP WDR Fixed Lens IR dome camera (IPC3515SS-ADF28K-L1-HI)
Product Description
The IPC3515SS-ADF28K-L1-HI is a camera from the Prime II Series. With 5MP resolution, this dome camera delivers extremely detailed images in Full HD, allowing you to see every detail. Thanks to the HDMI output, you can display images directly on a face-to-face screen or other display for easy monitoring and live viewing.
The camera supports SD card storage up to 512GB, allowing you to store more data locally without relying on external servers. This enables long-term and secure recording even when network problems occur, giving you full control over your data.
With smart infrared up to 40 meters, you have full visibility even in complete darkness. This technology automatically adjusts the infrared lighting based on the environment, so you always have sharp images, even at night or in low light.
Thanks to the IP54 certification, this camera is resistant to dust and water, making it ideal for outdoor use in various weather conditions. The IP10 certification offers additional protection against physical damage, meaning your camera is resistant to vandalism and harsh environments.
More features
5MP HD RESOLUTION
The IPC3515SS-ADF28K-L1-HI captures video at up to 5MP @ 30 FPS resolution, which is 2880 x 1620 pixels. Every pixel added to your camera's photo gives you higher quality and more detail. So at 5MP, you get a sharper, cleaner, and more detailed image.
2.8mm fixed lens
The IPC3515SS-ADF28K-L1-HI has a 2.8mm fixed lens . This means that it is fixed at one length - it cannot zoom in and out optically. The longer the focal length on a fixed lens camera, the more it will zoom in and the more close-up detail you will be able to see. However, the shorter the focal length, the wider the field of view and the larger the area your surveillance will cover.
The IPC3515SS-ADF28K-L1-HI has a horizontal field of view of 110°.
Built-in microphone
Audio capabilities in your video surveillance system can be an important feature. The IPC3515SS-ADF28K-L1-HI comes with a built-in microphone, so you can hear and record crisp, clear audio without having to run additional cables to power a microphone.
NDAA Compliant
This model is NDAA (National Defense Authorization Act) compliant, meaning it is safe to use and install on U.S. government property. It is built with trusted and reliable technology at its core.
Up to 40m NIGHT VISION IR RANGE
When the sun goes down or the lights go out, this camera turns on its own built-in infrared LED lights. Invisible to the human eye, these lights allow the camera to keep functioning and recording 24/7, day or night. And with an IR range of up to 40 meters, you won’t miss a thing happening on your camera’s feeds, even if it’s in pitch-black darkness.
Remote access
The IPC3515SS-ADF28K-L1-HI is part of our Uniview line of products. As such, it is packed with features that would please a power user, yet is simple enough to operate for a beginner. Easily view and manage your cameras and recorders from anywhere in the world with the free mobile and desktop applications. For the power user, these apps give you the ability to adjust advanced settings on the fly. For the beginner, you can use the apps to easily view live feeds and play back recorded video. Whatever you need to accomplish, it's all at your fingertips.
Specification
| Maximum resolution | 5MP |
| Sensor | 1/2.7" CMOS display |
| Min. Lighting | Color: 0.002 lux (F1.6, AGC ON) 0 lux with IR on |
| Day/Night | IR cut filter with automatic switching (ICR) |
| Shutter | Automatic/Manual, 1 ~ 1/100000s |
| Serial number | >56dB |
| WDR | 130dB |
| Focal length | 2.8mm |
| Iris type | Fixed |
| Iris | F1.6 |
| Field of view (H) | 110.0° |
| Field of view (V) | 58.7° |
| Field of view (D) | 130.0° |
| Lens type | Fixed |
| Additional light | IR |
| Illumination distance (IR) | 40 meters (131.2 feet) |
| IR on/off control | Automatic/Manual |
| Video compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Base profile, Main profile, High profile |
| Frame rate | Main Stream: 5MP(2880*1620), up to 30fps; 4MP(2560*1440), up to 30fps; 3MP(2304*1296), up to 30fps; 1080P(1920*1080), up to 30fps; Substream: 1080P(1920*1080), maximum 30fps; 720P(1280*720), maximum 30fps; D1(720*576), maximum 30fps; 640*360, maximum 30fps; 2CIF(704*288), maximum 30fps; CIF(352*288), maximum 30fps; Third stream: D1 (720*576), max 30 fps; 640*360, max 30 fps; 2CIF (704*288), max 30 fps; CIF (352*288), max 30 fps; HDMI: 50HZ: 25 fps (1080P); 60HZ: 30fps (1080P) |
| Video bit rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy mask | Up to 4 areas |
| Video stream | Triple stream |
| Automatic Scene Matching (ASM) | Support (WDR Only) |
| White balance | Auto, Outside, Fine Tuning, Sodium Lamp, Locked, Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| HLC | Support |
| BLC | Support |
| Defog | Digital defogging |
| Smart burglary prevention | Boundary crossing detection, intrusion detection, area entry detection, area exit detection (support false alarm filtering and classification of people, non-motorized vehicles and vehicles) |
| People counting | Support counting of people flows and monitoring of crowd density |
| Attribute collection | SIP with color recognition |
| Basic detection | Motion Detection, Ultra Motion Detection, Tamper Alarm, Audio Detection |
| General function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output |
| Audio compression | G.711U, G.711A |
| Audio bit rate | 64 Kbps |
| Two-way audio | Support |
| Oppression | Support |
| Edge storage | Micro SD, up to 512 GB |
| Network storage | ANR, NAS (NFS) |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, general user and operator |
| Security | Password protection, strong password, HTTPS encryption, export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | UNV Link, UNV Link Pro, EZStation |
| Web browser | Plugin required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plugin free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Alarm I/O | 1/1 |
| Built-in microphone | Support |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Video output | 1 HDMI |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR Part 15 B) |
| Safety | CE-LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP54 IK10 (IEC 62262) |
| Current | DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption | Maximum 8.0W |
| Current interface | Ø 5.5 mm coaxial plug |
| Dimensions | Ø128.2 x 100.0 mm (Ø5.0” x 3.9”) (Ø x H) |
| Weight | 0.67 kg (1.47 lb) |
| Material | Metal |
| Working environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge protection | 4KV |
