Uniview 4K HD Intelligent ColorHunter Dome Camera (IPC3638SE-ADF28K-WL-I0 )
Product Description

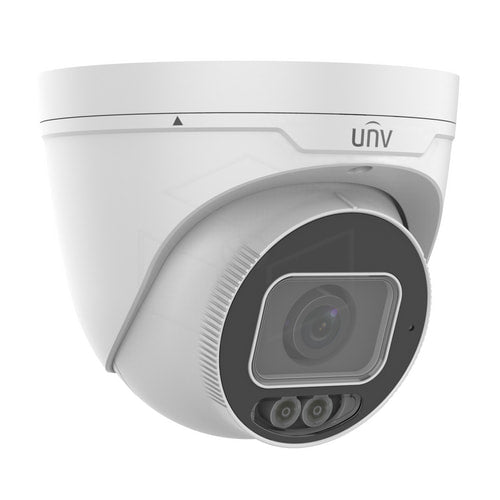

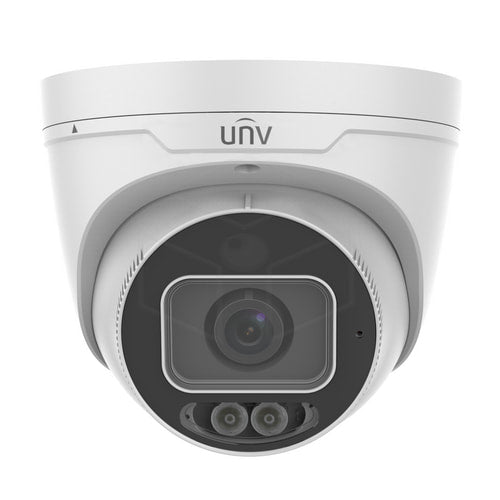

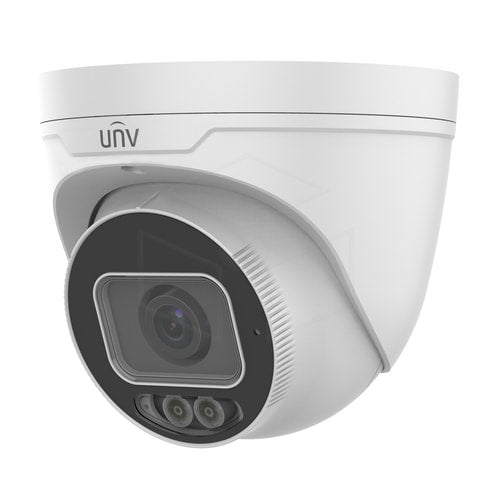

Keep an eye on your surroundings with the IPC3638SE-ADF28K-WL-I0 8MP Outdoor Network Turret Camera from Uniview. This device uses a 1/1.8" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 30 fps. Dual LED spotlights provide up to 98' of illumination for recording 24/7 color video and deterring unwanted activity. The camera's 2.8mm fixed lens delivers a 110.15° horizontal field of view. Two-way audio is made possible thanks to a built-in microphone, along with an audio input and output. A built-in card slot supports microSD cards up to 256GB (sold separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data over a single cable.
This camera complies with ONVIF profiles G, S and T, making it compatible with a wide range of surveillance equipment. It is housed in a metal housing with IP67 and IK10 ratings, suitable for safe outdoor use in areas at risk of vandalism.
Specifications
| Sensor | 1/1.8", 8.0 megapixels, progressive scan, CMOS |
| Minimum lighting | Color: 0.0005 lux (F1.0, AGC ON) |
| Shutter | Automatic/Manual, 1 ~ 1/100,000s |
| Adjustment angle | Pan: 0° ~ 360° |
| WDR | 120dB |
| S/N | >56dB |
| Lens | 2.8mm at F1.0 |
| Iris | Fixed |
| Field of view (H) | 110.15° |
| Field of view (V) | 59.06° |
| Field of view (D) | 143.19° |
| LED distance | Up to 30 meters (98ft) |
| LEDs Quantity | 2 |
| LED on/off control | Automatic/Manual |
| Video compression | Ultra265, H.265, H.264, MJPEG |
| H.264 code profile | Base profile, Main profile, High profile |
| Frame rate | Main Stream: 8MP(3840*2160), max. 30fps; 5.3MP(3072*1728), max. 30fps; 3.6MP(2560*1440), max. 30fps; 1080P(1920*1080), max. 30fps; 720P(1280*720), max. 30fps; Substream: 1080P (1920*1080), up to 30 fps; 720P (1280*720), up to 30 fps; D1 (720*576), up to 30 fps; 640*360, up to 30 fps; 2CIF (704*288), up to 30 fps; CIF(352*288), up to 30 fps; Third stream: D1(720*576), max 30 fps; 640*360, max 30 fps; 2CIF(704*288), max 30 fps; CIF(352*288), max 30 fps; |
| Video bit rate | 128 Kbps ~ 16 Mbps |
| OSD | Maximum 8 OSDs |
| Privacy mask | Maximum 4 areas |
| ROI | Maximum 8 areas |
| White balance | Auto/Outside/Fine Tuning/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart lighting | Yes |
| HLC | Yes |
| BLC | Yes |
| Smart burglary prevention | Support false alarm filter: line crossing detection, intrusion detection, area entry detection, area exit detection |
| Statistical analysis | People counting, support for counting people flows and crowd density monitoring |
| Basic detection | Motion Detection, Ultra Motion Detection, Tamper Alarm, Audio Detection |
| General function | Watermark, IP Address Filtering, Alarm Input, Alarm Output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio compression | G.711 |
| Audio bit rate | 64 Kbps |
| Two-way audio | Yes |
| Oppression | Yes |
| Sampling rate | 8 kHz |
| Edge storage | Micro SD, up to 256 GB |
| Network storage | ANR, NAS(NFS) |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL /TLS, SSH |
| Compatible integration | ONVIF (Profile S, Profile G, Profile T), API,SDK |
| User/Host | Maximum 32 users. 2 user levels: administrator and regular user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZView EZLive |
| Web browser | Plugin requires live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Plugin-less live view: Chrome 57.0 and later, Firefox 58.0 and later, Edge 16 and later | |
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [pp] |
| Output: impedance 600Ω; amplitude 2V [pp] | |
| Alarm I/O | 1/1 |
| RS485 | N/A |
| Built-in microphone | Yes |
| Built-in speaker | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video output | N/A |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| Current | DC 12V ± 25%, PoE (IEEE 802.3af) |
| Power consumption: maximum 11 W | |
| Current interface | Ø 5.5 mm coaxial plug |
| Dimensions (Ø x H) | Φ129 x 110 mm (Φ5.1” x 4.3”) |
| Weight | 0.64 kg (1.41 lb) |
| Material | Metal |
| Operating conditions | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge protection | 4KV |
| Reset button | Yes |
