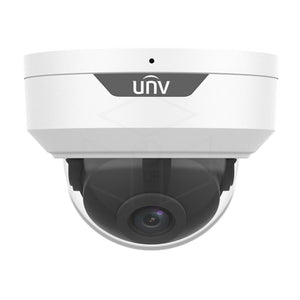

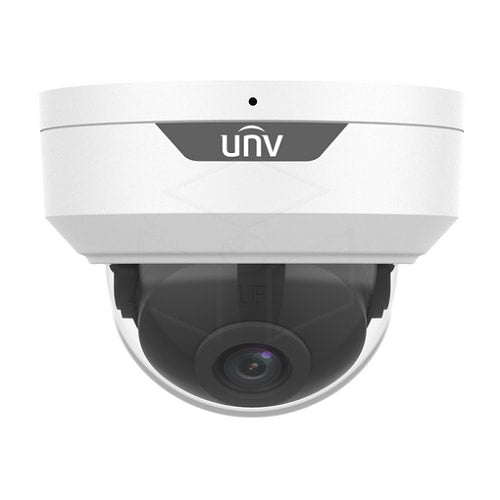

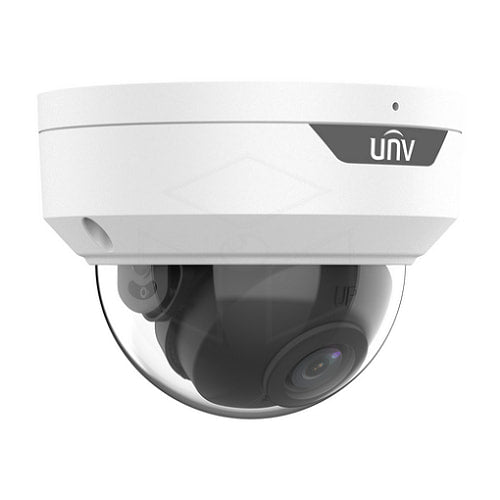

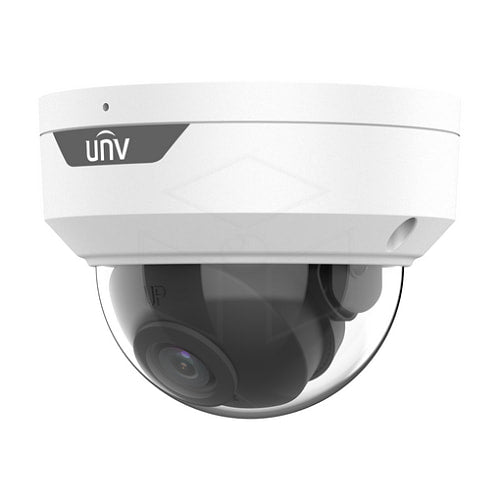

Uniview 8MP LightHunter Fixed IR dome camera (IPC328SB-ADF28K-I0)
Product Description
Dome camera equipped with Lighthunter technology, allowing it to perform exceptionally well in low-light conditions and even produce color images down to 0.003 lux. The camera features a 2.8 mm fixed lens and offers a resolution of 8 MP. Thanks to advanced AI analysis capabilities, false alarms caused by things like leaves, trees, and branches are significantly reduced. Furthermore, there is a built-in Micro-SD slot suitable for cards up to 512 GB. The Auto Network Replenishment (ANR) function ensures that the camera automatically records to the Micro-SD card when the network connection is temporarily lost.
More features
4K HD Resolution
The IPC328SB-ADF28K-I0 captures video up to a resolution of 4K @ 20 FPS, which is 3840 x 2160 pixels. Every pixel added to your camera's image provides higher quality and more detail. So, with 4K, you get a sharper, cleaner, and more detailed image.
2.8 mm fixed lens
The IPC328SB-ADF28K-I0 has a 2.8 mm fixed lens. This means it is locked at one length: it cannot optically zoom in and out. The longer the focal length on a fixed-lens camera, the more it zooms in and the more detail you can see close up. However, the shorter the focal length, the wider the field of view and the larger the area your surveillance will cover.
The IPC328SB-ADF28K-I0 has a horizontal field of view of 112.4°.
Built-in microphone
Audio capabilities in your video surveillance system can be an important feature. The IPC328SB-ADF28K-I0 comes with a built-in microphone, so you can hear and record clear, crisp audio without needing to use extra cables to power a microphone.
NDAA-compliant
This model complies with the NDAA (National Defense Authorization Act), meaning it is safe to use and install on U.S. government properties. It is built with trusted and reliable technology at its core.
Night vision range up to 30 meters
When the sun goes down or the lights go out, this camera switches on its own built-in infrared LED lights. These lights, which are invisible to the human eye, ensure that the camera can continue to function 24/7, day and night, and record video. And because the IR range covers up to 30 meters, you won't miss anything happening on your camera's feeds, even if it happens in pitch-black darkness.
Plug & Play
If you are building a new system from our Uniview cameras, installation is incredibly simple with our Uniview line of POE NVRs. Simply plug the camera into the back of the Uniview NVR and you will instantly have video on the recorder's HDMI interface. You can also view and manage the NVR via free desktop and mobile apps, such as UniEase and EZStation.
ONVIF Compatibility
If you want to add this camera to an already established security system, that is no problem. This camera complies with the protocols established by the Open Network Video Interface Forum (ONVIF). This means that as long as your current recorder is ONVIF-compatible, you can set up this camera with your current system.
Remote Access
The IPC3235SB-ADZK-I0 is part of our Uniview product line. As such, it is packed with features that would please a power user, but it is simple enough to operate for a beginner. View and manage your cameras and recorders easily from anywhere in the world with the free mobile and desktop applications. For the experienced user, these apps give you the ability to adjust advanced settings directly. For the beginner, you can use the apps to easily view live feeds and play back recorded video. Whatever you need to achieve, it is all at your fingertips.
Specifications
| Camera | |
| Model | IPC328SB-ADF28K-I0 |
| Sensor | 1/2.7" CMOS |
| Minimum illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with automatic switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 3° to 360°, Tilt: 0° to 68°, Rotate: 3° to 360° |
| WDR | 120 dB |
| S/N | >52 dB |
| Lens | |
| Focal length | 2.8 mm |
| Iris | F1.6 |
| Field of view (H) | 112.4° |
| Field of view (V) | 60.1° |
| Field of view (D) | 146.1° |
| Lens type | Fixed |
| DORI | |
| DORI distance (lens) | 2.8 mm |
| DORI distance (detect) | 84.0 m (275.6 ft.) |
| DORI distance (observe) | 33.6 m (110.2 ft.) |
| DORI distance (recognize) | 16.8 m (55.1 ft.) |
| DORI distance (identify) | 8.4 m (27.6 ft.) |
| Illuminator | |
| Illumination distance (IR) | 30 m (98.4 ft) |
| Light on/off switch | Auto/Manual |
| Wavelength | 850 nm |
| Supplementary lighting | IR |
| Video | |
| Video compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame rate | Main stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; Sub stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Video bit rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy mask | Up to 4 areas |
| ROI | Support |
| Video stream | Triple streams |
| Image | |
| White balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Smart IR | Support |
| Digital noise reduction | 2D/3D DNR |
| Flip | Normal, Vertical flip, Horizontal flip, 180°, 90° clockwise, 90° counter-clockwise |
| Dewarping | Support |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Intelligent | |
| Smart intrusion prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (supports false alarm filtering and classification of persons, non-motorized vehicles, and vehicles) |
| People counting | Support for people flow counting and crowd density detection. |
| Events | |
| Basic detection | Motion detection, tampering alarm, audio detection |
| General function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication |
| Audio | |
| Audio compression | G.711U, G.711A, AAC-LC |
| Audio bit rate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
| Two-way audio | Support |
| Suppression | Support |
| Sampling rate | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz |
| Storage | |
| Edge Storage | MicroSD card up to 512 GB |
| Network storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE |
| Compatible integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user, and operator. |
| Security | Password protection, strong password, HTTPS encryption, export of operational logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation, app |
| Web browser | Live view requires a plug-in: IE 10+, Chrome 45+, Firefox 52+, Edge 79+. Live view without plug-in: Chrome 57+, Firefox 58+, Edge 16+. |
| Interface | |
| Audio input/output | 1 Input: impedance 35 kΩ, amplitude 2 V [pp], 1 Output: impedance 600 Ω, amplitude 2 V [pp] |
| Alarm I/O | 1/1 |
| Built-in microphone | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR Part 15 B) |
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power consumption | Max. 6.0 W |
| Power interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø109 mm × 83 mm (Ø4.3" × 3.3") (Ø × H) |
| Weight | 0.43 kg (0.99 lb) |
| Material | Metal |
| Working environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge protection | 4 kV |
| Web client language | 20 languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
