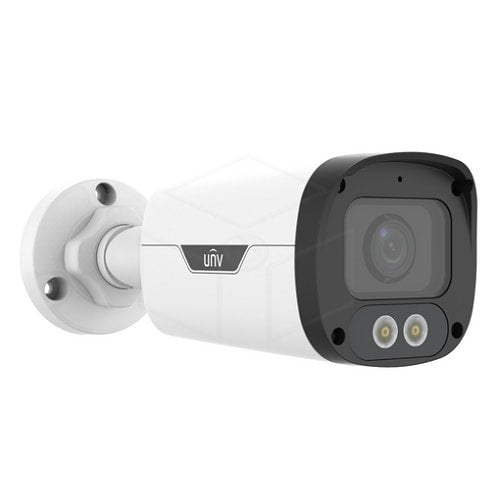

Uniview ColorHunter 4MP bullet camera (IPC2314LE-ADF28KM-WL)
Product Description
The Uniview IPC2314LE-ADF28KM-WL is a 4MP IP dome camera with a 2.8mm fixed lens, 24/7 color imaging thanks to ColorHunter technology, and smart intrusion detection that can recognize a human or vehicle and only sends alerts when it matters, ignoring non-events such as animals or branches blowing in the wind. PoE provides both data and power via a single ethernet cable, which reduces costs and speeds up installation time, and the IP67-rated housing is ideal for outdoor use.
More features
4MP HD RESOLUTION
The IPC2314LE-ADF28KM-WL captures video up to a resolution of 4MP @ 25 FPS, which is 2688x1520 pixels. Every pixel added to your camera's image gives you higher image quality and more detail. So with 4MP, you get a sharper, cleaner, and more detailed image.
2.8MM FIXED LENS
The IPC2314LE-ADF28KM-WL has a 2.8mm Fixed Lens. This means it is fixed at one length; it cannot zoom in and out optically. The longer the focal length on a fixed-lens camera, the more zoomed in it is and the more close-up detail you can see. However, the shorter the focal length, the wider the field of view and the larger the area your surveillance will cover.
The IPC3624LE-ADF28K-WL has a horizontal field of view of 110.4°.
BUILT-IN MICROPHONE
Having audio capabilities in your video surveillance system can be an important feature. The IPC2314LE-ADF28KM-WL comes with a built-in microphone, allowing you to hear and record crisp, clear audio without having to run extra cables to power a microphone.
IP67 WEATHERPROOF RATING
This camera has an Ingress Protection (IP) rating of 67. This means the camera is completely protected against dust and other solid particles. It is also resistant to immersion in 0.9144 meters of water for up to 30 minutes.
You can be sure that when you install this camera outdoors, it will have no trouble weathering the toughest storms.
UP TO 30M NIGHT VISION IR RANGE
When the sun goes down or the lights go out, this camera switches on its own onboard infrared LED lights. These lights, which are invisible to the human eye, ensure the camera can continue to function 24/7 and record video, day and night. And since the IR range covers up to 30 meters, you won't miss anything happening on your camera feeds, even if it happens in pitch-black darkness.
PLUG & PLAY
If you are creating a new system from our Uniview cameras, installation is incredibly simple with our Uniview line of POE NVRs. Simply connect the camera to the back of the Uniview NVR and you will have instant video on the recorder's HDMI interface. You can also view and manage the NVR via free desktop and mobile apps, such as EZView and EZStation.
ONVIF COMPATIBILITY
If you want to add this camera to an already established security system, that is no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means that as long as your current recorder is ONVIF-compatible, you can set up this camera with your current system.
REMOTE ACCESS
The IPC2314LE-ADF28KM-WL is part of our Uniview line of products. As such, it is packed with features that would please a power user, but it is simple enough to operate for a beginner. View and manage your cameras and recorders easily from anywhere in the world with the free mobile and desktop applications. For the experienced user, these apps give you the ability to adjust advanced settings directly. For the beginner, you can use the apps to easily view live feeds and play back recorded video. Whatever you need to achieve, it's all at your fingertips.
Specifications
| Camera Model | IPC2314LE-ADF28KM-WL |
| Form Factor | Bullet |
| Resolution | 4MP |
| Maximum Resolution | 2688 x 1520 |
| Frames Per Second | 25 frames per second |
| Image Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS |
| Lens Type | Fixed lens |
| Focal Length | 2.8 mm |
| Field of View | 110.4° |
| Illumination | Infrared |
| IR Range | Up to 30M |
| Video Compression | Ultra H.265, H.265, H.264 |
| Maximum Video Bit Rate | 16 Mbps |
| Weatherproof Rating | IP67 |
| Vandal-Resistant Rating | N/A |
| Audio | Built-in microphone |
| Onvif Compatible | Yes |
| Intelligent Events | Line crossing, intrusion (based on human body detection), motion detection, ultra motion detection, tampering alarm, audio detection |
| Dimensions (Ø x H) | Φ118x106mm (Ø4.6” x 4.2”) |
| Onboard Storage | Up to 128 GB |
| Power Supply | DC 12 V ± 25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 5.9W |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Weight | 0.45 kg (0.99 lb) |
