Product description

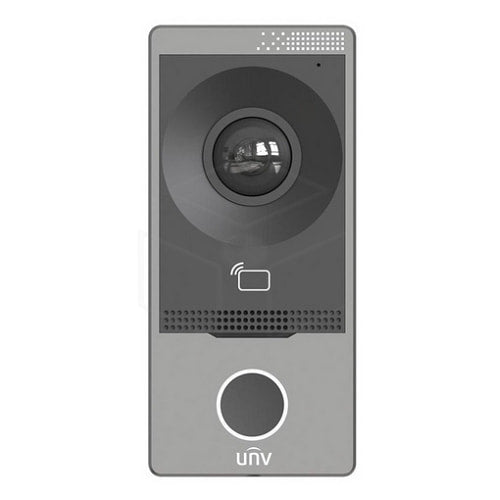

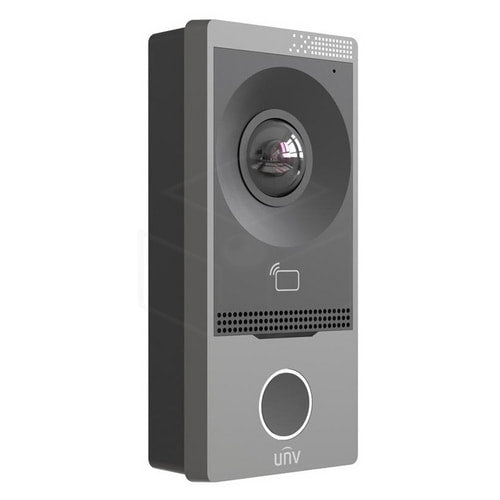

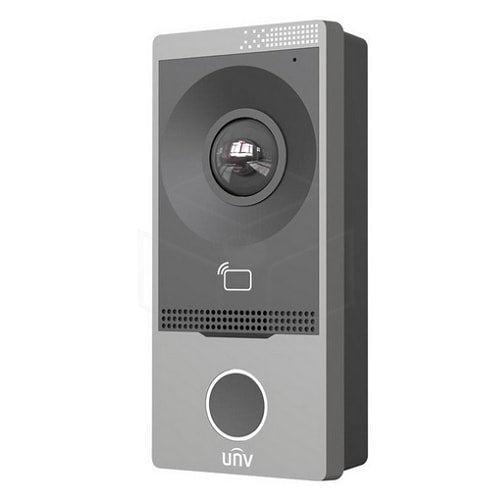

The doorbell can be easily integrated into existing Uniview installations or used independently with a memory card. You can use it as a surveillance camera by adding it to an NVR and recording the camera stream. It is used in conjunction with the UNV-link app to answer calls. It is also possible to insert cards or tags; the doorbell can read the card/tag when you add new users via the web interface. The doorbell can be powered via PoE.
Specifications
| Power | DC 12 V ± 25% input; IEEE802.3af, standard PoE |
| Card capacity | 10000 |
| Operating system | Linux |
| Supplement light | IR light (adaptive infrared compensation) |
| WDR | Supported |
| Field of view | Horizontal: 124.3° Vertical: 67.5° Diagonal: 147.2° |
| Power consumption | <10W |
| Volume adjustment | Adjustable |
| Audio quality | Noise reduction, echo cancellation and AGC |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 built-in speaker |
| Audio compression standard | PCM, G711, MP3 |
| Audio compression bitrate | 128 Kbps |
| Protocol | UNV private protocol |
| Button | 1 physical button |
| Protection level | IP65 (Apply waterproof glue to the gap between the device and the wall. See the quick guide for more information.) IK08 |
| Weight | 0.267 kg |
| Linked indoor station capacity | 20 |
| Mounting method | Wall mount, flush mount |
| Interface | Power *1, network port *1, WIFI, RS485, door lock interface *2, IO input *4 |
| Network | 100 Mbps network port, supports IEEE802.3af PoE power supply |
| Dimensions (L×H×W) | 79 mm × 171 mm × 34 mm |
| Operating environment | ﹣30℃~﹢60℃, 10%~90%, non-condensing, outdoor |
