Uniview

Uniview Wi-Fi Kit 2MP FHD Dome cameras (KIT / NVR301-04LS3-W / 4 * 322LB-ABF28WK-G)

Uniview Wi-Fi Kit 2MP FHD Dome cameras (KIT / NVR301-04LS3-W / 4 * 322LB-ABF28WK-G)

View full details

Product description

This complete, all-in-one Wi-Fi security camera system comes with one built-in Wi-Fi NVR and four Wi-Fi cameras. Connect your NVR to the network with an Ethernet cable, power your cameras with a 12V DC power supply, and you are ready to go! Your NVR will automatically search for the Wi-Fi cameras and add them to its network.

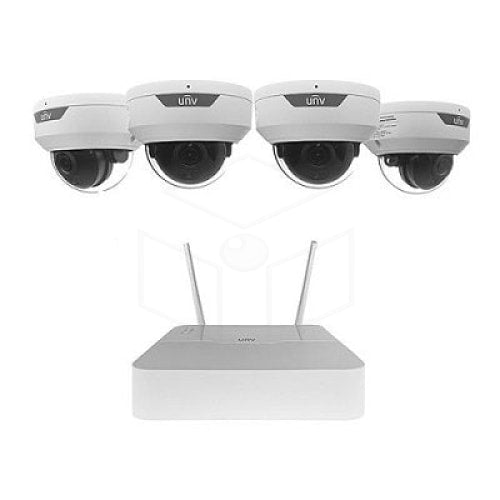

This Wi-Fi kit consists of a 4-channel NVR recorder and 4 dome cameras with 2MP.

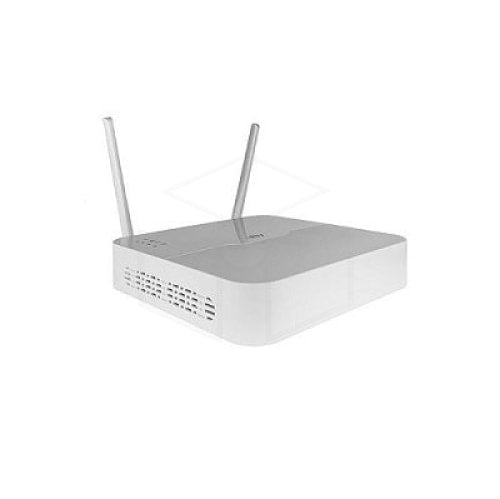

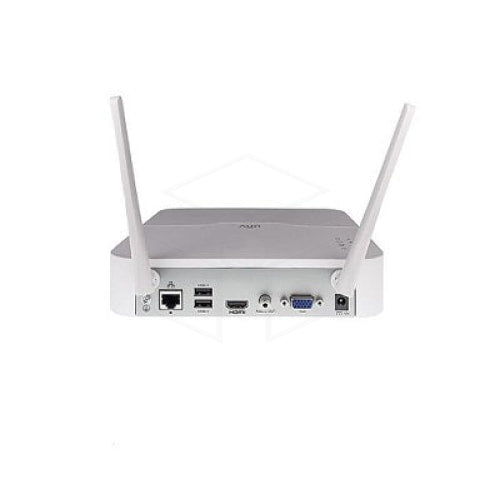

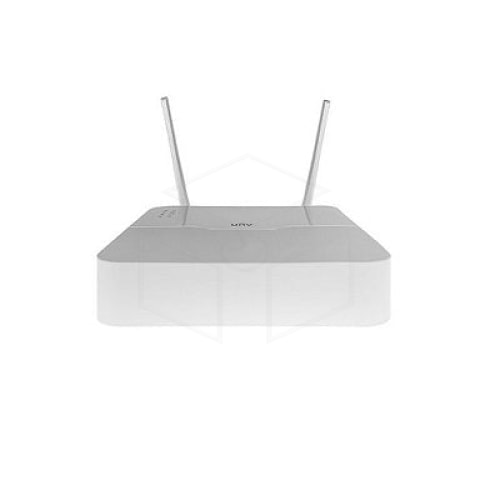

The NVR recorder with a recording resolution of 1080p is equipped with a built-in, high-stability Wi-Fi module and delivers high performance. The 2 antennas on the recorder ensure the Wi-Fi signal is boosted. This recorder supports IP cameras with Wi-Fi access and features 1 HDMI channel and 1 VGA channel. The recorder has 1 SATA HDD connection, which is suitable for a hard drive of up to 10TB.

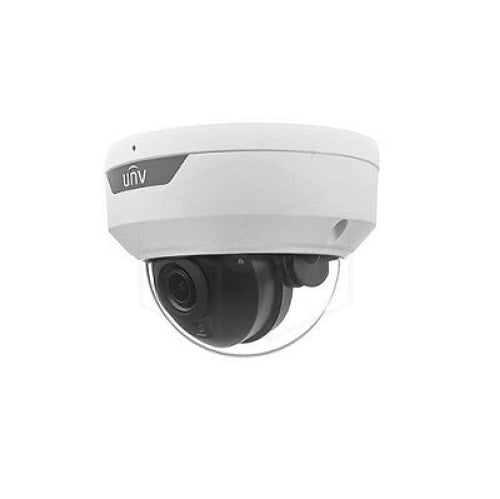

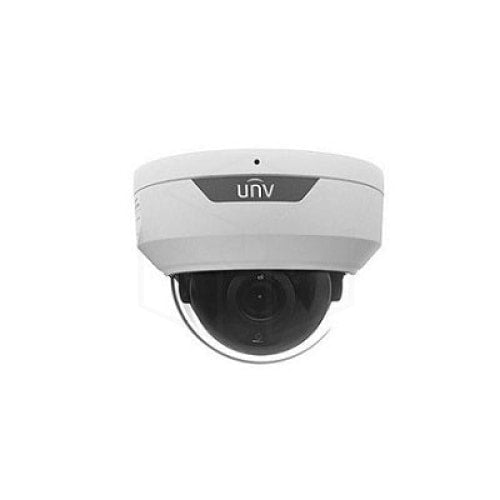

The 2 MP dome cameras are equipped with a built-in antenna that provides the Wi-Fi range. Due to their IP67 rating, the cameras are also suitable for outdoor use and are vandal-resistant in accordance with IK10 certification. The built-in infrared has a maximum range of 30 meters.

More features

2MP HD RESOLUTION
The IPC322LB-AF28WK-G captures video up to a resolution of 2MP @ 30 FPS, which equates to 1920x1080 pixels. Every pixel added to your camera's image gives you higher image quality and more detail. So, with 2 MP, you get a sharper, cleaner, and more detailed image.

2.8MM FIXED LENS
The IPC322LB-AF28WK-G has a 2.8mm Fixed Lens. This means it is fixed at one focal length; it cannot optically zoom in and out. The longer the focal length on a fixed-lens camera, the more it zooms in and the more close-up detail you can see. However, the shorter the focal length, the wider the field of view and the more area your surveillance will cover.

The IPC322LB-AF28WK-G has a horizontal field of view of 101.1°.

WI-FI SECURITY CAMERA
Get rid of long, intrusive wires running across your floorboards and walls. With the IPC322LB-AF28WK-G, you can connect wirelessly to your network via Wi-Fi to capture and record video. Wi-Fi security cameras are often easier to install and provide more flexibility for placement and mobility. Connects effortlessly to the included Wi-Fi NVR.

BUILT-IN MICROPHONE
Having audio capabilities in your video surveillance system can be an important feature. The IPC322LB-AF28WK-G comes with a built-in microphone, allowing you to hear and record crisp, clear audio without using extra cables to power a microphone.

NDAA COMPLIANT
This model is NDAA (National Defense Authorization Act) compliant, meaning it is safe to use and install on US government properties. It was built with trusted and reliable technology at its core.

IP67 WEATHERPROOF RATING
This camera has an Ingress Protection (IP) rating of 67. This means the camera is fully protected against dust and other solid particles. It is also resistant to immersion in 3 feet of water for up to 30 minutes.

You can rest assured that when you install this camera outdoors, it will have no trouble weathering the toughest storms.

IK10 VANDAL-RESISTANT RATING
The IPC322LB-AF28WK-G has an Impact Protection (IK) rating of 10, which is as high as the scale goes. If a vandal wants to try and break this camera open, it will take significant effort on their part. Literally, they will need a lot more force, as this thing is incredibly durable. That is why these dome-shaped cameras are often called vandal-resistant domes, or vandal domes for short.

UP TO 30M NIGHT VISION IR RANGE
When the sun goes down or the lights go out, this camera switches on its own infrared LED lighting. These lights, which are invisible to the human eye, ensure the camera can continue to function and record video 24/7, day and night. And since the IR range covers up to 30m, you won't miss anything happening on your camera feeds, even in pitch-black darkness.

Specifications

Model
NVR301-04lb-W
Video/Audio input
IP video input 4-channel
Network
Incoming bandwidth 40 Mbps
Outgoing bandwidth 40 Mbps
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio output
HDMI/VGA output HDMI:

1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

VGA:

1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Audio output 1-channel, RCA
Decoding
Decoding format Ultra 265/H.265/H.264
Live view/ Playback 1080p/960p/720p/D1/2CIF/CIF
Hard drive
SATA 1 SATA interface
Capacity Up to 8 TB for each HDD
External interface
Network interface 1 RJ45 10M/100M self-adaptive Ethernet interface
USB interface Rear panel: 2 x USB2.0
Wi-Fi
Frequency 2.4 GHz
Transmission speed 150 Mbps
Wireless standards IEEE 802.11b/g/n
Wireless range 160m (open environment)
General
Power supply 12V DC

Power consumption: ≤ 9 W (without HDD)
Operating environment -10 °C ~ + 55 °C (+14 °F ~ +131 °F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 205mm ×228mm ×47mm (8.1" × 9.0" ×1.9")
Weight (without HDD)
≤ 0.98Kg (2.16lb)
Model 322LB-ABF28WK-G
Camera
Sensor 1 /2.9", progressive scan, 2.0 megapixel, CMOS
Lens 2.8 mm@F2.0
Angle of view (H) 101.1°
Min. Illumination Color: 0.01Lux (F2.0, AGC ON)
0 Lux with IR
IR range Up to 30 m IR range
WDR DWDR
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
General function Watermark, IP address filtering, tamper alarm, access policy, ARP protection, RTSP authentication, user authentication,
Storage
Edge storage Micro SD, up to 128 GB
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
Compatible integration ONVIF (Profile S, Profile G), API
Wi-Fi
Wireless standards IEEE802.11b/g/n
Frequency range 2.4 GHz ~ 2.4835 GHz
Interface Network 1 RJ45 10M/100M Base-TX Ethernet | General Power 12 V DC (+/-25%)
Power consumption: Max 5.5W
Dimensions (Ø x H) Φ109 x 83 mm Weight 0.45 kg (0.99 lb) Operating environment -30 °C ~ +60 °C (-22 °F ~ 140 °F), Humidity: 10% ~ 90% RH (non-condensing) Ingress protection IP67 Vandal resistance IK10
