Product Description

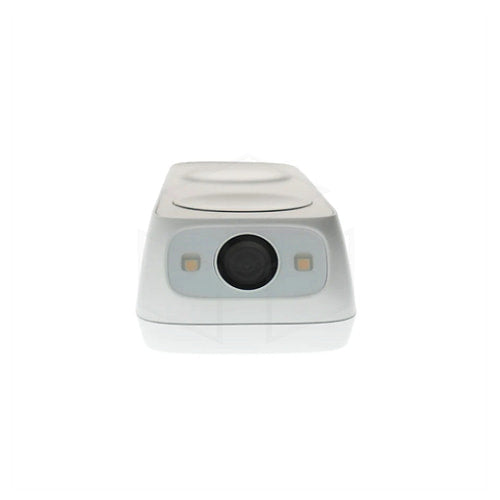

The ED-525B-WB is a dual-lens video doorbell equipped with two high-definition ultra-wide-angle cameras that provide a wide view of your front door and its surroundings. The top camera is a 3MP front-facing camera that captures all activity around your door and beyond. Because the doorbell supports human body detection, you can set it to alert you whenever there is human activity. The bottom camera, or 'package camera' as we call it, is aimed downward to view and monitor delivered packages. However, you might also spot some furry friends if they walk past your door! Additionally, you can use the built-in two-way audio to talk to people at your door via your mobile device and the UNV-LINK app. Not home? No problem, you can still communicate directly with your visitors from your phone.
Key Features
3MP HD Resolution
The ED-525B-WB captures video at a resolution of up to 3MP, or 2048 x 1536 pixels. Every pixel added to your camera's image ensures higher quality and more detail. With 3MP, you get a sharper, clearer, and more detailed image.
Wi-Fi Security Camera
Get rid of those long, annoying cables running across your floorboards and walls. With the ED-525B-WB, you can connect wirelessly to your network via Wi-Fi to capture and record video. Wi-Fi security cameras are often easier to install and offer more flexibility in placement and mobility.
2-Way Audio
This built-in speaker allows for real-time, two-way communication with anyone near the camera. Use this feature to deter crime, draw attention to your camera footage, or simply broadcast a message.
NDAA Compliant
This model complies with the NDAA (National Defense Authorization Act), meaning it is secure to use and install on US government property. It is built with trusted and reliable technology as its foundation.
IP65 Weatherproof Rating
This camera has an Ingress Protection (IP) rating of 65. This means the camera is completely protected against dust and other solid particles (the first six). It is also resistant to water jets from all directions (the five).
You can rest assured that your camera will withstand the elements when you install it outdoors.
Up to 5 Meters Night Vision Range
When the sun goes down or the lights go out, this camera can see up to 5 meters in the dark, allowing the camera to continue operating and recording video 24/7, day and night. You won't miss any of the action on your camera footage, even in pitch blackness.
Specifications
| Model | ED-525B-WB |
| Camera | |
| Resolution -- Main Camera | 3MP |
| Resolution -- Sub Camera | 2MP |
| FOV -- Main Camera | Horizontal: 116° Vertical: 82.5° Diagonal: 131° |
| FOV -- Sub Camera | Horizontal: 96.8° Vertical: 52.6° Diagonal: 109.9° |
| Power Kit | |
| Power Kit | 240 mAh rechargeable lithium battery (for mechanical chime) |
| Charging Temperature | 0°C to 45°C |
| Alarm Event | |
| Motion Detection Alarm | Support |
| UMD Alarm | Supports human body detection alarms |
| Package Detection Alarm | Support |
| Wi-Fi | |
| Operating Frequency Band | 2.4 GHz and 5 GHz |
| BLE Function | Compatible, integrated BLE, supports network connection via Bluetooth |
| Antenna Type | Built-in omnidirectional antenna |
| WLAN | 802.11 b/g/n/ax |
| Encryption | WPA-PSK/WPA2-PSK/WPA3-Personal |
| Bluetooth | Support, integrated in Wi-Fi chip |
| SUB-1G | |
| SUB-1G | Supported, for chime connection |
| Chimes | Max. 3 wireless chimes or 1 mechanical chime |
| Interface | |
| Reset Button | 1 micro-switch for both pairing and resetting |
| Built-in Microphone | Support |
| Built-in Speaker | Support |
| Interface Protocol | UNV private protocol |
| Network Protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP |
| Illuminator | |
| Illumination Mode | IR + white light |
| Illumination Distance | IR: 5 meters White light: 2 meters |
| Minimum Illumination | 0.02 lux |
| General | |
| Dimensions | 55.8 mm × 156.5 mm × 27.9 mm |
| Weight | Net weight: 142 g Gross weight: 295 g |
| Power Consumption | 10W |
| Installation Method | When mounted on a bracket, the power cable is installed on the bracket, and the doorbell is connected to the bracket via the contacts. |
| Button | One call button |
| Power Source | Contact: AC 12 V to 24 V |
| Operating Temperature | -30°C to 60°C |
| Ingress Protection | IP65 |
| WDR | |
| WDR | Supports DWDR, main camera 80dB, sub camera 58dB |
| Video | |
| Video Compression | H.265, H.264 |
| Audio | |
| Audio Bitrate | 128 Kbps |
| Audio Sampling Rate | 8K |
| Audio Compression | G711, MP3, PCM |
| Certification | |
| Certification | CB, CE LVD, CE EMC, CE RED, FCC SDOC, FCC ID |
