UNIView Hybrid recorder 16 channel BNC + 8 IP (XVR301-16G3)
Product Description
The XVR301-16G3 is a hybrid 16 channel recorder from Uniview. The recorder is hybrid and therefore suitable for analogue and IP cameras. IP cameras up to 4K and analogue cameras up to 8 megapixels can be connected to the recorder. The frames per second depend on the megapixels. AHD/TVI/CVI is supported with the following resolutions, 8MP@15fps, 5MP@20fps, 4MP@30fps, and 3MP@30fps. The XVR301-16G supports H.264 and H.265 so that the images can be viewed in razor-sharp images.

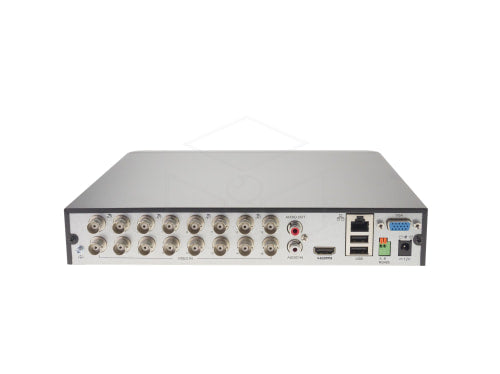

The recorder is equipped with 16 BNC channels and 8 IP channels. The IP channels can be expanded to a maximum of 24 channels. The images from the camera can be stored on a hard disk.
There is a possibility to connect a microphone and a speaker and the recorder has one USB port. The XVR301-16G3 is supplied with 12V DC power.
Specifications
| IP channels | 8-channel |
| Analog channels | 16-channel |
| Maximum resolution | 5 MP |
| Maximum incoming bandwidth | 40 Mbps |
| Maximum outgoing bandwidth | 64 Mbps |
| Video compression | H.265, H.264 |
| Hard drive slots | 1 |
| Hard disk capacity | Up to 8 TB each |
| Synchronous playback | 16-channel |
| Audio I/O | 1ch / 1ch |
| Onvif compatible | Yes |
| Power supply | Dc12V |
| Power consumption | ≤ 10W (without HDD) |
| Operating temperature | -10°C ~ +55°C (+14°F ~ +131°F) |
| Dimensions | 260 mm × 226 mm × 47 mm (10.2" × 8.9" × 1.8") |
| Weight | ≤1.1 kg (2.42 lb) |
