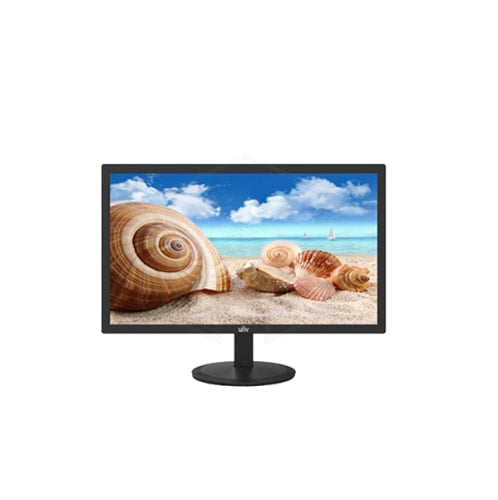

UNIView Monitor LED FHD 22'', HDMI, VGA, Audio (MW3222-V)
Product Description
With this Uniview MW3222-V monitor you offer a simple and affordable solution for viewing surveillance images. These monitors have various inputs for connecting equipment. You can use HDMI and VGA on this monitor.
If the monitor is too far from the recorder, you can use a VGA cable up to 30 meters or a coaxial cable and a converter. If you lay a coaxial cable of 80 meters, for example, you can use a BNC to VGA converter at the end of the cable to convert the signal. In addition, we also offer a wide range of HDMI cables and HDMI over UTP converters.
This UNV monitor is also equipped with 2 built-in speakers for playing sound. The speakers have a power of 2.2 watts. The monitor plays sounds that are entered via HDMI or via the 3.5mm audio input.
This product is supplied as standard with a desk stand for standing placement. If necessary, the desk stand can be removed and replaced by a wall bracket. This monitor is equipped with screw holes on the back for a VESA 100 x 100mm bracket.
Specifications
| Model | MW3222-V |
| Display | |
| Display type | LED backlight |
| Screen size | 21.5" |
| Pixel Pitch (mm) | 0.248× 0.248 |
| Maximum resolution | 1080×1920 |
| Brightness | 250 cd/m 2 |
| Contrast | 1000:1 |
| Response time | 5 ms |
| Colour | 16.7 million |
| Viewing angle | Horizontal 170°, Vertical 160° |
| Interface | |
| Vga | 1 |
| hdmi | 1 |
| Audio input | 1 |
| Audio | |
| Audio input | 1, 3.5mm mini jack |
| Loudspeaker | 2x2W |
| Osd | |
| Multi-language | 11 (English, French, German, Italian, Simplified Chinese, Traditional Chinese, Korean, Japanese, Spanish, Portuguese, Russian) |
| Assembly | |
| VESA | 100mm x 100mm |
| General | |
| Power supply | DC 12V, 2A |
| Consumption |
<20 W(on) <0.5 W(Standby) |
| Operating temperature | 0°C ~ 40°C |
| Humidity during use | 20% ~ 85% (no condensation) |
| Temperature of storage | -20 °C ~ 60 °C |
| Storage humidity | 0% ~ 90% (no condensation) |
| Dimension (W×H×D) |
508.02mm × 307.9mm × 40mm (No Pedestal) 508.02mm × 392.87mm ×200mm (With Pedestal) |
| Weight: | Net Weight: 2.3Kg Gross Weight: 3.2Kg |
