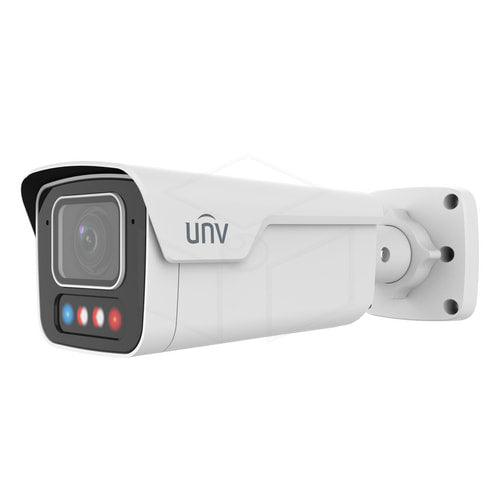

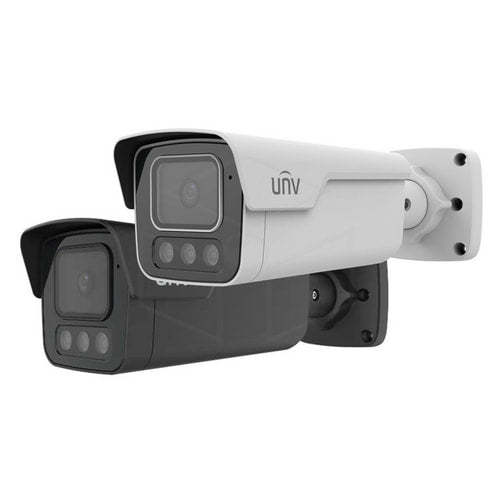

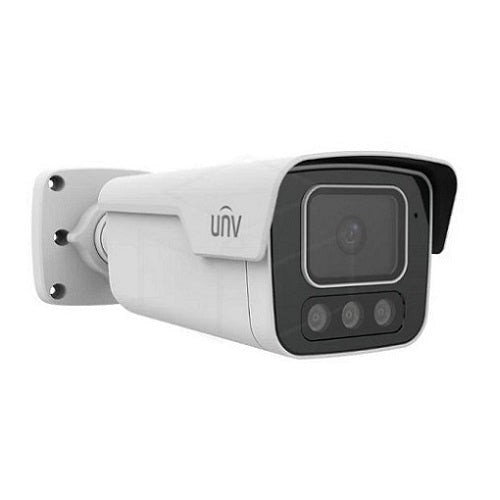

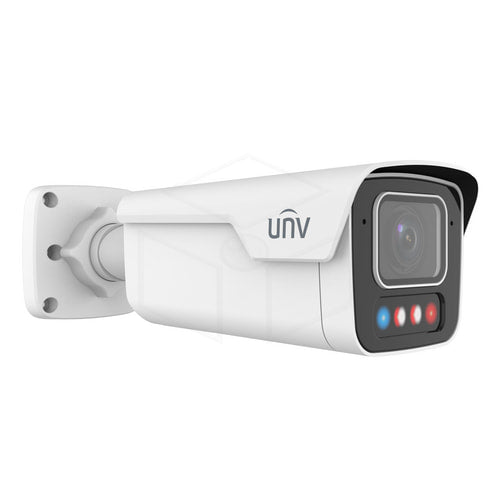

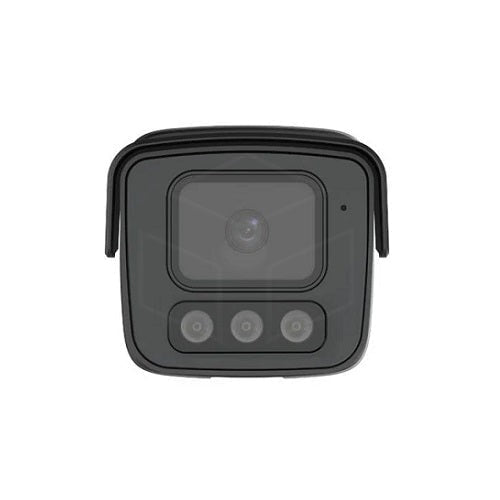

Uniview Tri-Guard 2.0 8MP 4K UltraHD bullet camera (IPC2B18SS-ADF28KMC-I1)
Product Description
Uniview's Tri-Guard is here! Enjoy crisp, full-color images 24/7 with the white lights or classic black-and-white with the 40m IR range. There is also a newly added blue and red deterrent light function for even better nighttime security. With smart AI functions and flexible active deterrence features, the Triguard 2.0 takes this powerful Uniview trifecta to the next level.
More features
4K HD RESOLUTION
The IPC2B18SS-ADF28KMC-I1 captures video at a resolution of up to 4K @ 30 FPS, which is 3840 x 2160 pixels. Every pixel added to your camera's image provides higher quality and more detail. So, with 4K, you get a sharper, cleaner, and more detailed image.
2.8 mm Fixed Lens
The IPC2B18SS-ADF28KMC-I1 has a 2.8 mm fixed lens. This means it is locked at one length: it cannot optically zoom in and out. The longer the focal length on a fixed-lens camera, the more it is zoomed in and the more detail you can see up close. But the shorter the focal length, the wider the field of view and the larger the area your surveillance will cover.
The IPC2B18SS-ADF28KMC-I1 has a horizontal field of view of 106.5°.
24/7 Color Illumination
Say goodbye to low-contrast black-and-white surveillance footage. The IPC2B18SS-ADF28KMC-I1 supports built-in floodlights that allow the camera to capture beautiful and sharp color images 24/7. This not only looks great but also provides brighter and more reliable images than your standard IR camera.
Active Deterrence
The IPC2B18SS-ADF28KMC-I1 supports active deterrence features with built-in floodlights and speakers to draw attention to itself with visual and audible warnings. With this feature, you can quickly let potential intruders know they are being recorded when an intelligent event is triggered. This is a great way to add an extra layer of security to your surveillance system.
Artificial Intelligence
With artificial intelligence, the IPC2B18SS-ADF28KMC-I1 adds more reliability to your surveillance system, as you don't have to worry about false alarms. This camera can distinguish between important motion and non-important motion and can trigger events accordingly. Save recording space, prevent false alarms, and make your mobile push notifications actually useful.
2-Way Audio
The IPC2B18SS-ADF28KMC-I1 has a built-in microphone and speaker, allowing you to easily communicate with family members, pets, colleagues, or even intruders. The clear, crisp 2-way audio makes this camera perfect for access points to your home or business, baby or pet monitors, and much more!
NDAA Compliant
This model complies with the NDAA (National Defense Authorization Act), meaning it is secure to use and install on US government properties. It is built with trusted and reliable technology at its core.
Up to 40M Night Vision IR Range
When the sun goes down or the lights go out, this camera switches on its own built-in infrared LED lights. These lights, which are invisible to the human eye, ensure that the camera can continue to operate and record video 24/7, day and night. And because the IR range covers up to 40 meters, you won't miss anything that happens on your camera's feeds, even if it happens in pitch-black darkness.
PLUG & PLAY
If you are building a new system from our Uniview cameras, installation is incredibly simple with our Uniview line of POE NVRs. Simply connect the camera to the back of the Uniview NVR and you will instantly have video on the recorder's HDMI interface. You can also view and manage the NVR via free desktop and mobile apps, such as EZView and EZStation.
ONVIF Compatibility
If you want to add this camera to an already established security system, that is no problem. This camera complies with the protocols set by the Open Network Video Interface Forum (ONVIF). This means that as long as your current recorder is ONVIF-compatible, you can set up this camera with your current system.
Remote Access
The IPC2B18SS-ADF28KMC-I1 is part of our Uniview line of products. As such, it is packed with features that would please a power user, but it is simple enough to operate for a beginner. View and manage your cameras and recorders easily from anywhere in the world with the free mobile and desktop applications. For the experienced user, these apps give you the ability to adjust advanced settings directly. For the beginner, you can use the apps to easily view live feeds and play back recorded video. Whatever you need to achieve, it's all at your fingertips.
Specifications
| Camera | |
| Model | IPC2B18SS-ADF28KMC-I1 |
| Maximum resolution | 8 MP |
| Sensor | 1/2.8" CMOS |
| Minimum illumination | Color: 0.001 Lux (F1.0, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with automatic switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | >56 dB |
| WDR | 130 dB |
| Lens | |
| Focal length | 2.8 mm |
| Iris type | Fixed |
| Iris | F1.0 |
| Field of view (H) | 106.5° |
| Field of view (V) | 57.9° |
| Field of view (D) | 132° |
| DORI | |
| DORI distance (lens) | 2.8 mm |
| DORI distance (detect) | 86.9 m (285.1 ft.) |
| DORI distance (observe) | 34.8 m (114.2 ft.) |
| DORI distance (recognize) | 17.4 m (57.1 ft.) |
| DORI distance (identify) | 8.7 m (28.5 ft.) |
| Illuminator | |
| Supplemental light | Dual light |
| Illumination distance (IR) | IR 40 m (131.2 ft), warm light 40 m (131.2 ft) |
| Illumination distance (warm light) | IR 40 m (131.2 ft), warm light 40 m (131.2 ft) |
| IR on/off control | Auto/Manual |
| Wavelength | 850 nm |
| Light on/off switch | Auto/Manual |
| Video | |
| Video compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame rate | Main stream: 8 MP (3840 × 2160), max. 30 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Video bit rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy mask | Up to 4 areas |
| ROI | Support |
| Video stream | Triple streams |
| Image | |
| White balance | Auto, Outdoor, Fine-tuning, Sodium lamp, Locked, Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Auto Scene Matching (ASM) | Support (WDR only) |
| Flip | Normal, Vertical, Horizontal, 180°, 90° Clockwise, 90° Counter-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Intelligent | |
| Smart intrusion prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (supports false alarm filtering and classification of persons, non-motorized vehicles, and vehicles) |
| People counting | Support for people flow counting and crowd density detection. |
| Attribute collection | SIP with color restoration |
| Events | |
| Basic detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object left behind |
| General function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication, alarm input, alarm output |
| Audio | |
| Audio compression | G.711U, G.711A |
| Audio bit rate | 64 Kbps |
| Two-way audio | Support |
| Suppression | Support |
| Sampling rate | 8 kHz |
| Storage | |
| Edge storage | MicroSD card up to 512 GB |
| Network storage | ANR, NAS (NFS) |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible integration | API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| User/Host | Up to 32 users. 3 levels: administrator, normal user, and operator. |
| Security | Password protection, strong password, HTTPS encryption, export of operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE, and digest authentication for ONVIF |
| Client | EZStation, app |
| Web browser | Live view requires plug-in: IE 10+, Chrome 45+, Firefox 52+, Edge 79+. Live view without plug-in: Chrome 57+, Firefox 58+, Edge 16+. |
| Interface | |
| Audio input/output | 1 Input: impedance 35 kΩ, amplitude 2 V [pp], 1 Output: impedance 600 Ω, amplitude 2 V [pp] |
| Alarm I/O | 1/1 |
| Serial port | N/A |
| Built-in microphone | Support |
| Built-in speaker | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR Part 15 B) |
| Safety | CE-LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| General | |
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power consumption | Max. 10.0 W |
| Power interface | Ø5.5 mm coaxial power plug |
| Dimensions | 269 mm × 96 mm × 82 mm (10.6" × 3.8" × 3.2") (L × W × H) |
| Weight | 0.97 kg (2.14 lb) |
| Material | Metal + plastic |
| Operating environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge protection | 4 kV |
| Reset button | Support |
| Web client language | 20 languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
