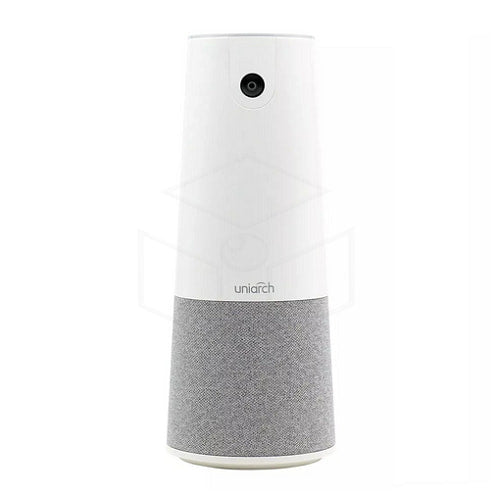

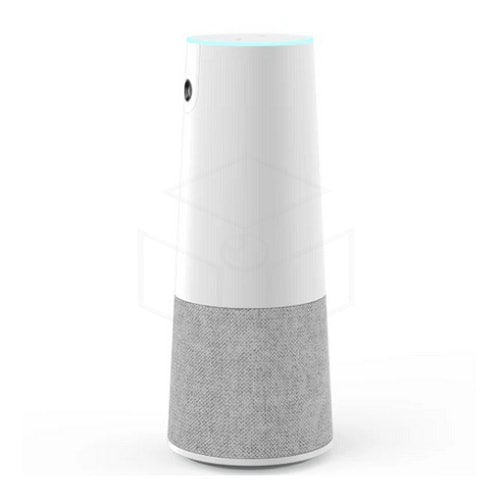

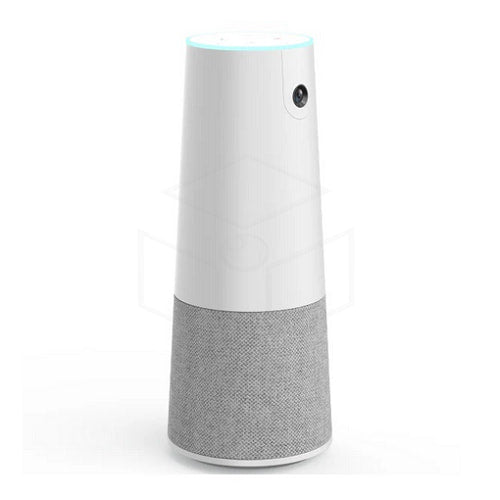

Uniview IoT-Unear A30T All-in-one Video Conference Camera
Product Description
The IoT-Unear A30T is a desktop all-in-one USB video conferencing device for small to medium-sized teams.
This product features a 100° ultra-wide horizontal view and supports full HD video calls. The built-in 4-element omnidirectional microphone array and custom broadband speaker optimized for the human voice enable 5-meter full-duplex two-way communication and a stable HD audio and video conferencing experience. The IoT-Unear A30T organizes a camera, microphones, and a speaker into a single device.
Features such as USB plug & play and general compatibility with leading online conferencing platforms make the IoT-Unear A30T an excellent choice for meeting rooms with 1-8 people and an online efficiency booster for collaboration for all business teams.
Specifications
| Features | |
| Wide-angle camera | 100° ultra-wide angle |
| Non-distortion | Supported |
| High-quality broadband speaker | Supported |
| Clear uninterrupted full-duplex communication | Supported |
| Image specifications | |
| Self-adaptive skin tone enhancement | Supported |
| Lens distortion correction | Supported |
| Anti-flicker | Supported |
| Automatic exposure | Supported |
| Automatic white balance | Supported |
| 3D noise reduction | Supported |
| Video specifications | |
| Video output | 1080P@30fps |
| Aspect ratio | 16:9 |
| UVC compatibility | 1.1 / 1.5 |
| USB 2.0 transmission | MJPEG and H.264 |
| Camera specifications | |
| Aperture | F / 2.4 |
| Pixel | 2 MP |
| Image | 1080p |
| FOV(H) | 104° |
| FOV(V) | 62° |
| TV distortion | <1% |
| Audio specifications | |
| Maximum background noise suppression | 24dB |
| Full-duplex | When the acoustic intensity gap between the near-end and far-end is less than 50dB |
| Echo cancellation | Echo cancellation ≥30dB |
| AGC | Automatic gain control * within a 5-meter range |
| Reverberation suppression | RT60<1s |
| AI-based speaker detection | Supported |
| AI-based noise reduction | Supported |
| Microphone specifications | |
| Microphones | 4-element MEMS microphone, 360° omnidirectional array |
| Sensitivity | -32dB FS 94dB SPL @1KHZ |
| SNR | 64dBA |
| Effective voice pickup range | 5 meters (in meeting rooms with low SNR, the actual voice pickup radius may be 5 meters or less) |
| Speaker specifications | |
| Peak power | 5W |
| Rated output power | 3W |
| Speaker frequency response | 20Hz ~ 20kHz |
| Speaker volume | 90dB SPL @0dB 1kHz at 0.5 m |
| THD | <=1% |
| Configuration requirements | |
| PC Windows or Linux, Mac OS with USB connection | Supported |
| Input / output | |
| USB power supply | 5V/500mA |
| Data transfer via USB Type-C | Supported |
| USB 2.0 | Supported |
| Installation method | |
| Desktop | Supported |
| Appearance color | |
| White | Supported |
| Weight | |
| Net weight | 618 grams |
| Gross weight | 1260 grams |
| Dimensions | |
| Product dimensions | 270mm (H) * 110mm (Φ) |
| Packaging dimensions | 335mm (L) * 145mm (W) * 125mm (H) |
