Uniview Video Intercom Kit (KIT/201S/372S/NSW2020)
Regular price
€450,00
Tax included.
Shipping calculated at checkout.
Product Description

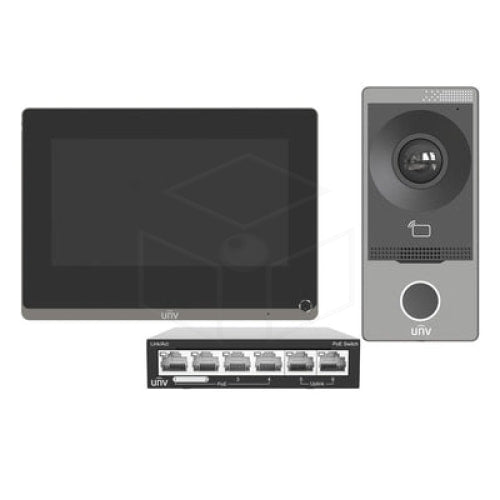

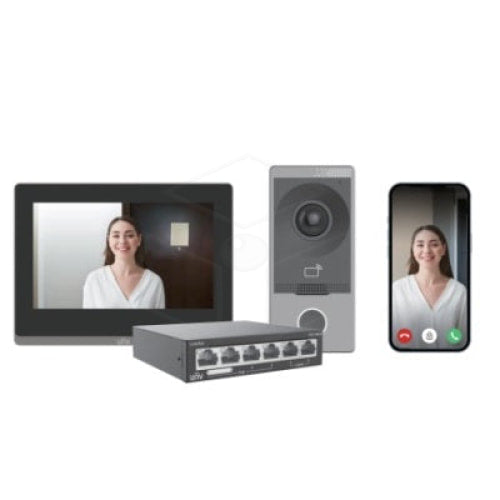

Uniview video intercom kit consists of indoor monitor (OEI-372S-HW) and outdoor station (OEU-201S-HMK-W) and PoE switch with 4PoE ports and 2 network ports. The kit supports calls to indoor monitor and to the app, and also supports remote door/gate opening. The outdoor station has an IC card reader that supports 13.56MHz credentials. The outdoor station has a 2MP camera and infrared.
Specifications
| Model | KIT/201S/372S/NSW2020 |
| Set dimensions (L×W×H) | 268mm*213mm*180mm |
| Weight of the kit | 2.005 kg |
| Model | OEU-201S-HMK-W |
| Power supply | DC12V ±25%, PoE power supply |
| Card capacity | 10000 |
| Operating system | Linux |
| Enlightener | IR light (adaptive) |
| WDR | Support |
| field of view | Horizontal: 124.3° Vertical: 67.5° Diagonal: 147.2° |
| Energy consumption | < 10W |
| Volume adjustment | Support |
| Sound quality | Noise suppression, echo cancellation, automatic gain control |
| Audio input | Built-in microphone |
| Audio output | Built-in speaker |
| Protocol | Uniview private protocol |
| Audio compression format | PCM, G711, MP3 |
| Audio compression bit rate | 128 kbps |
| Knob | Bell button |
| Degree of protection | IP65 (Apply waterproof glue to the gap between the device and the wall. Refer to the corresponding quick start guide for details.) IK08 |
| Weight | 0.267 kg |
| Mount method | Wall mounting, flush mounting |
| Couple | Power supply*1, network interface*1, RS485*1, door lock interface*2, IO input*4 |
| Communication mode | 100Mbps network interface, supports IEEE802.3af; Wifi |
| Dimensions (L×H×W) | 79mm*171mm*34mm |
| Business environment | - 30°C to 60°C, 10% to 90% RH non-condensing, outdoor |
| Model | OEI-372S-HW |
| Power supply | DC12V ±25%, PoE power supply |
| Screen resolution | 1024 x 600 |
| Show screen | 7-inch ultra-thin TFT LCD touch screen |
| Operating system | Linux |
| Sound quality | Noise suppression, echo cancellation, automatic gain control |
| Audio input | Built-in microphone |
| Audio output | Built-in speaker |
| Audio compression format | MP3, G711 |
| Audio compression bit rate | 128 kbps |
| Protocol | Uniview private protocol |
| TF card | 1 x 32G TF card, capable of storing 100 live video snapshots, 200 call records and call snapshots. |
| Energy consumption | < 10W |
| Weight | 0.377 kg |
| Couple | Power supply*1, Network interface*1, RS485*1, IO output*2, IO input*8, TF card slot*1 |
| Communication mode | 100Mbps network interface, supports IEEE802.3af; Wifi |
| Dimensions (L×H×W) | 193.2mm * 143.4mm * 25mm |
| Business environment | - 10°C to 55°C, 10% to 90% RH, non-condensing, indoor |
| Model | NSW2020-6T-POE-IN |
| Service port | 6 x 100M copper port (RJ45), including 4 x 100M copper port (supports PoE power) |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at |
| Switching capacity | 1.2 Gbps |
| Parcel forwarding rate | 0.90Mpps |
| Packet buffer | 448 kbit |
| MAC | 1K |
| Dimensions (W×D×H) | 107*99*25mm |
| Weight | 0.19 kg |
| Current | DC 48V/51V |
| PoE | Supports IEEE802.3af and IEEE802.3at |
| PoE power mode | Mode B, 4/5+, 7/8- |
| PoE power | Maximum total power: 60 W Maximum PoE power for single port: 30W |
| Priority port | 1 to 2 |
| Mount method | Desk holder, wall holder |
| Fan | Without fan |
| Operating temperature | 0°C to 40°C |
| Control humidity | 10% to 90% RH, non-condensing |
| Store temperature | -40°C to 70°C |
| Storage humidity | 5% to 90% RH, non-condensing |
