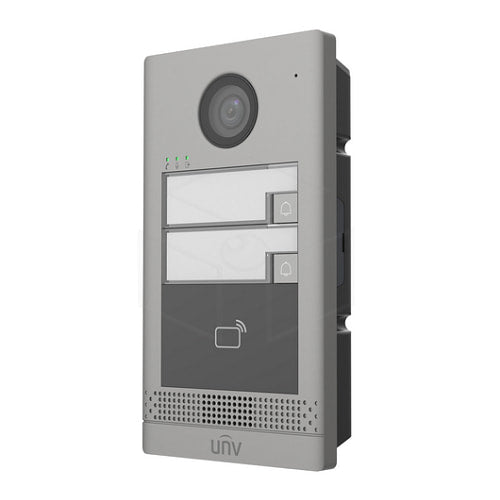

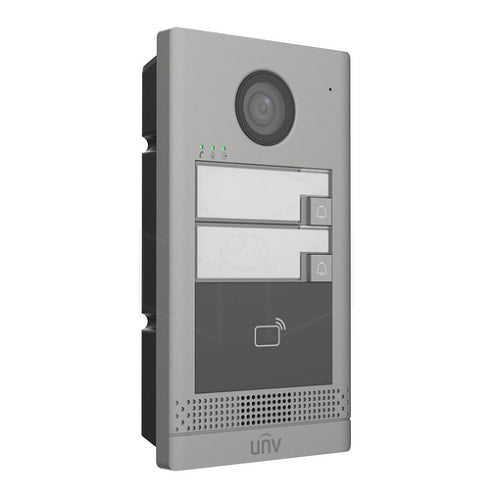

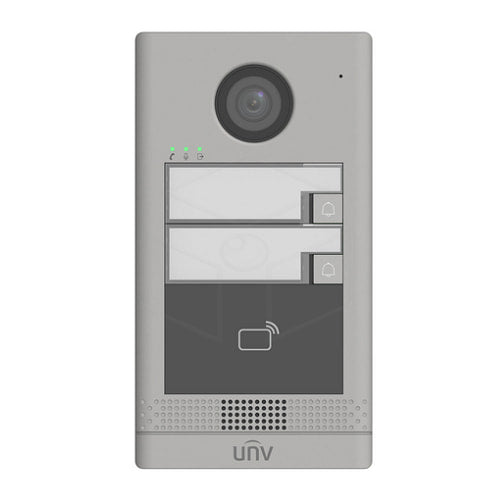

Uniview Villa Door Station (IC card, 2 keypads) (OEU-202S-HMK-2)
Regular price
€329,00
Tax included.
Shipping calculated at checkout.
Product Description
The UNV Villa Door Station offers optional installation and supports power output control via web interface. It allows TF card storage expansion and low temperature operation with built-in heater module. Key features include batch configuration, indoor station call and intercom, video surveillance, security and tamper alarms, and built-in IC card reader for enhanced access control.
Specifications
| Specification index | OEU-202S-HMK2 |
| Card capacity | 10000 |
| Maximum connected indoor station | 20 |
| WDR | Support DWDR |
| Protocol | Private protocol |
| Knob | 2 x Call button |
| Field of view | Horizontal: 106.9° Vertical: 56.9° Diagonal: 127.9° |
| Power consumption | PoE: 6.48W DC12V: 5.35W |
| Adjust volume | Support |
| Audio compression bit rate | 128Kbps |
| Audio output | 1 x Built-in speaker |
| Audio input | 1 x Built-in omnidirectional microphone |
| Audio quality | Noise suppression, echo cancellation, AGC |
| Protection level | IP65 (Apply waterproof glue to the gap between the device and the wall. See the accompanying quick guide for more information) IK08 |
| Weight | 675 grams |
| Mounting method | Wall mounting |
| Interface | Power supply*1, Network port*1, RS485*1, Wiegand*1, IO input*4, Door lock*2 (support electric lock/door magnet), Tamper button*1 |
| Network | 100Mbps network port, supports IEEE802.3af PoE power supply |
| Dimensions (L x W x H) | 96mm*176mm*33mm |
| Power supply | DC12V ±25%, IEEE802.3af PoE power supply |
| Business environment | -40°C to 60°C, 10% to 90%, non-condensing, outdoor |
| Operating system | Linux |
| Enlightener | IR light (adaptive) |
